16

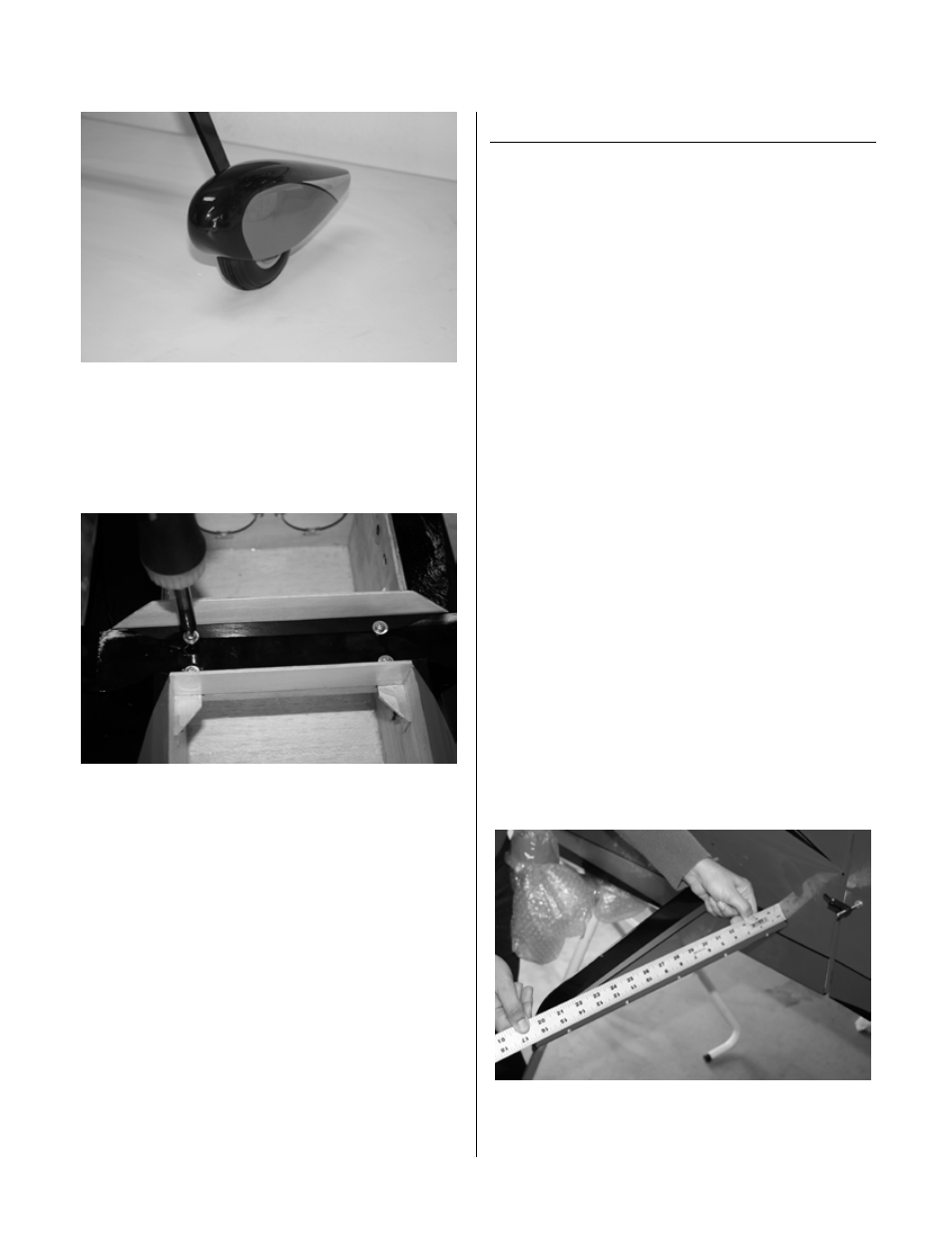

 Step 5
The landing gear is fully assembled
and ready to install in the fuselage. Use
threadlock on bolts and complete the
installation.
Horizontal Stab Installation
Required Parts
• Stab assembly
Required Tools and Adhesives
• Thin and medium CA
• Acetone
• Hobby knife
• 32 - 36-inch Ruler
• Marker
Note : Make sure the horizontal
stab is completely centered and
square. If you feel the need to
make measurements 5 times
or more, please do so. Once
the stab is glued, modifications
would be extremely difficult.
 Step 1
Three accurate measurements are required
to ensure the stab is placed correctly.
1. The distance from the tip of the stab to the
fuselage should be equal on both sides.
2. The distance from the tip of the stab to
behind the turtle deck should be equal.
3. Insert the bottom wing and check stab
alignment by looking from the aft of the
aircraft forward.
