Hangar 9 Beast 100cc ARF - Manual (Page 53)

53
Required Parts
• Deluxe switch harness (JRPA001)
• (1) Spekrum 2S, 1350mAh Li-Po with
Spektrum regulator (VR5203)
• Ignition module
• Flex Guard 1/4-inch split convoluted
tubing for spark plug wire protection
• Sticky back Velcro
• Hook and loop
Required Tools and Adhesives
• Tie wraps
• Hobby knife
• Masking tape
• Medium CA • Pin wise
• 1/4-inch Du-Bro foam

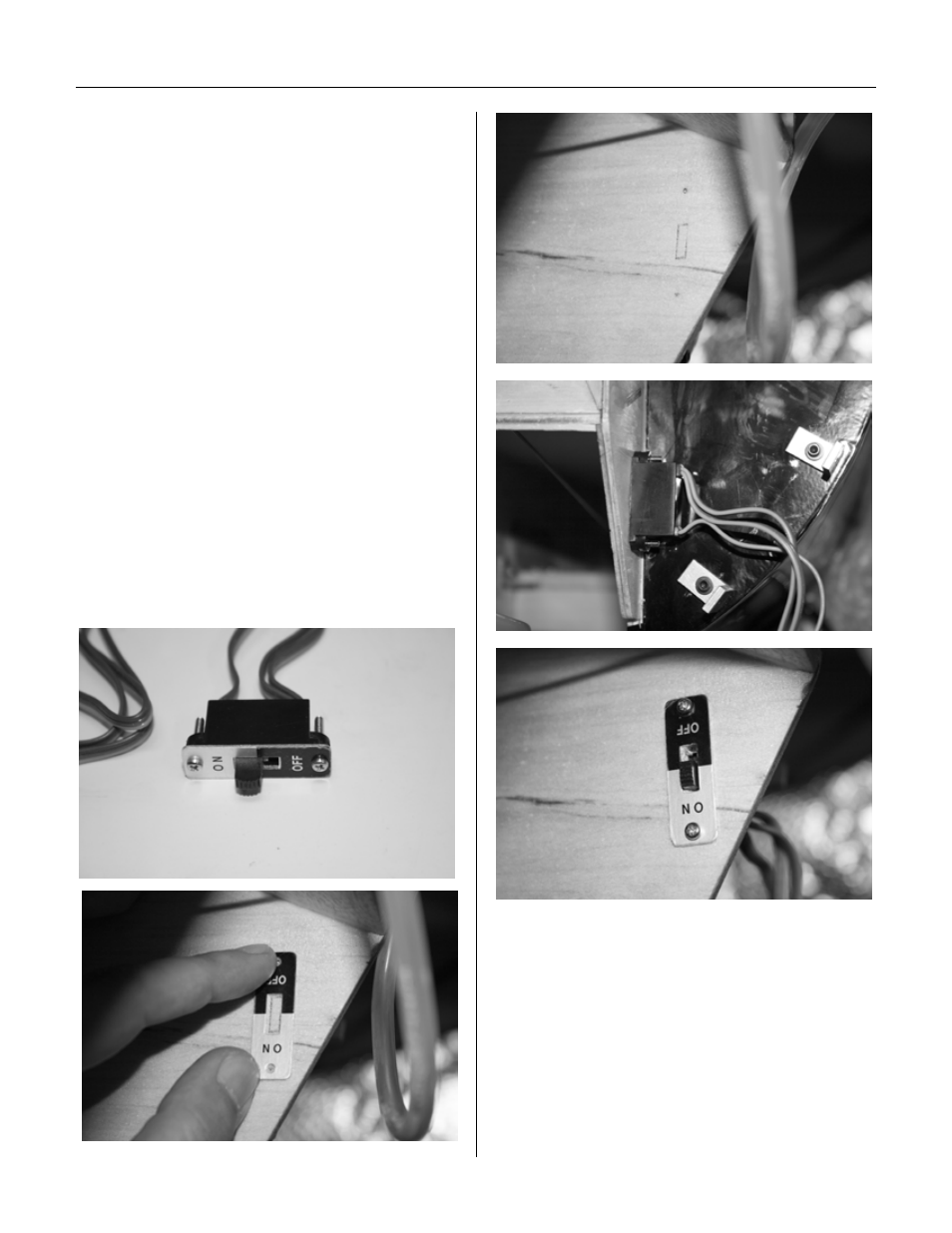

 Step 1
Mark the switch location on the side of bottom
of the fuse below the engine box. Remove
the plywood and make the pilot holes for
screws using a pin wise and 1/16-inch drill bit.
Complete the installation.
 Step 2
Prepare the ignition module by following
the same method for receiver preparation/
installation.
Use 1/4-inch split flex guard and tie wraps to
protect the spark plug wire and complete the
installation by securing the ignition with hook
and loop straps.
Ignition and Switch Installation
