Manual Steering
75
NOTE: On tractors with power steering:
• Loosen the lower nut and bolt of the steering shaft
coupler using a pair of 1/2” wrenches.
• Remove the top nut and bolt from the steering
shaft coupler. See Figure 6A.16.
NOTE: It may be necessary to drive the bolt out with a
punch.
6. Remove the two shoulder screws that hold the steer-
ing shaft collar to the tilt steering bracket using a 3/8”
wrench. See Figure 6A.17.
7. Lift the steering collar off of the tractor.
8. Remove and discard the cotter pin that secures the
tilt steering dampener. See Figure 6A.18.

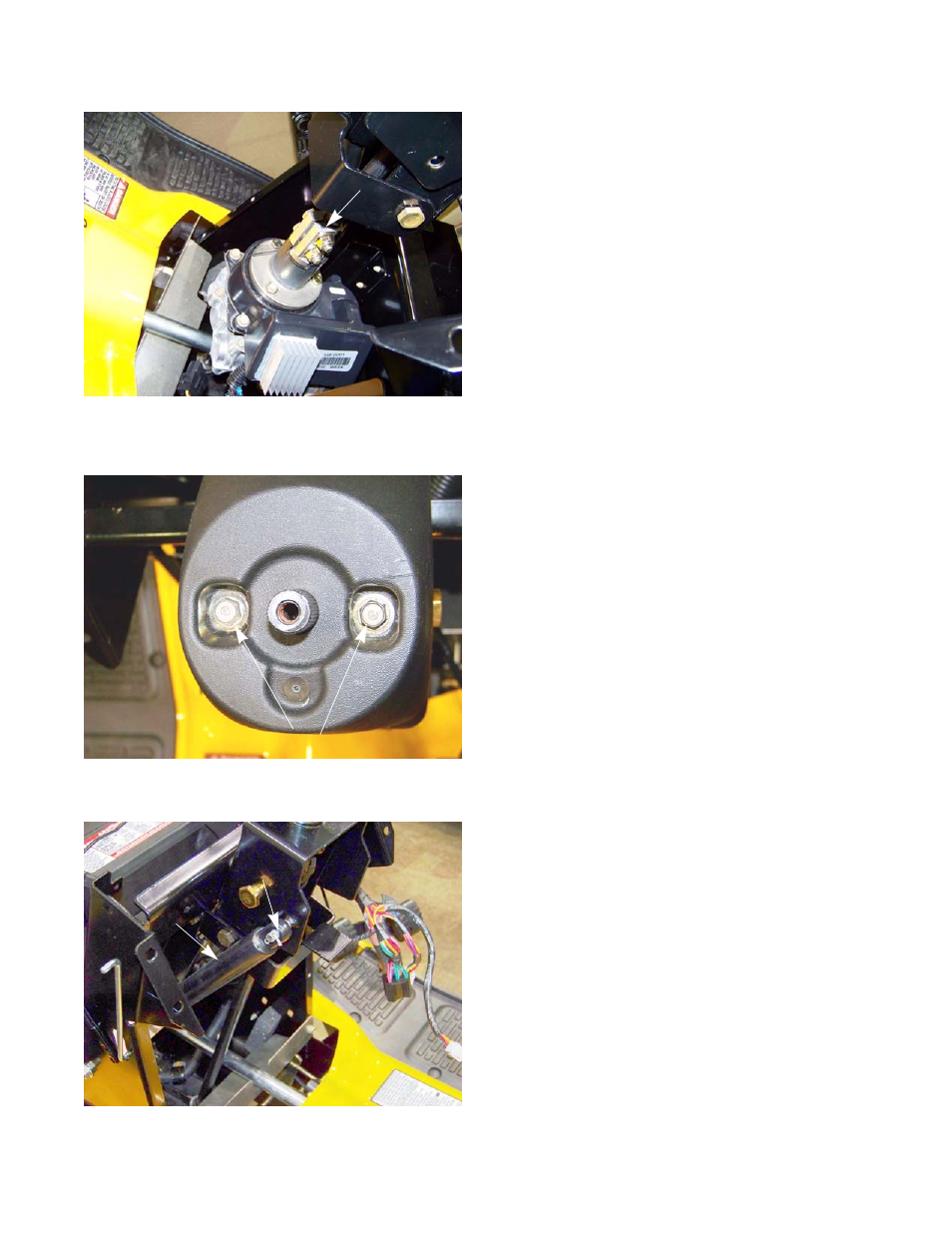

Figure 6A.16
Steering shaft coupler
Figure 6A.17
Shoulder screws
Figure 6A.18
Steering dampener
Cotter pin
