Engine Related Parts
11
Choke and Throttle levers and cables
To remove/replace levers and cables:
NOTE: The choke and throttle cables must be removed
with the lever assemblies before they can be sepa-
rated and replaced.
1. Remove the dash by following the procedures
described in Chapter 4: Body.
2. Remove the three screws that secure the control
lever assemblies in place using a 3/8” wrench.
See Figure 2.15.
3. Rotate the levers while pulling the assemblies out of
the dash.
4. Remove the cables:
4a. Squeeze in the ears on the cable jacket fittings.
See Figure 2.16.
4b. Slide the cable jackets out of the bracket.
4c. Un-hook the cables from the levers.
NOTE: If just replacing the cables, install the cables by fol-
low steps 1 - 4 in reverse order.
5. Remove the screw that holds the lever retainer to the
bracket using a 5/16” wrench. See Figure 2.17.

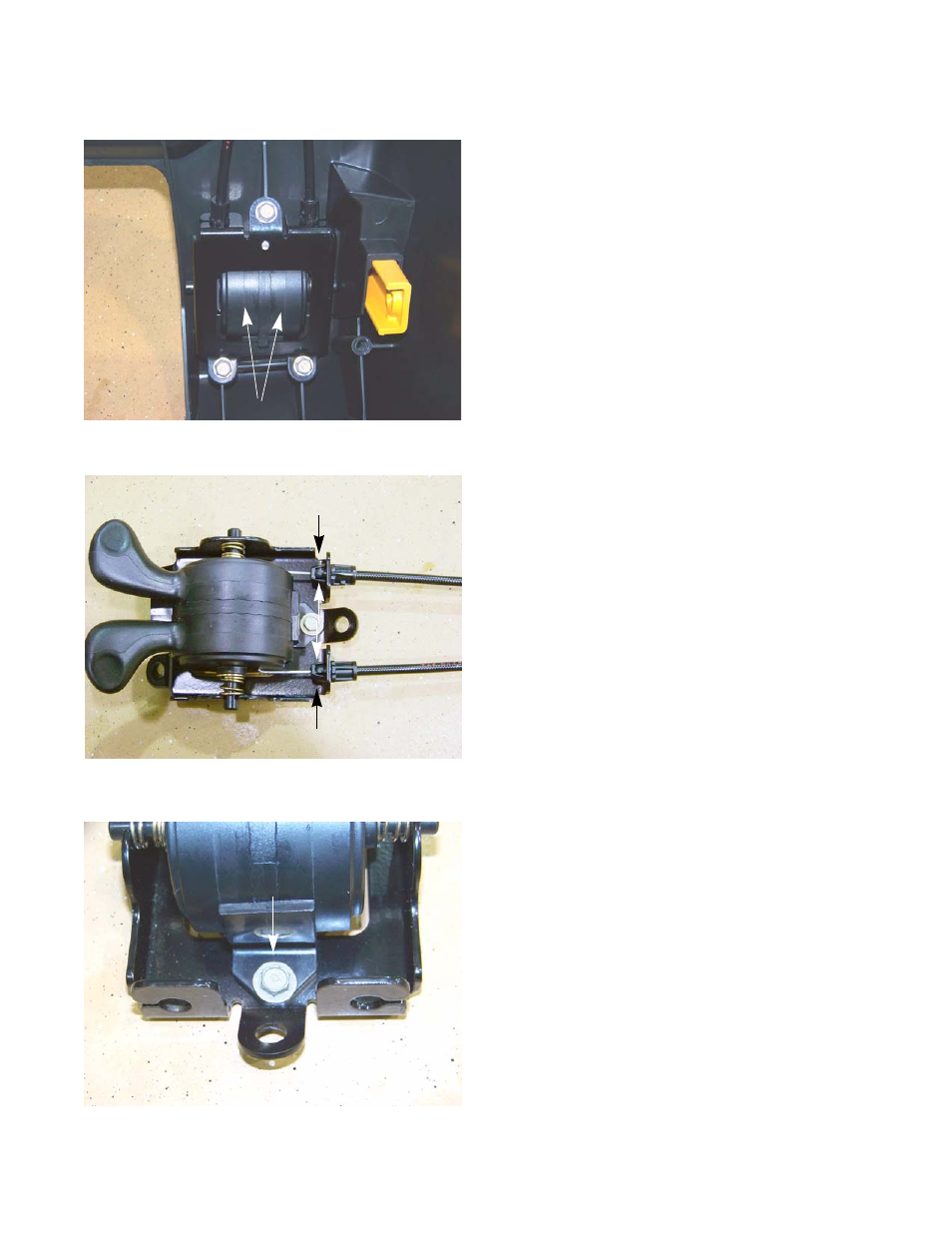

Figure 2.15
Control lever assemblies
Figure 2.16
Figure 2.17
Screw
