Body
35
Dash Panel
The dash panel may be removed to provide access to the
tilt steering column, power steering, or to replace the dash
or dash support brackets.
1. Remove the steering wheel
1a. Remove the cover from the center of the steer-
ing wheel. See Figure 4.26.
1b. Remove the bolt that holds the steering wheel
to the steering shaft using a 1/2” wrench.
1c. Lift the steering wheel off of the shaft.
2. Disconnect the negative battery cable.
3. Remove the bowtie clip that holds the control rod to
the cruise/parking brake lever. See Figure 4.27.
4. Slide the control rod out of the cruise/parking brake
lever.
.
5. Disconnect the throttle cable from the control panel
on the engine. See Figure 4.28.
NOTE: Mark the cable and the hole it goes into to ensure it
goes back into the proper hole on re-assembly.
6. Disconnect the choke cable from the control panel on
the engine.
NOTE: Mark the cable and the hole it goes into to ensure it
goes back into the proper hole on re-assembly.

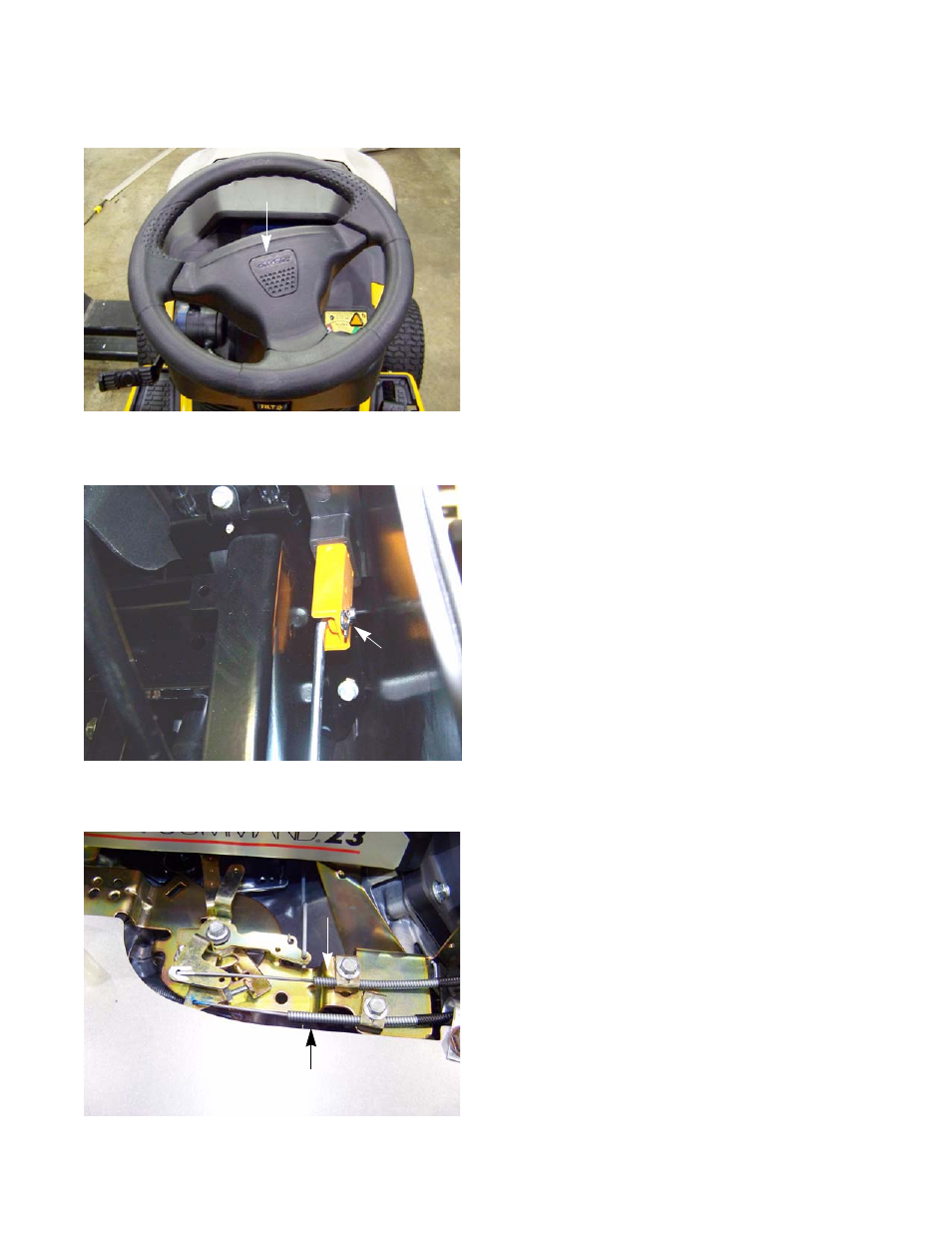

Figure 4.26
Cover
Figure 4.27
Bow tie clip
Figure 4.28
Choke cable
Throttle cable
