Electric pto clutch – Cub Cadet 2000 Series User Manual
Page 180
2000 Series Tractors
174
Electric PTO clutch
To remove/replace the PTO clutch:
1.
Remove the hood by following the procedures
described in Chapter 4: Body.
2.
Remove the PTO belt by following the procedures
described in the PTO belt section of this chapter.
3.
Disconnect the harness from the PTO clutch.
See Figure 8.51.
NOTE: Some of the GTX2154LE tractors have a
diode jumper between the harness and the
PTO clutch. See Figure 8.52.
NOTE: When the PTO clutch dis-engages, it can
produce voltage spikes. The diode can help
minimize these spikes.

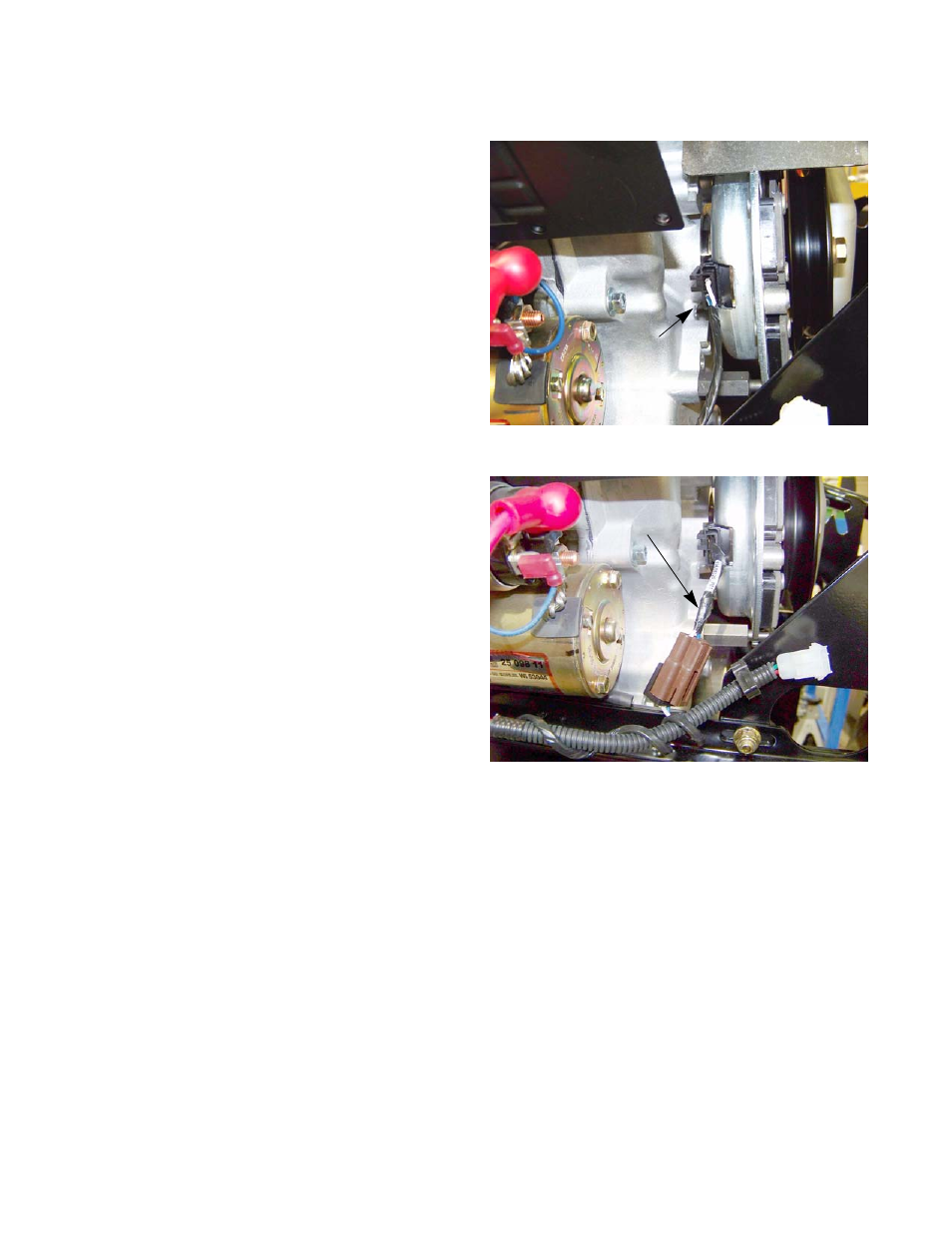

Figure 8.51
PTO clutch
connector
Figure 8.52
Diode jumper
