2000 Series Tractors
48
Forward drive pedal shaft
To remove/replace the forward drive pedal shaft:
1. Remove the deck as described in Chapter 8: Decks
and Lift Systems.
2. Remove the screw that holds the forward drive
pedal to the pedal shaft using a 9/16” wrench.
See Figure 5.21.
3. Unhook the forward drive pedal and remove it.
4. Remove the E-ring and hex bushing from each end
of the drive pedal shaft. See Figure 5.22.
NOTE: The right side of the pedal shaft will have
shim washers between the E-ring and the
bushing.
5. Slide the pedal shaft towards the left enough to gain
access to the bow tie clip on the drive control rod.
See Figure 5.23.
6. Disconnect the drive control rod from the drive
pedal shaft’s bell crank by removing the bow tie clip.
NOTE: There is a spring that is attached to the drive
control rod that is also held in place by the
bow tie clip. See Figure 5.23.

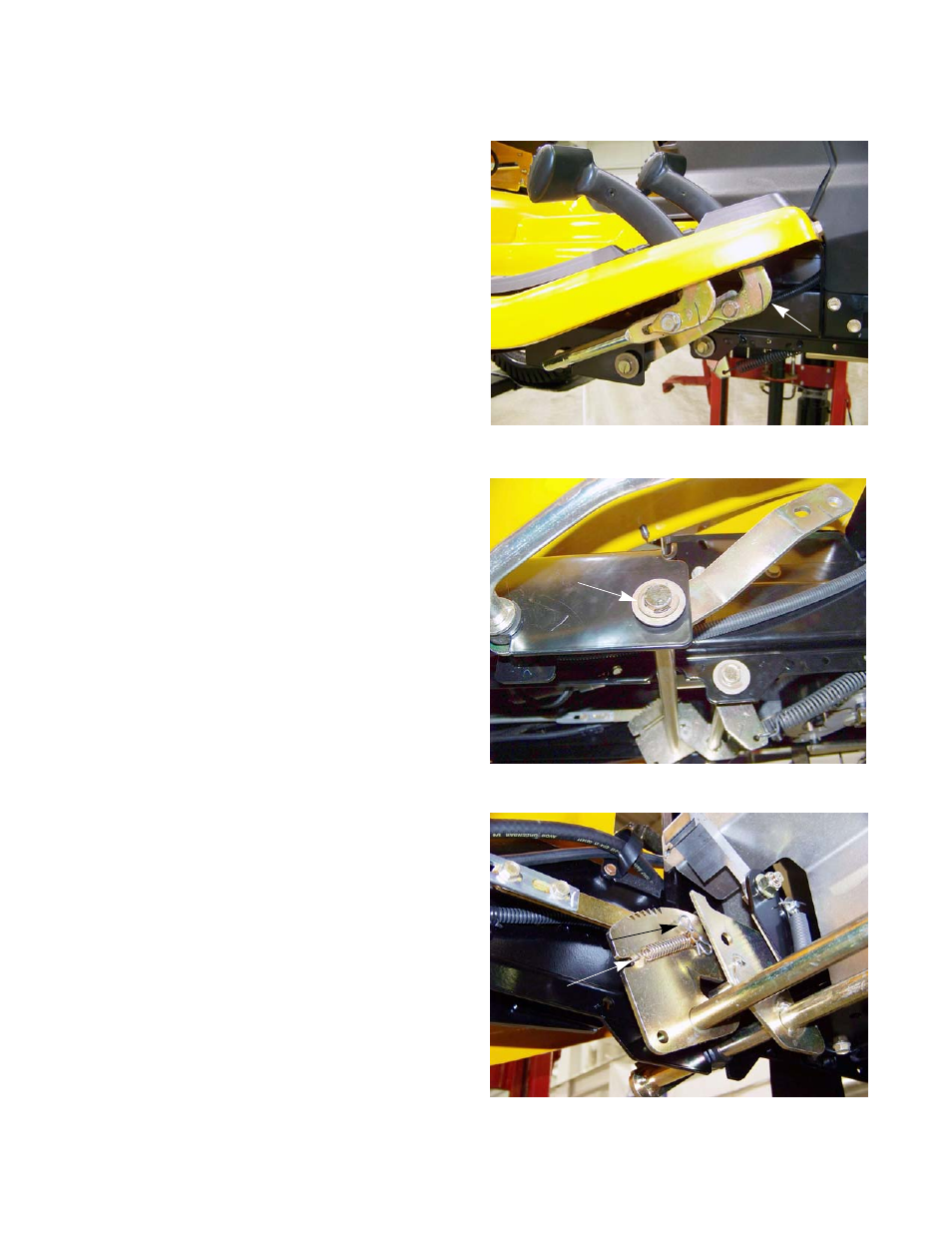

Figure 5.21
Forward drive pedal
Figure 5.22
E-ring
Figure 5.23
Bow tie clip
Spring
