Brakes
21
Brake shaft assembly
To remove/replace the brake shaft:
1. Remove the cutting deck by following the procedures
described in Chapter 8: Cutting Decks and Lift shaft.
2. Lift and safely support the tractor.
3. Remove the forward drive pedal shaft by following
the procedures described in Chapter 5: Drive Sys-
tem.
4. Disconnect the brake pedal by removing the two nuts
and bolts that attach it to the brake pedal shaft using
a pair of 1/2” wrenches. See Figure 3.10.
5. Disconnect the brake shaft return spring.
See Figure 3.11.
6. Remove the E-ring and washer(s) from the right side
of the brake shaft. See Figure 3.12.
7. Remove the hex bushings from both ends of the
brake pedal shaft.

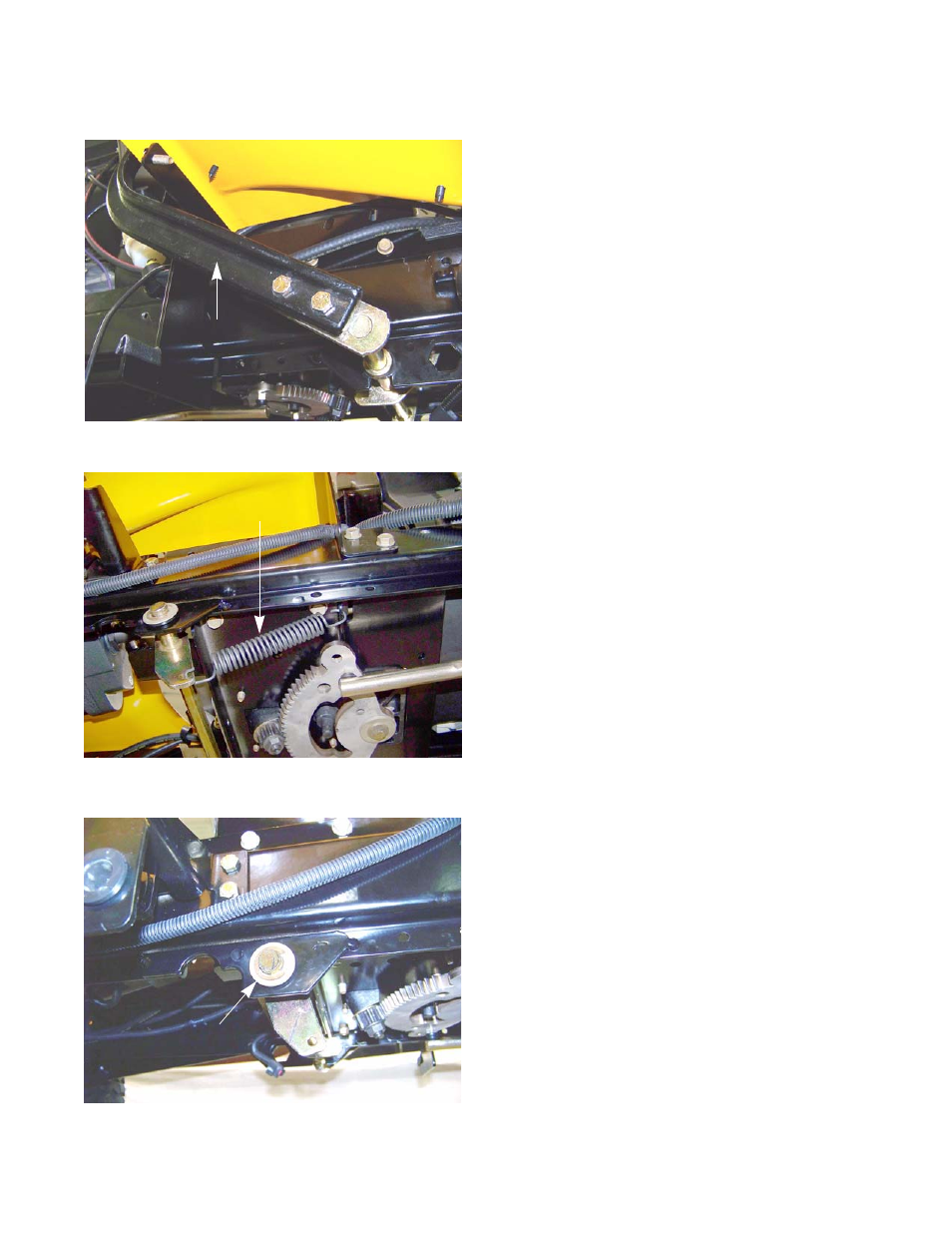

Figure 3.10
Brake pedal
Figure 3.11
Brake shaft return spring
Figure 3.12
E-ring
