2000 Series Tractors
26
4. The hood hinges on a pair of shoulder bolts that fit
into slots in the hood bracket.
5. The hinge travel is limited by a tab that fits into a
channel in the hood bracket.
6. Open the hood far enough to align the tabs with the
slots, then lift the hood off of the tractor.
See Figure 4.3.
Hood components: side vent removal
1. Carefully pry the vent free of the lock tabs.
2. Pull the vent out of the hood assembly.
3. Install the hood side vent by pressing it into the
hood-side opening until the lock tabs click into
place, securing the vent.

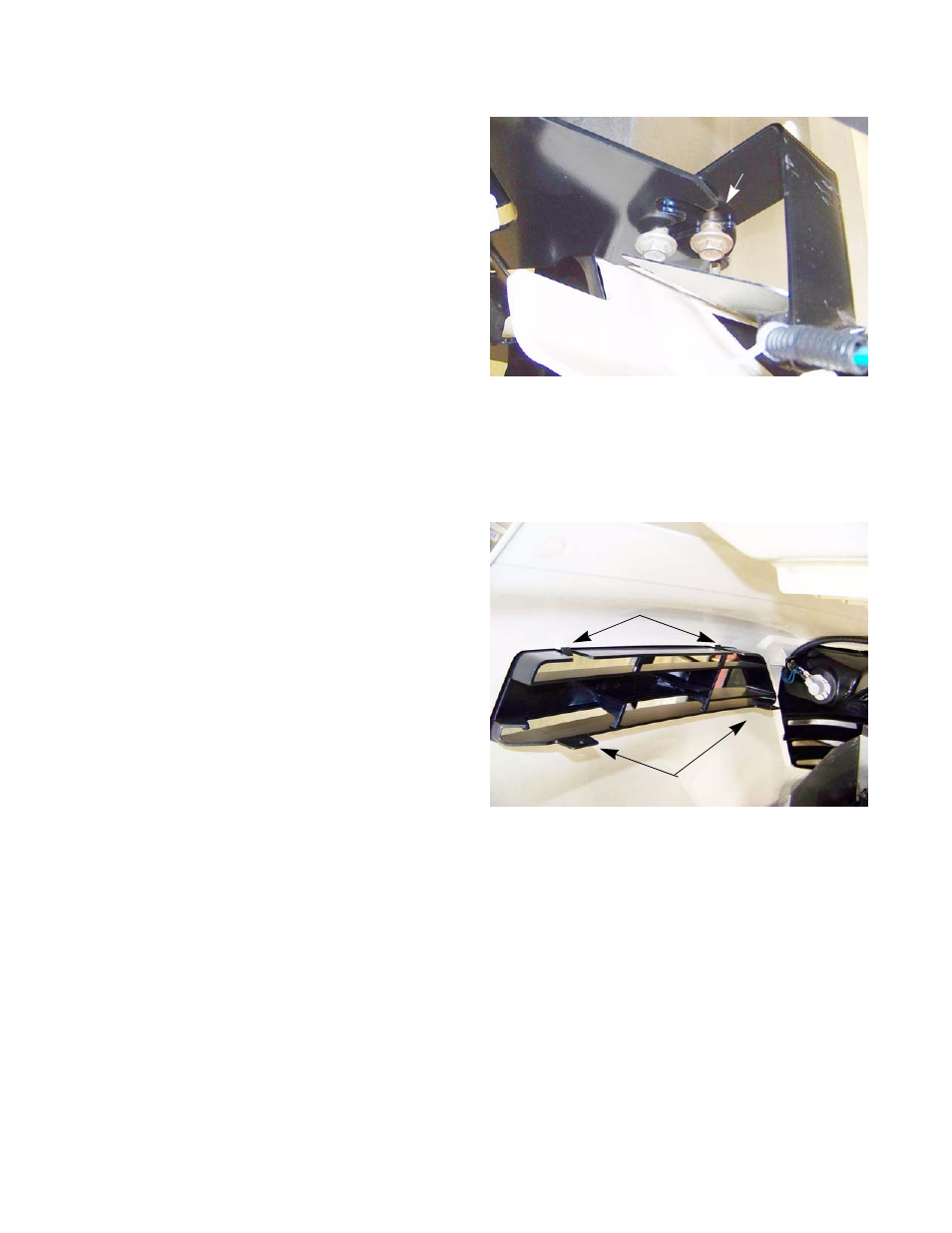

Figure 4.3
Slot
Figure 4.4
2 lock tabs on top
2 lock tabs on bottom
