34 DISTO™ pro 4 / pro 4 a-1.0.0en English
en
Press briefly again to quit the
menu and to display the
result in basic settings..
If desired, save result to a keypad
memory or to the data memory.
If instead of taking the third
measurement, the result key
is pressed, then the desired length is
computed from the two
measurements taken and displayed.
Otherwise take the third
measurement:
Press briefly to change into
Pointing mode.
Point laser at third measured point.
Press briefly to start
measurement or hold key
until minimum tracking starts.
Press briefly to confirm the
displayed value.

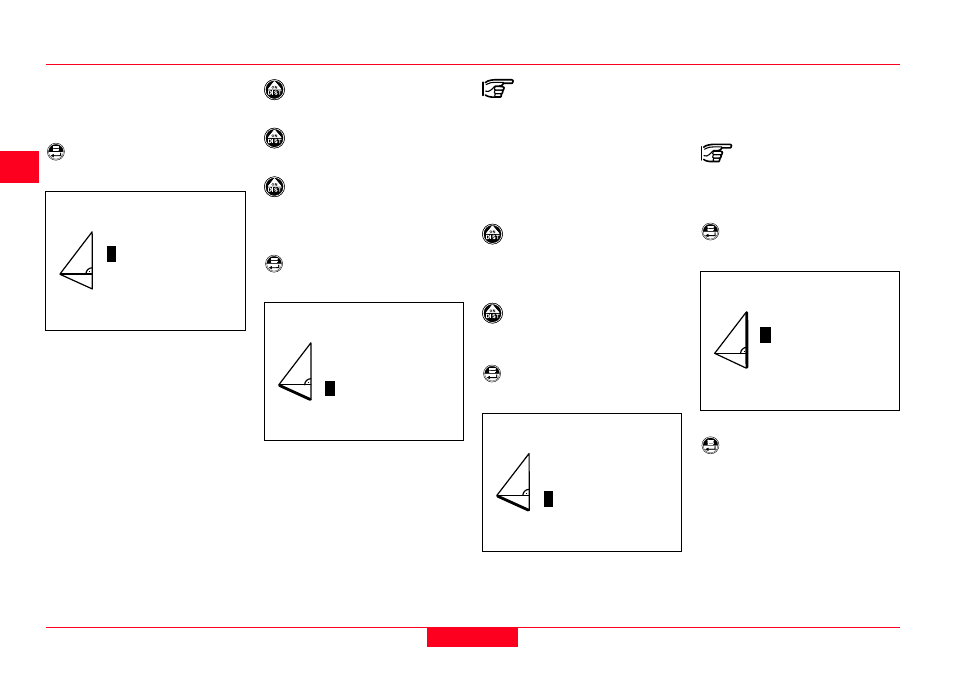

Basic functions, contd.
The first measured values appear
beside the corresponding "1".
At the same time the second side of
the triangle to be measured or the
height of the triangle with the
corresponding number "2" is
displayed in black.
Align DISTO approximately at a right
angle with the reference (wall).
Where the measured points were
arranged vertically, it would
correspond to the horizontal setting
of the DISTO.
Press briefly to change into
Pointing mode.
Press until minimum tracking
starts.
Press briefly to end minimum
tracking as soon as the
minimum distance has been
determined.
Press briefly to confirm
displayed value.
The second measured value appears
beside the corresponding number
"2". At the same time the last to be
measured side of the triangle with
the corresponding "3" is displayed in
black.
The third measured value is
displayed beside the corresponding
number "3".
Each of the three measured
values can be selected again
with the navigation key and
corrected by a new measurement.
Press briefly to compute and
display desired length.
pythagoras 4.4
1
2
3
pythagoras 4.4
1
2
3
11.494m
1
2
3
11.494m
0 8.529m
11.494m
8.529m
pythagoras 4.4
1
2
3
1
2
3
11.494m
0 8.529m
0 8.593m
pythagoras 4.4
1 0 8.751m
Press trigger key as soon as the
distance has been measured in
maximum tracking mode.
Press briefly to confirm
displayed value.
8.593m
