Compex Technologies NetPassage 18A - Manual (Page 155)

146

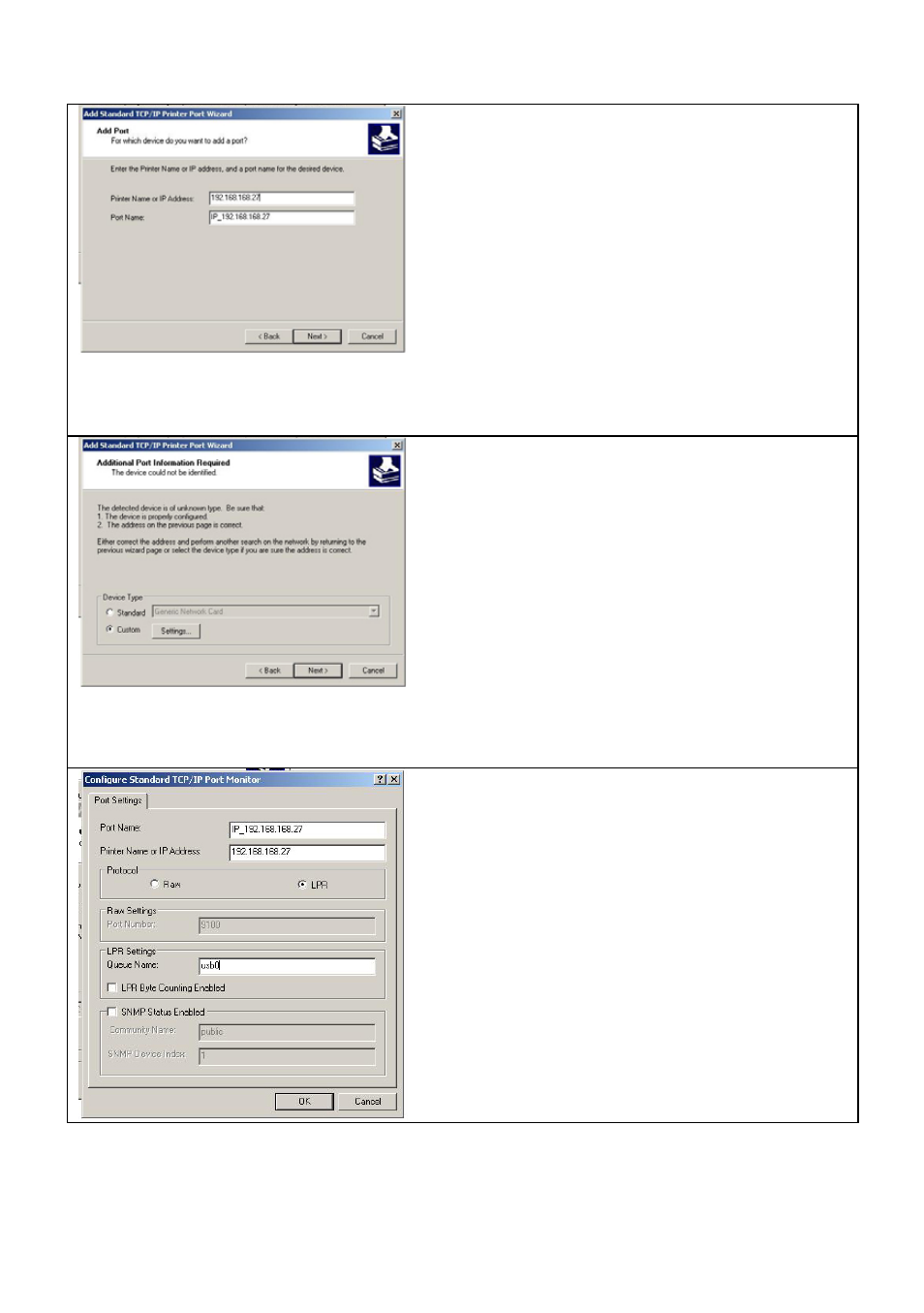

5. Enter your router’s IP address in the
Printer Name or IP Address field.
Then the corresponding Port Name
will be automatically entered.
6. Click on the Next> button to
proceed.
7. Go to the Device Type section and
select Custom. Next to the Custom
radio button, click on the Settings
button. This brings out the Configure
Standard TCP/IP Port Monitor
window.
8. Go to the Protocol section and
select LPR.
9. Next proceed to the LPR Settings
section. In the Queue Name field,
key in ‘usb0’ Please take note that
‘usb0’ is an example. The
appropriate queue name should be
derived from the URL of the printer
that connects to the router.
10. Click on the Next> button to
proceed.
