Compex Technologies NetPassage 18A User Manual
Page 124
115

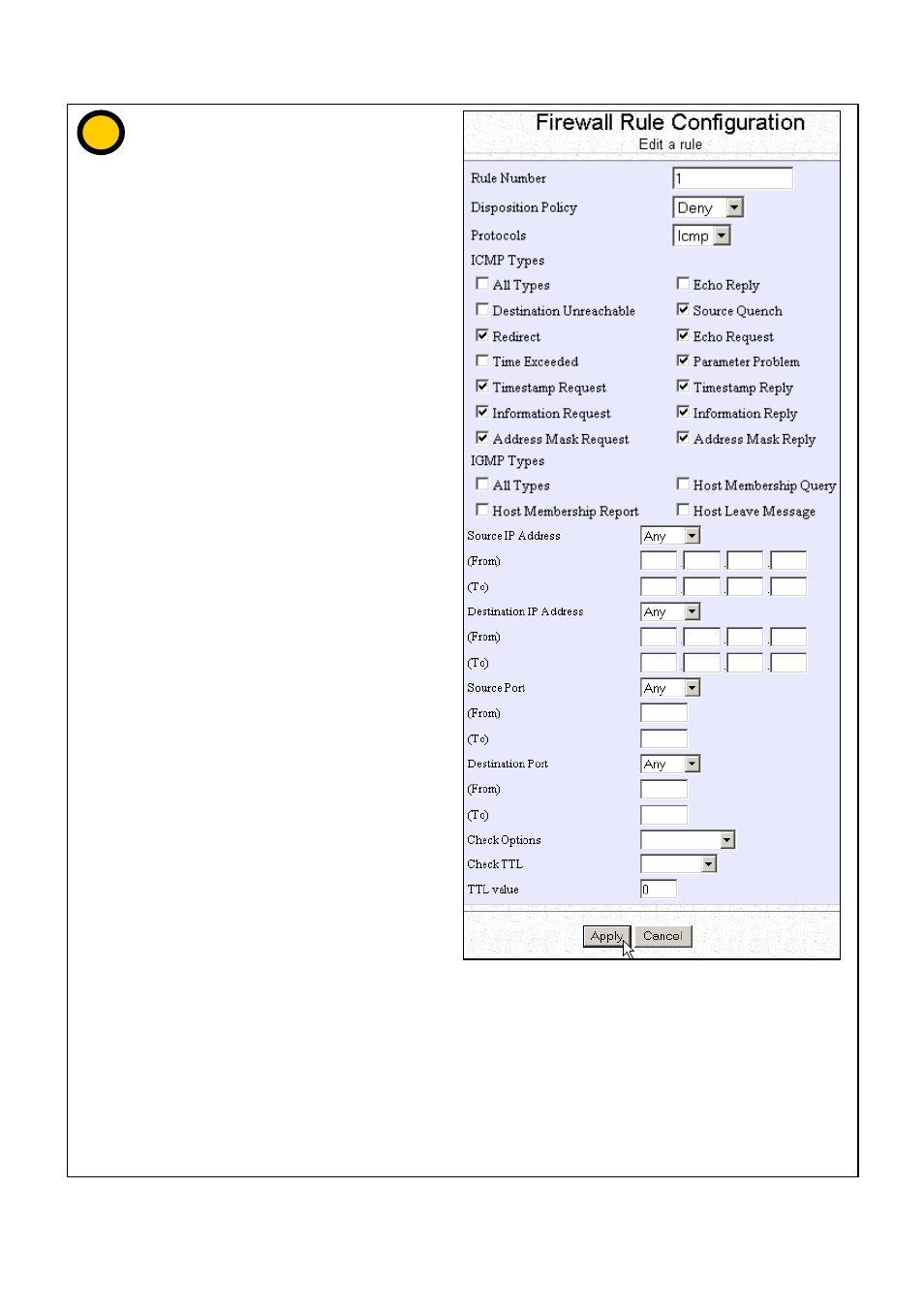

1.
Rule Number
ranges from 1 to
40.
Precedence is determined in
ascending order such that rule
1 takes precedence over rule 2.
2. Select whether to
Deny
or to
Accept
packets for the
Disposition Policy
.
3. Pick the relevant
Protocol
.
4. For
ICMP Types
, select the
checkboxes according to the
ICMP information for the
gateway to discard/collect.
5. Similarly,
the
IGMP Types
section
lets you choose which IGMP
packets to discard/ record.
6. From
Source IP Address
dropdown list, select whether to
apply the rule to:
A
Range
of IP addresses.
Define
(From)
which IP address
(To)
which IP address, the rule
applies.
A
Single
IP address.
You need only specify the
source IP address in
(From)
.
Any
IP address
Both
(From)
and
(To)
may be
left blank.
7.
Similarly, determine the
Destination IP Address
.
8. At
the
Source Port
dropdown
list, select either:
A
Range
of TCP ports
Define
(From)
which port
(To)
which port, the rule applies.
A
Single
TCP port
You need only specify the
source port in the
(From)
.
Any
IP port
Both
(From)
and
(To)
may be
left blank.
3
