Oldcastle BuildingEnvelope Reliance-IG SS - Manual (Page 9)

6 



R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L
1"
1 3/4" @ 6 1/4" system
Drill "F" (.257 dia.) hole
for #14 assembly screw
FIGURE 2

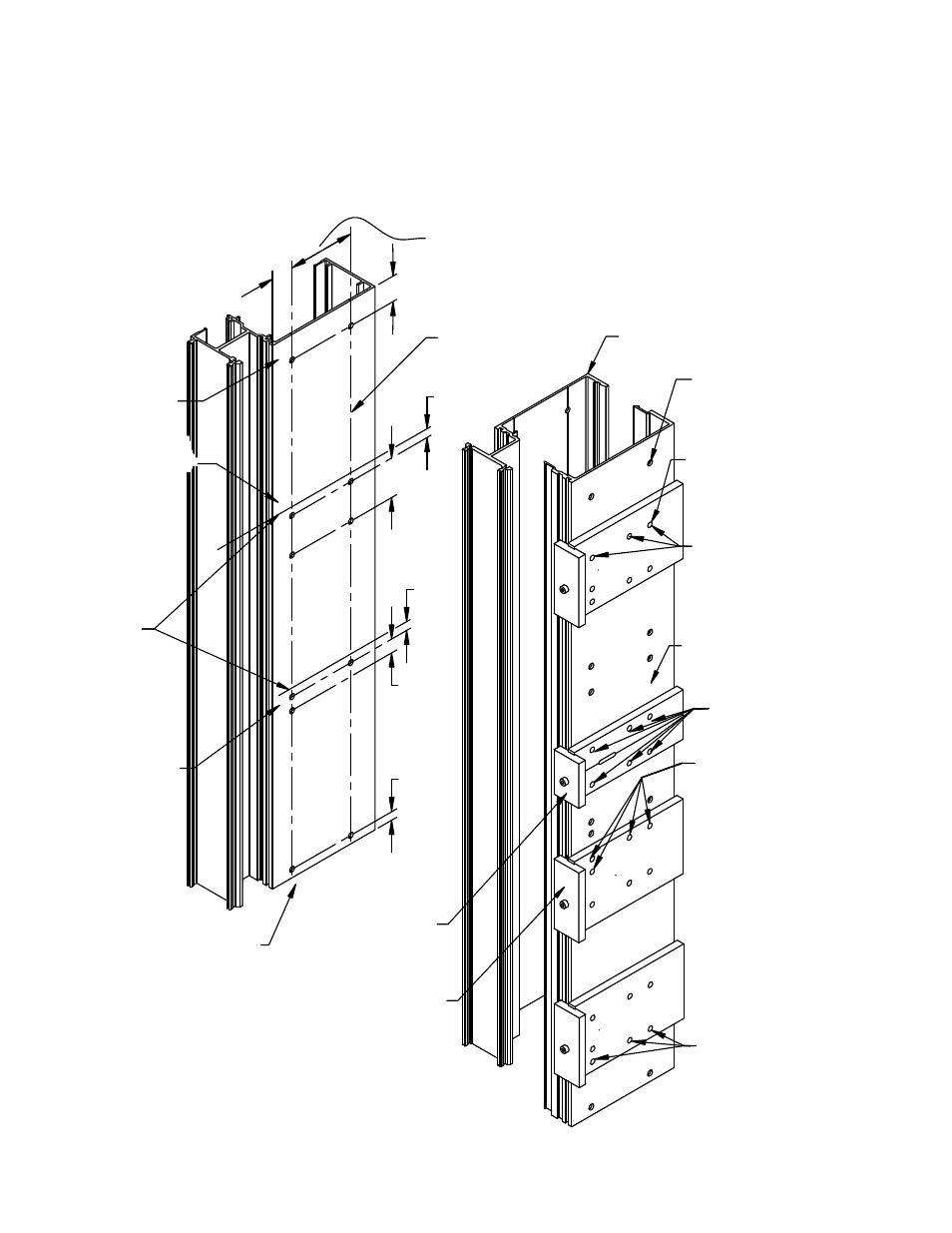

Vertical Fabrication
DJ-108 drill jig for
head, sill and typical
horizontals.
IW-541 (IW-441)
Intermediate Vertical (right)
3" @ 7 1/2" system
1 1/8"
3/8"
3/8"
5/8"
3/8"
1 3/4"
Top of
Horizontal
Note: Drill jig reversed
to drill holes at head
and sill.
"A" , "B or C " and "D"
at horizontals
"A" and "B or C" at sill
"E" and "F or G" at head
Use DJ-105 for
WW-542 horizontal
IW-540 (IW-440)
Intermediate Vertical (left)
Prep for
IW-547 (IW-447)
Prep for
IW-542 (IW-442)
IW-549 (IW-449)
Prep for
WW-542 (WW-442)
IW-543 (IW-443)
Jamb Mullion
Prep for
IW-546 (IW-446)
"A" and "B or C"
at WW-542 / WW-442
FRAME FABRICATION
