7 



R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L
7/32"
Centerline of D.L.O
Drill 5/16" dia. weep hole
(locate on underside of cover)
Horizontal Face Cover Weeps
FIGURE 4
Horizontal Weep Holes
1.6 In areas requiring exterior glazed horizontals. Drill 5/16" dia. weep holes at 1/4 points in the
horizontal pressure plates. All pressure plates have factory punched holes for screws at 9" O.C. To
ensure proper pressure on the glazing, 7/32" dia. holes may need to be drilled at the ends of each
horizontal pressure plate as required. Locate holes at 1 1/2" maximum from the ends of the pressure
plate. SEE FIGURE 5, page 8 .
1.7 If glazing SSG mullion using 1/4" glass, fabricate IW-131 glazing adaptor for #10 (.191Ø) holes at
12" o.c. SEE FIGURE 6, page 8.

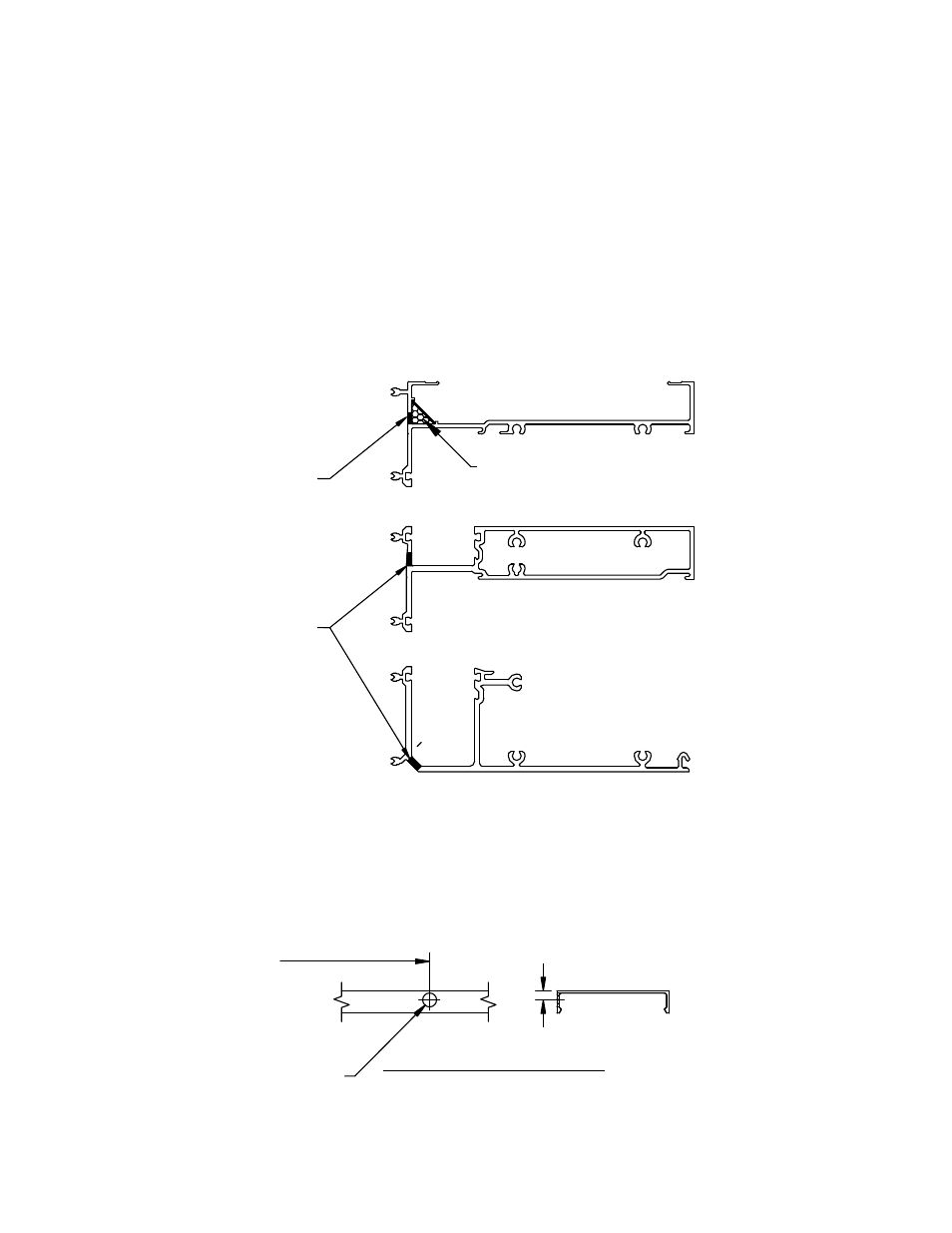

FIGURE 3
Horizontal Weep Hole Fabrication
Drill 5/16" dia. weep holes
@ quarter points.
Locate on ID mark
Drill 5/16" dia. weep hole
@ mid lite.
Locate on ID mark
FRAME FABRICATION
HP-1004 baffle w/
SPW-295 baffle retainer
