12 



R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L

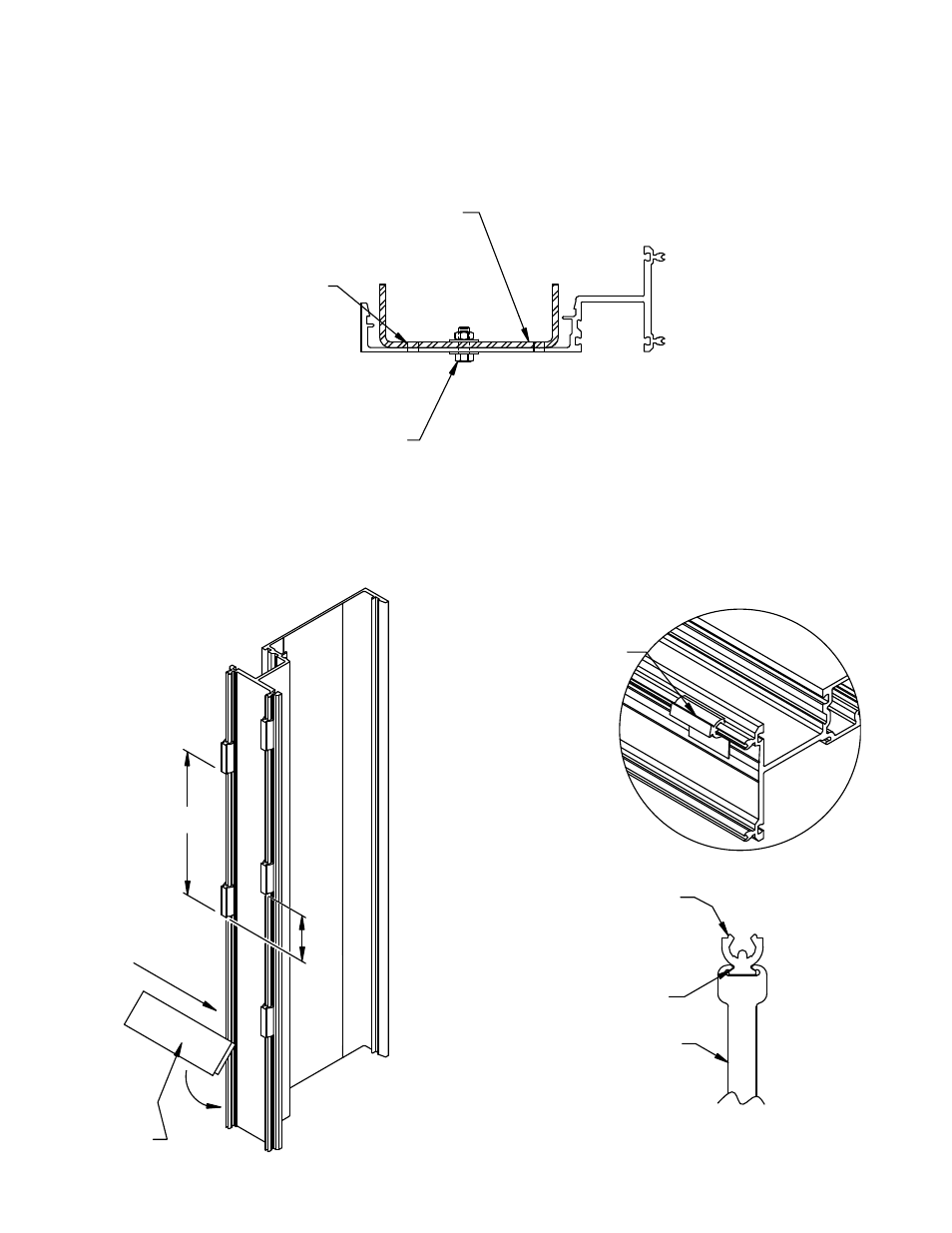

FIGURE 10
STEEL INSTALLATION
1/4"-20 X 1" Hex head bolt, nut &
washers. Locate bolts at each
end of steel, locate beneath
horizontal at vision areas.
CW250-PP-16 Steel reinforcement
Center steel between legs of mullion.
Match drill steel for
attachment of horizontals
Cut steel mull length minus 3/4" at sill
and 3-1/2" short at head to clear anchor
sleeve.
GP-141 isolator/baffle
locate at each horizontal
weep hole
ICW-12
ICW-FP-74
tool
Slide isolator into clip tool.
Snap one end of clip onto
clip stem and rotate into place
until clip snaps.
12"
2"
FIGURE 11
Isolator Installation ICW-FP-74
FRAME ASSEMBLY
