28 



R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L
1/2"

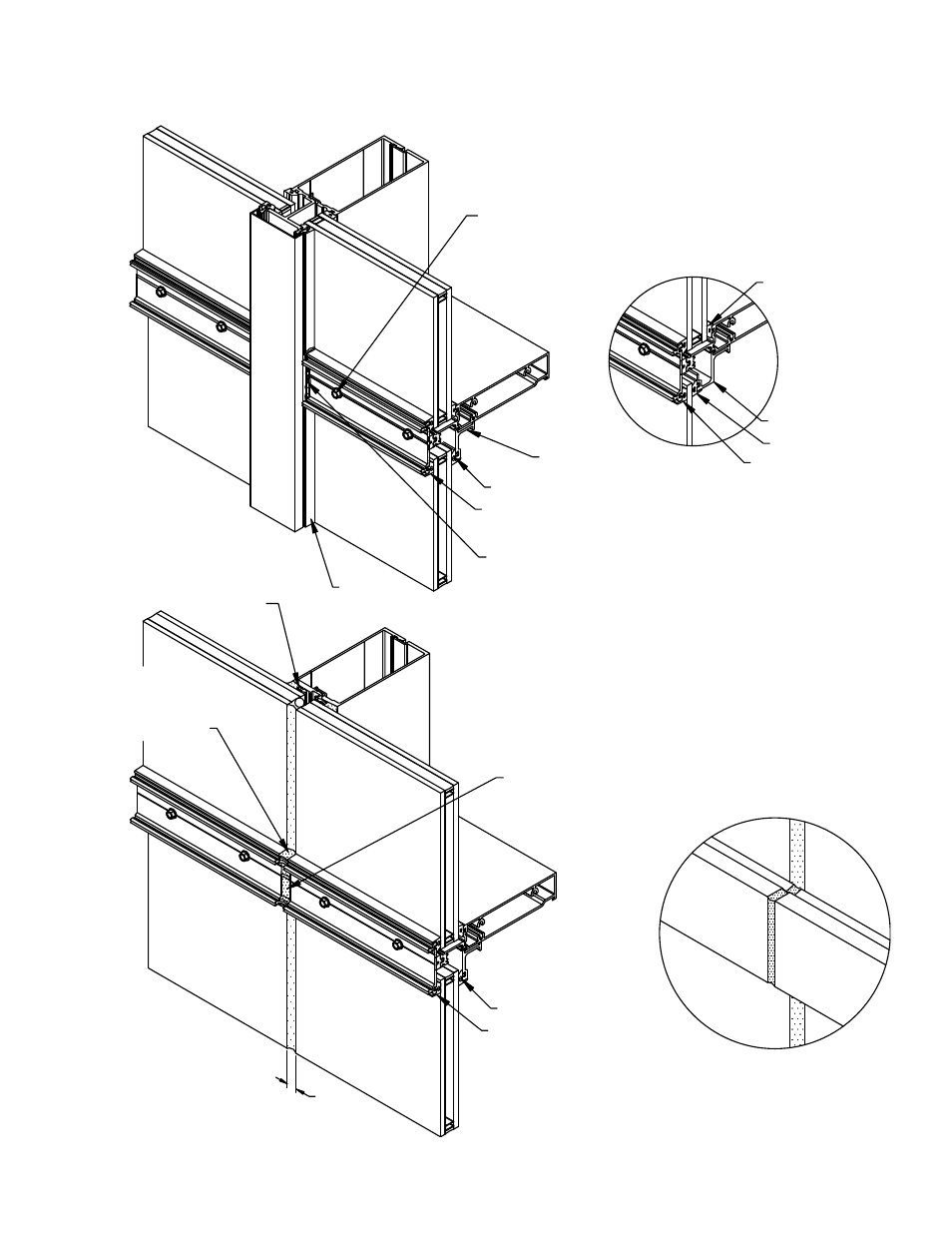

FIGURE 30
FIGURE 29
FIGURE 31
GP-123
Seal between pressure
plates, gaskets and mullion
FS-322(#12-14 x 1" HH Drill-Flex)
@ 9" o.c.
GP-102 Spacer Gasket
Install after glass
is in place
Marry seals at
gasket, pressure
plate and glass.
Splice pressure plates at
center line of SSG mullions.
Maximum 3 lites wide.
IW-152
IW-151
GP-123
GP-113
FIGURE 29B
GP-113
GP-123
GP-123
GP-123
GP-123
EXTERIOR GLAZING INSTRUCTIONS
