R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L

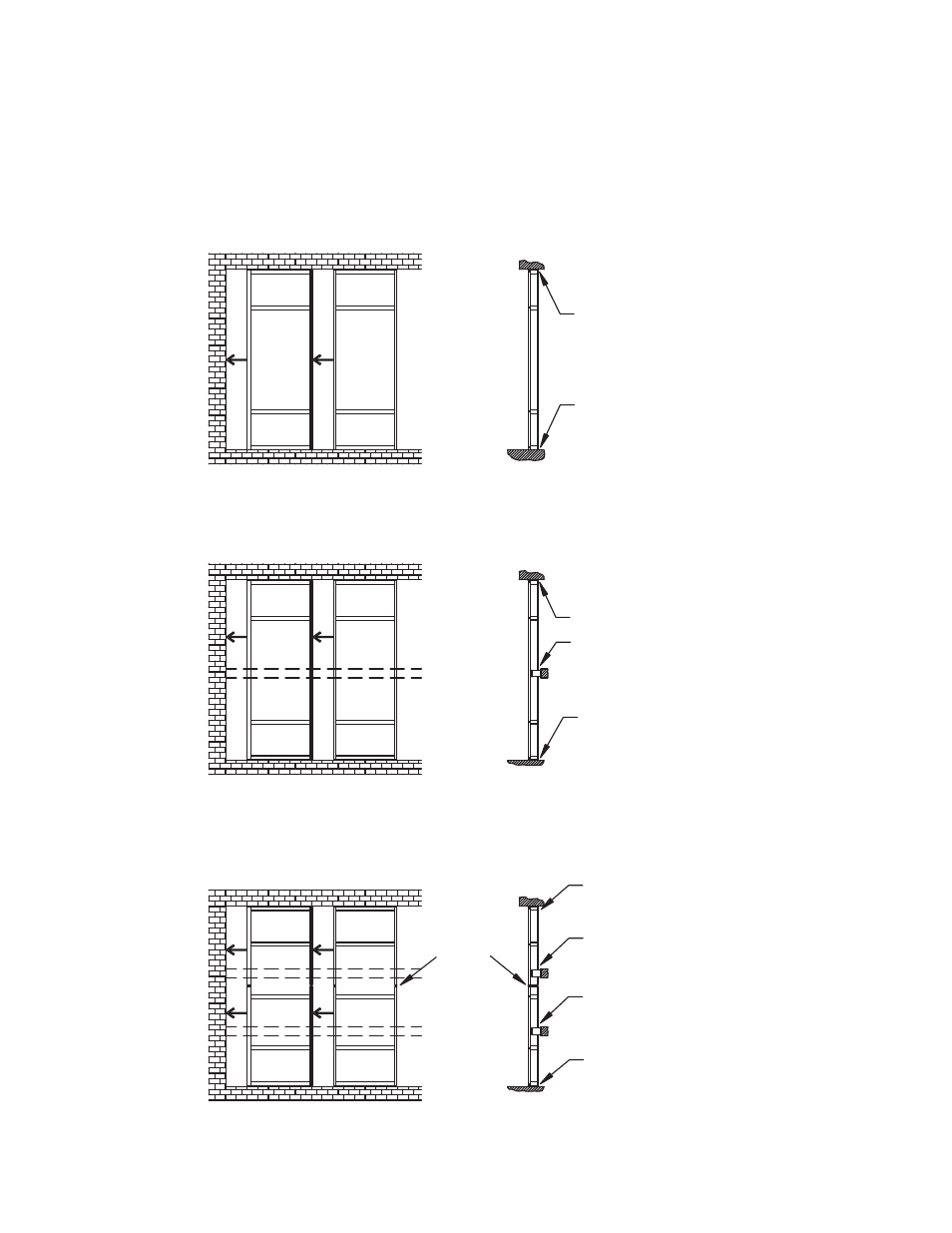

The following diagrams represent common types of installations for this product. Refer to approved
shop drawings for specifics regarding splicing and anchoring of frame.
Mullion end anchor
Mullion mid-point anchor
(deadload)
Mullion mid-point anchor
(expansion)
Mullion
splice
Mullion end anchor
Mullion end anchor
Mullion end anchor
Mullion mid-point anchor
Mullion end anchor
Mullion end anchor
Single Span
Twin Span
1 2
1 2
1 2
3 4
Multi-Span
INSTALLATION TYPES
