36 



R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L
Attach splice to lower mullion after
assembly with (2) FS-8 fasteners.
Match drill splice using #11 (.191 Ø) drill.
Install FS-322 fastener into
lower mullion. Fastener used
as stop for splice.
Seal face of
mullion
Seal interior face of
mullion
1" 1"

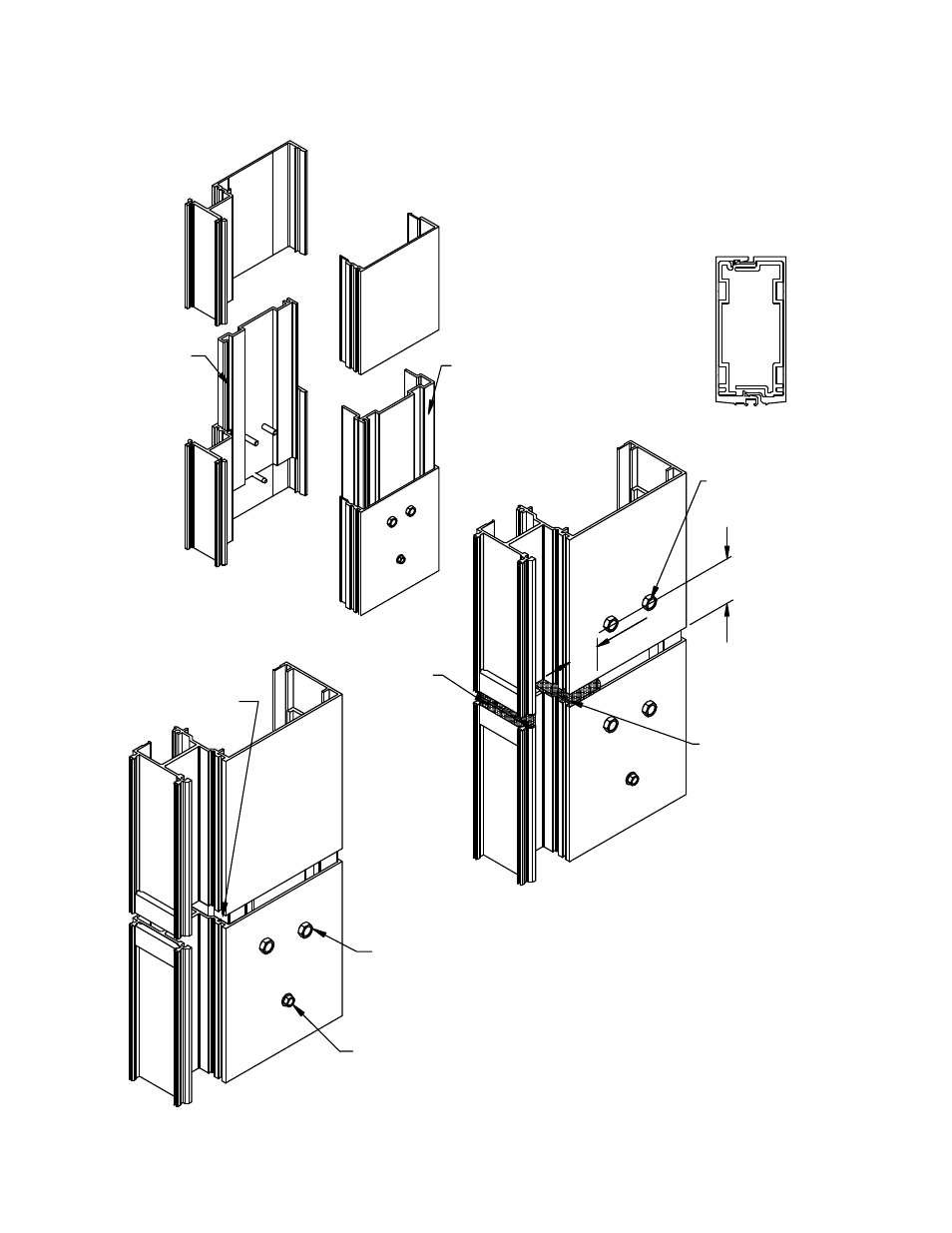

FIGURE 42
Splice Assembly
FIGURE 43
Splice Sealant
Apply bond breaker tape
along face of splice
IW-190-01 (7 1/2")
IW-180-01 (6 1/4")
IW-191-01 (7 1/2")
IW-181-01 (6 1/4")
Add (2) FS-8 fasteners
to upper mullion for
hard splice.
1-1/2"
VERTICAL SPLICE ASSEMBLY
