48 os135 crnr – Oldcastle BuildingEnvelope Reliance-IG SS User Manual
Page 51
48
R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L
2"
Cut Length = D.L.O.
(See Detail "B")
Detail "B"
OS90 Corner
Assembly Guide
Detail "A"
Miter Cut at
1" Intermediate Horizontal
22.5°
2 1/4"
2 1
/4"
D.L.O.
2"
"A
"
"B
"
"A
"
Attach head and horizontal to
shear block with FS-55 (#10 x 1/2"
pph), and sill to shear block with FS-56
(#10 x 1/2" pfh). Shear blocks must be
pre-attached to mullion and horizontals
before installation.
1/2"
Note: Reference Corner Hardware list
page 53 & 54 for specific part numbers
for shear blocks and other pats.

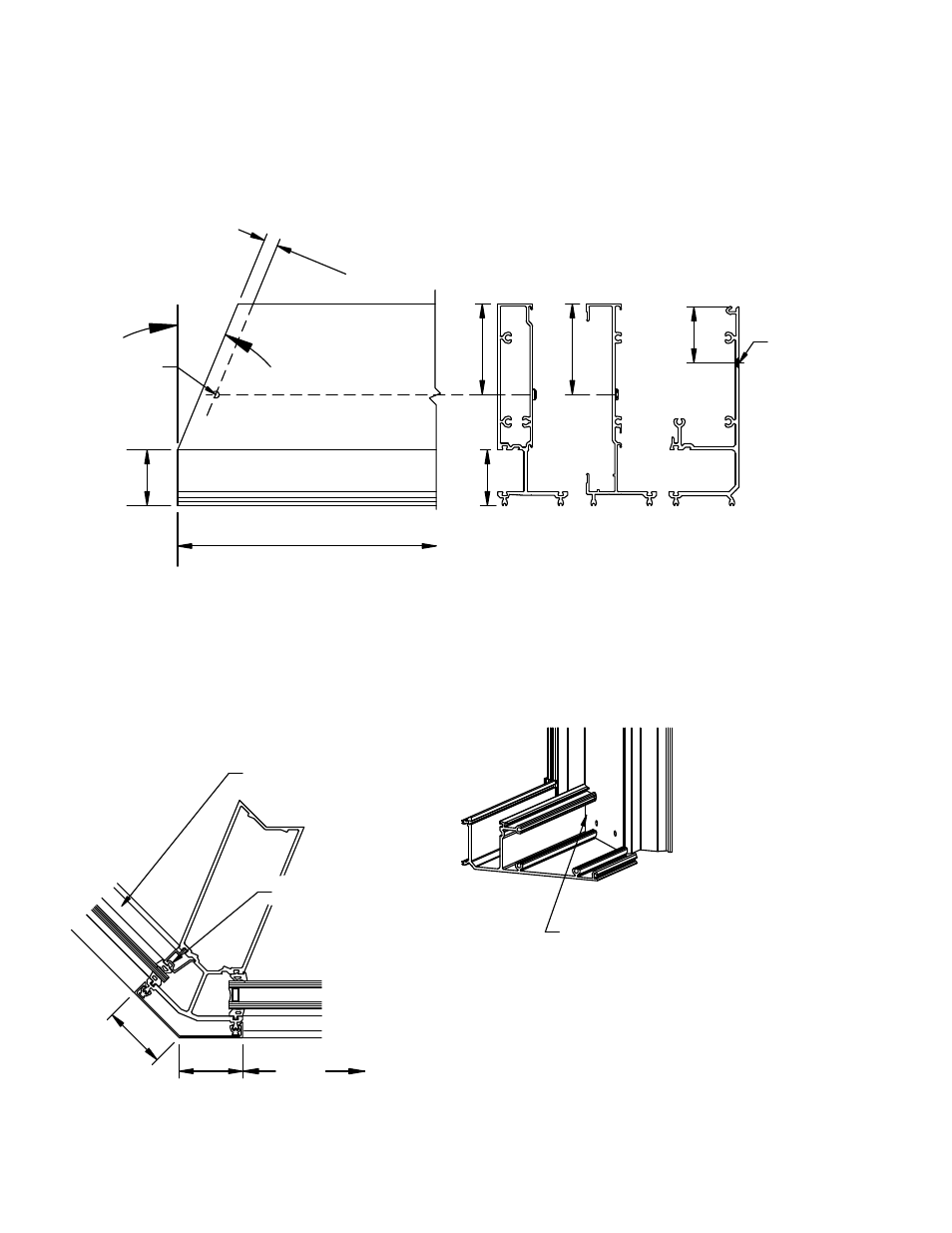

OUTSIDE 135 CORNER INSTALLATION
Drill #11
(.191 dia) hole
Apply sealant along interior
of vertical leg of sill
Drill #11
(.191 dia)
hole & ctsk
for #10 pfh
WW-145 horizontal adaptor
(D.L.O. minus 1/32")
WW-145
vertical adaptor
(D.L.O. + 1")
7 1/2" System = "A" - 3 5/16", "B" - 2"
6 1/4" System = "A" - 2 1/8", "B"- 1 3/4"
