R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L

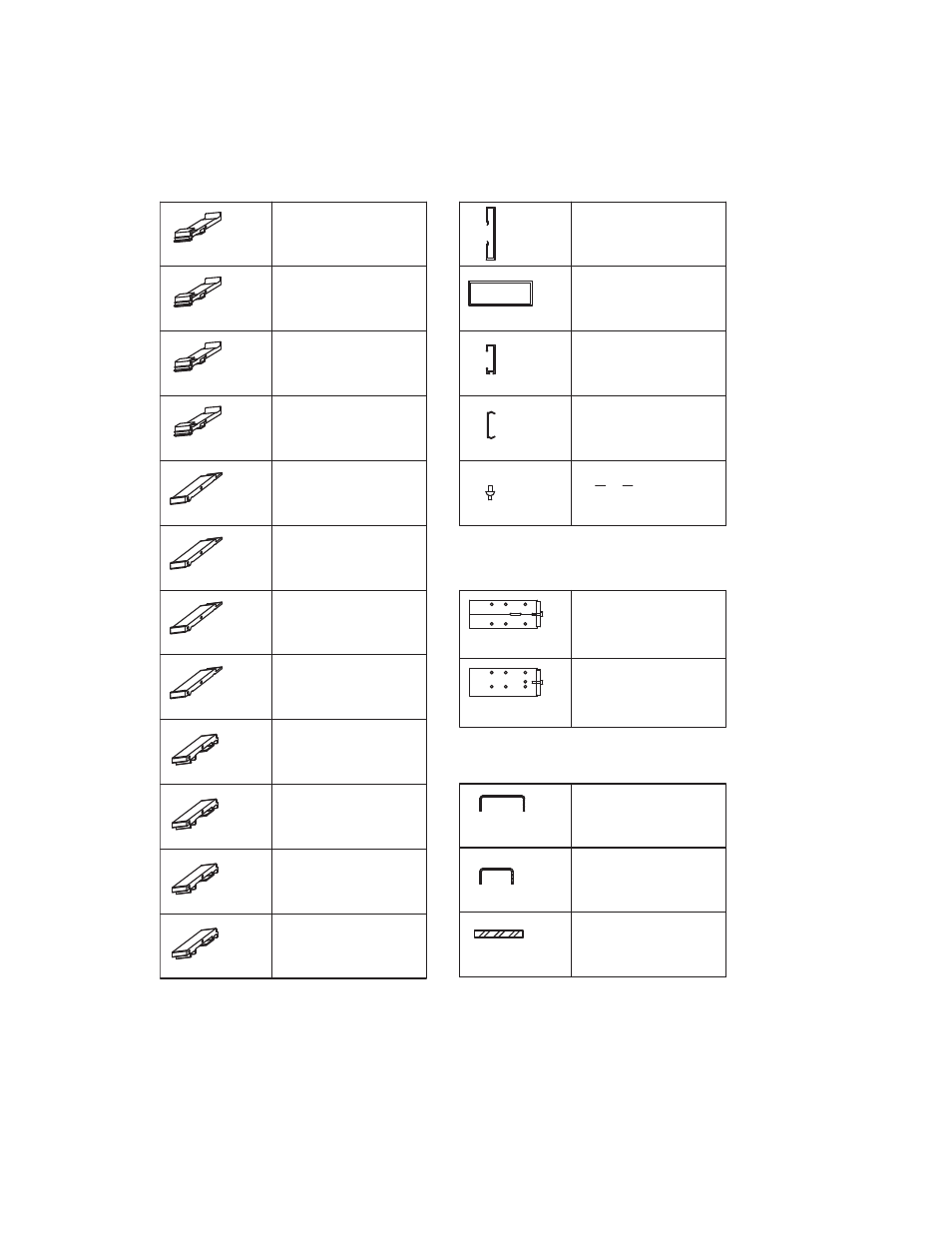

Parts List
Door Subframe
(3/4" Sightline)
D-186
Flush Door Frame
& Optional D-186
Door Stop
(Use with SC-1 Clip)
DS-1
DOOR EXTRUSIONS
Spring Clip for
DS-1 Door Stop
SC-1
3
16
" x
7
16
" Drive Rivet
Fastens SC-1 Clip
FS-15
OS135° Right Hand
Shear Block
for IW-542
IW-242-03
CORNER MULLIONS
& ACCESSORIES - cont'd
IW-242-04
OS135° Left Hand
Shear Block
for IW-542
OS135° Right Hand
Shear Block
for IW-442
IW-244-03
IW-244-04
OS135° Left Hand
Shear Block
for IW-442
OS135° Right Hand
Shear Block
for IW-546 & IW-550
IW-245-03
IW-245-04
OS135° Left Hand
Shear Block
for IW-546 & IW-550
OS135° Right Hand
Shear Block
for IW-446 & IW-450
IW-246-03
IW-246-04
OS135° Left Hand
Shear Block
for IW-446 & IW-450
OS135° Right Hand
Shear Block
for IW-547
IW-247-03
IW-247-04
OS135° Left Hand
Shear Block
for IW-547
OS135° Right Hand
Shear Block
for IW-448
IW-248-03
IW-248-04
OS135° Left Hand
Shear Block
for IW-448
Door Header OHCC
(2" Sightline)
F-16
CW250-PP-16
Steel Channel
for IW-540 & IW-544,
(20'-1")
RS-21
Steel Channel
for IW-440 & IW-444,
(20'-1")
DJ-105
Drill Jig for
WW-542 horizontal
prep for mullions
RELIANCE-SS CURTAIN WALL DJ-105
B
A
B
A
C
C
DJ-108
Typical Drill Jig
for Mullions
(Non Corners)
RELIANCE-SS CURTAIN WALL DJ-105
B
A
G
E
C
F
D
DRILL FIXTURES
STEEL REINFORCEMENT
RS-11
3/8" X 3" Steel Bar
for Corner Reinforcement
(20'-1")
