R E L I A N C E - I G S S I N S T A L L A T I O N M A N U A L
GP-101 Setting Block
@ IW-549 & IW-449
WW-150
1" Glazing
Locate Setting Blocks
at 1/4 points typical or
per project drawings.
GP-113 Wedge Gasket

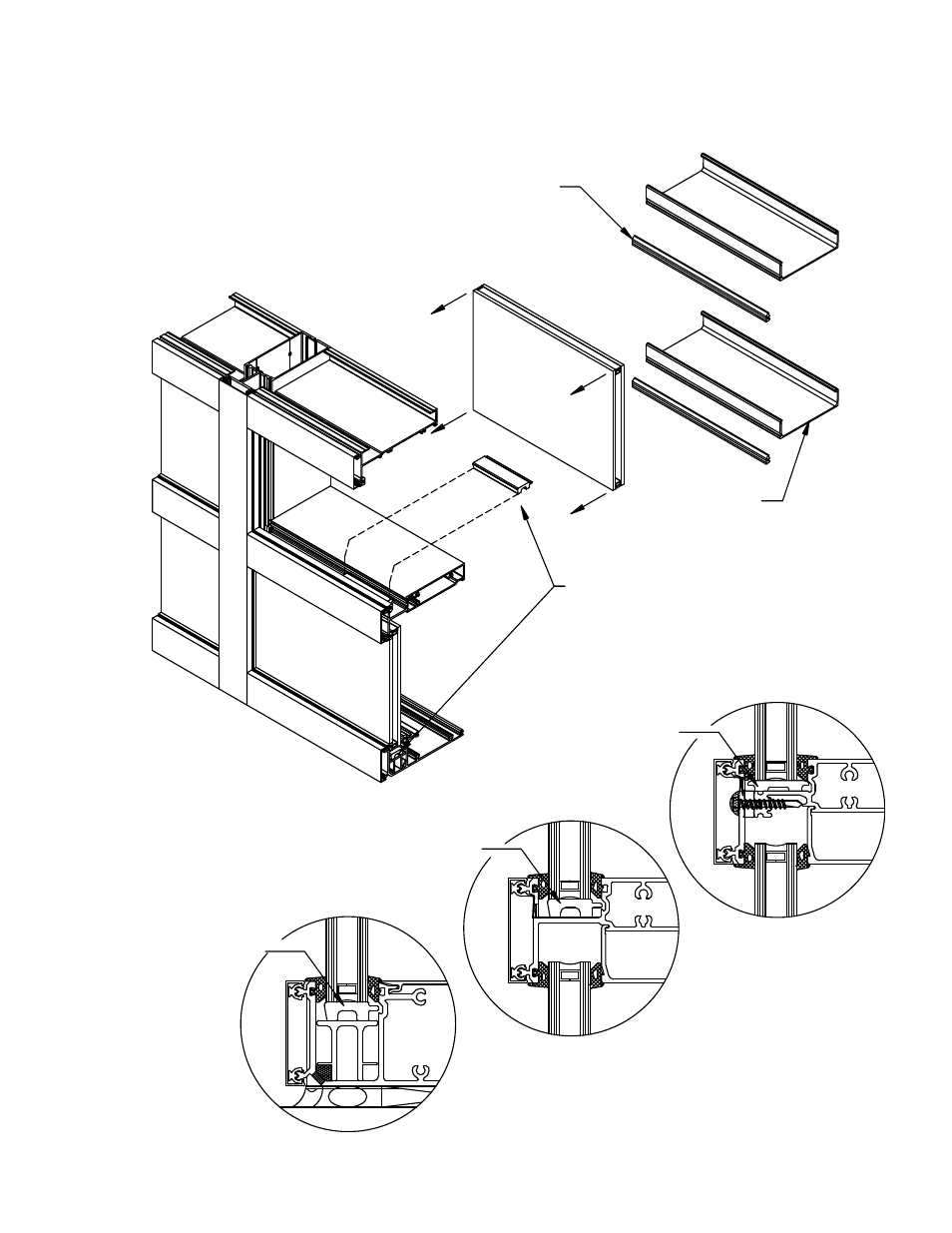

FIGURE 26
Glazing & Setting Block
Placement
GP-109 Setting Block
@ IW-542 & IW-442
GP-109 Setting Block
w/ GP-121 Setting Chair
@ IW-547 & IW-447
GLAZING INSTRUCTIONS
