Kontron CG2200 Carrier Grade Server Installation and Maintenance Guide

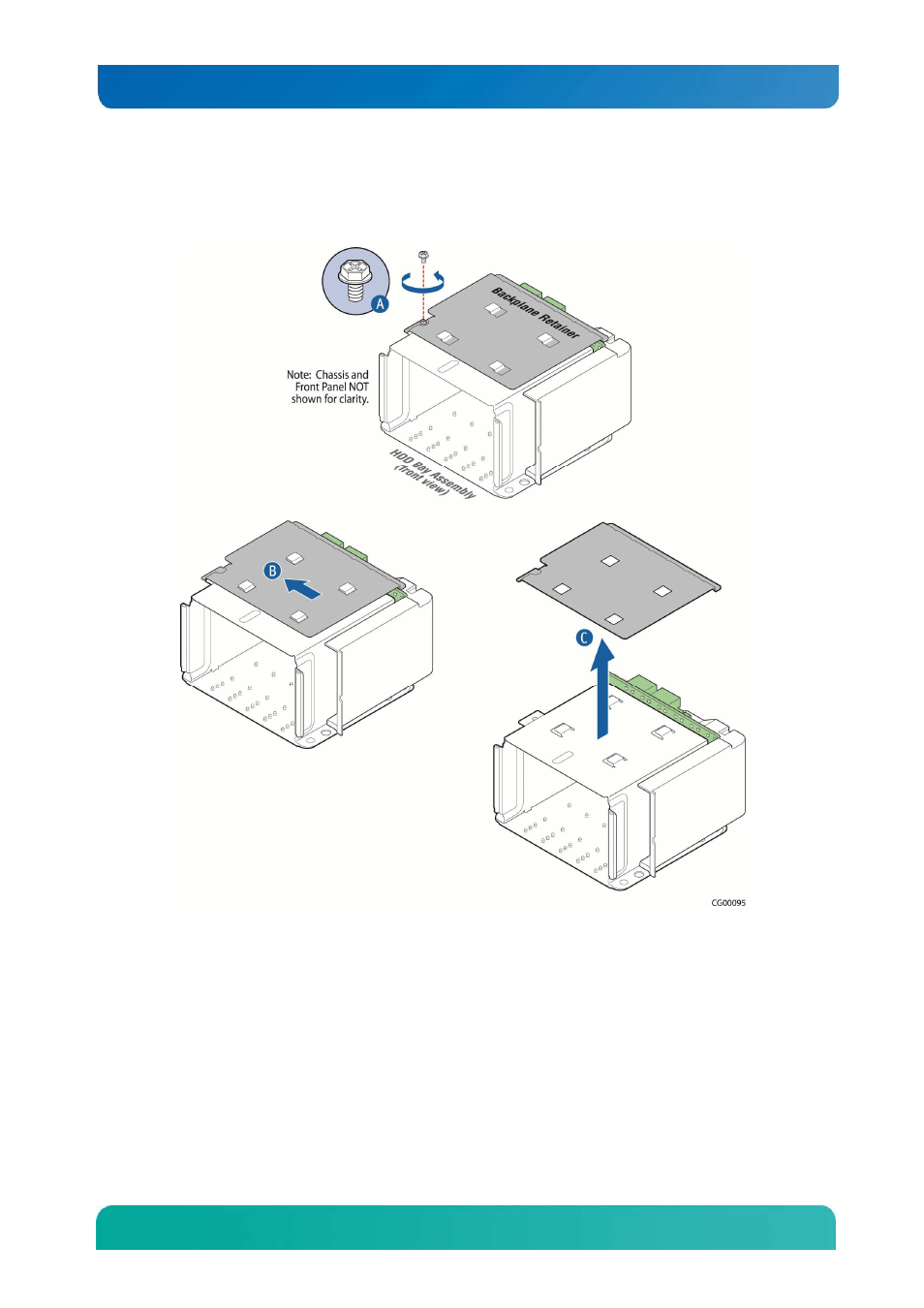

Figure 53. Removing the Cover Plate
7. Lift the backplane board and HDD air duct assembly up to access the connectors on the back of
the board. (Figure 54, “A”)
8. Disconnect the four cables attached to the backplane board (“B”):
- SAS HDD backplane board power cable
- Mini-SAS 1 and Mini-SAS 2 cables
- HSBP I
2
C/HDD LED cable
9. Lift the backplane board and air duct up and out of the chassis. (“C”)
