48
Kontron CG2200 Carrier Grade Server Installation and Maintenance Guide
Table 7
Riser Card Configurations
Riser Card Option
Slot Configuration
PCI Express passive riser, single slot x16
Right side riser (baseboard slot 5)
Single full-height PCI Express x16
connector
PCI Express passive riser, dual slot x8
Right side riser (baseboard slot 5)
Two full-height PCI Express x8 connectors
PCI Express/PCI-X active riser
Right side riser (baseboard slot 5)
Two full-height PCI-X 133 connectors
PCI Express passive riser, single slot x16
Left side riser (baseboard slot 2)
Single full-height PCI Express connector
PCI Express passive riser, dual slot x8
Left side riser (baseboard slot 2)
Two full-height PCI Express x8 connectors
NOTE
: The riser plugged into slot 5 can run at PCIe Gen3 speeds.

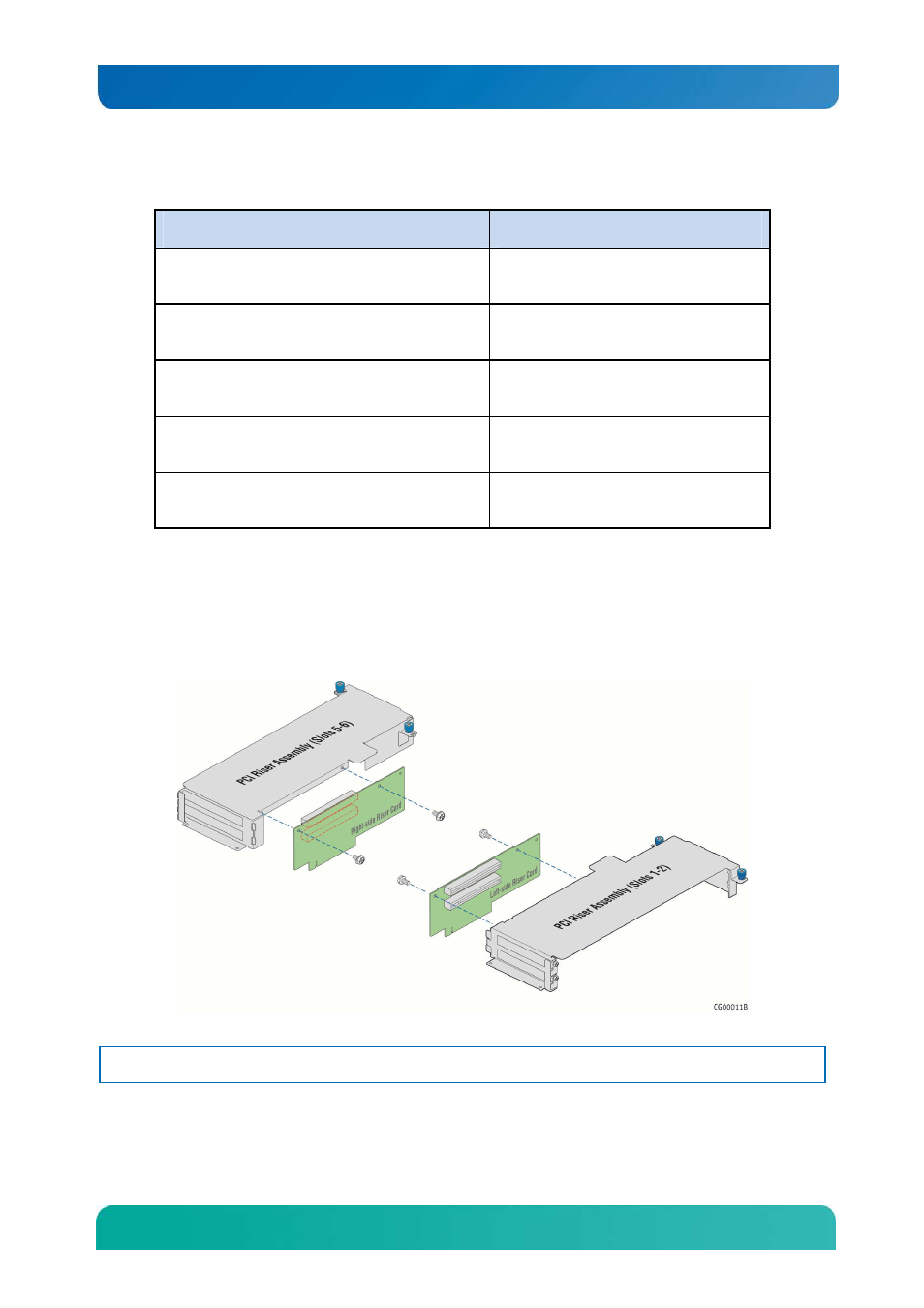

Figure 41 shows how a riser card is installed into the metal bracket.
Figure 34: Adding Riser Cards
CAUTION: When handling the riser card, observe normal safety and ESD precautions. (See Appendix A:
Safety Information” for more information.
To install the riser card in the sheet metal bracket:
