Kontron CG2200 Carrier Grade Server Installation and Maintenance Guide
Item Description Item Description
A Front panel control buttons
and status indicator and
telco alarm LEDs
C USB port
B RJ45 COM2 port D Bezel captive screw
Figure 4 shows the front panel of the CG2200 server with the bezel removed.

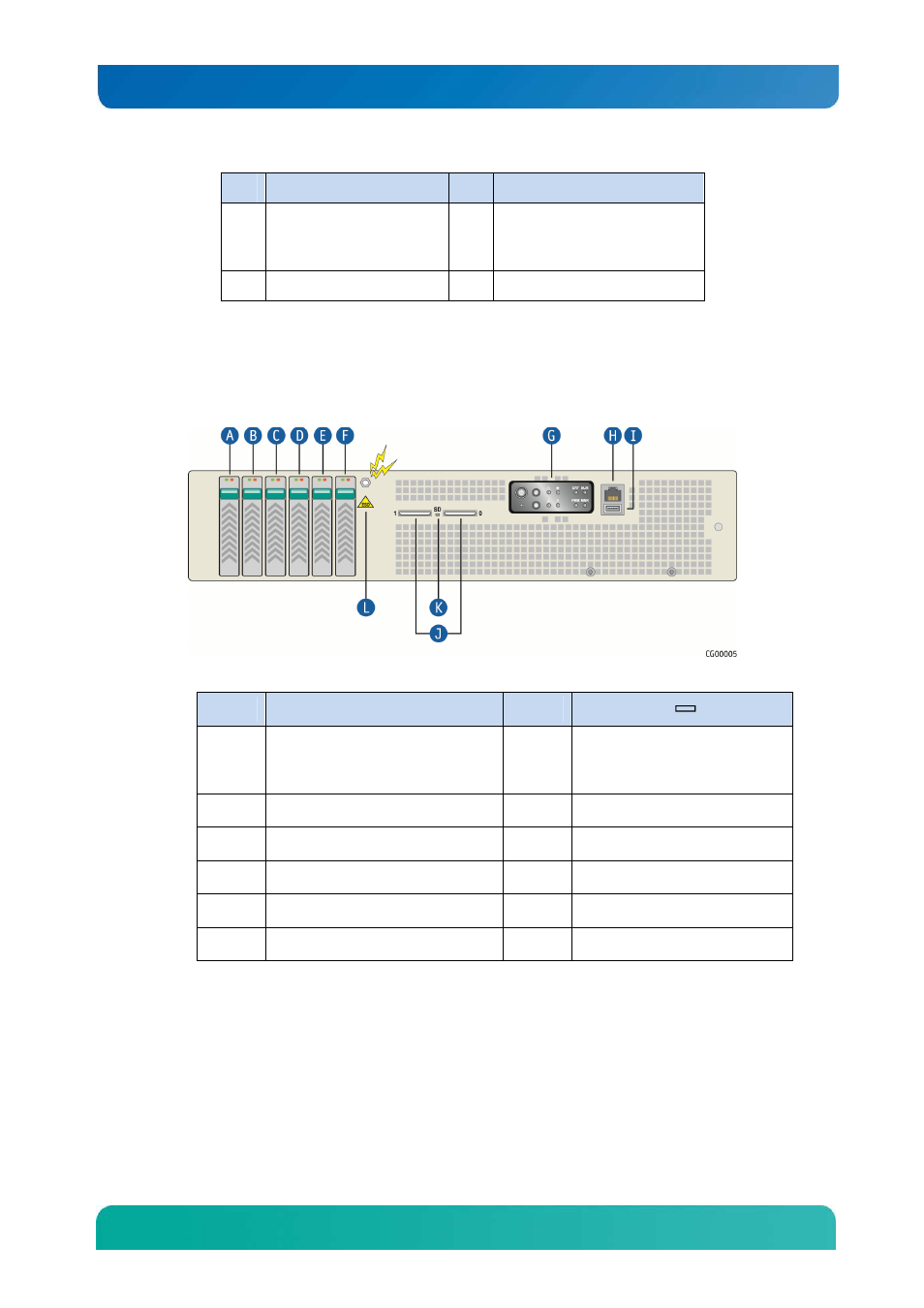

Figure 4. CG2200 Server Front View (Bezel Removed)
Item Description Item Description
A Hard disk drive slot 5 G
Front panel control buttons,
status indicator and telco alarm
LEDs
B Hard disk drive slot 4 H RJ45 serial port (COM1/serial A)
C Hard disk drive slot 3 I USB port
D Hard disk drive slot 2 J SD 0 and SD 1 flash modules
E Hard disk drive slot 1 K SD flash LED
F Hard disk drive slot 0 L ESD ground strap attachment
Figure 5 shows the CG2200 server control panel.
