7
Kontron CG2200 Carrier Grade Server Installation and Maintenance Guide
Table 2. CG2200 Server Components
Item Description Item Description
A
Redundant, hot-swappable AC or DC power
supply modules
N Baseboard PCI slot 5, for right-side risers only
B Earth Ground O CPU 2
C
PCI adapter external port access for five
adapters
P CPU 1
D Right-side riser card assembly Q
16 DDR3 memory DIMM slots, two banks of four
DIMMs for each processor (CPU 1 slots shown)
E CPU and DIMM air duct R Telco alarm module (TAM) board
F Chassis support crossbeam S RJ45 COM1 port and USB port (2 connectors)
G System fans (six) T Front panel board (FPB)
H Hard Drive Bay U LED board
I Air baffle for left-side riser card V SD flash card slots (2)
J Left-side riser card assembly W Power distribution board (PDB)
K Baseboard PCI slot 2 for left-side risers only X Fan control board
L
Baseboard PCI slot 3 for internal hardware RAID
adapter only
Y
Power supply cage for two power supply
modules
M Baseboard PCI slot 4, for LP adapters only Z Intel® S2600CO Server Board
2.2 CG2200 Server Front Panel
Figure 3 shows the front panel of the CG2200 server with the bezel installed.

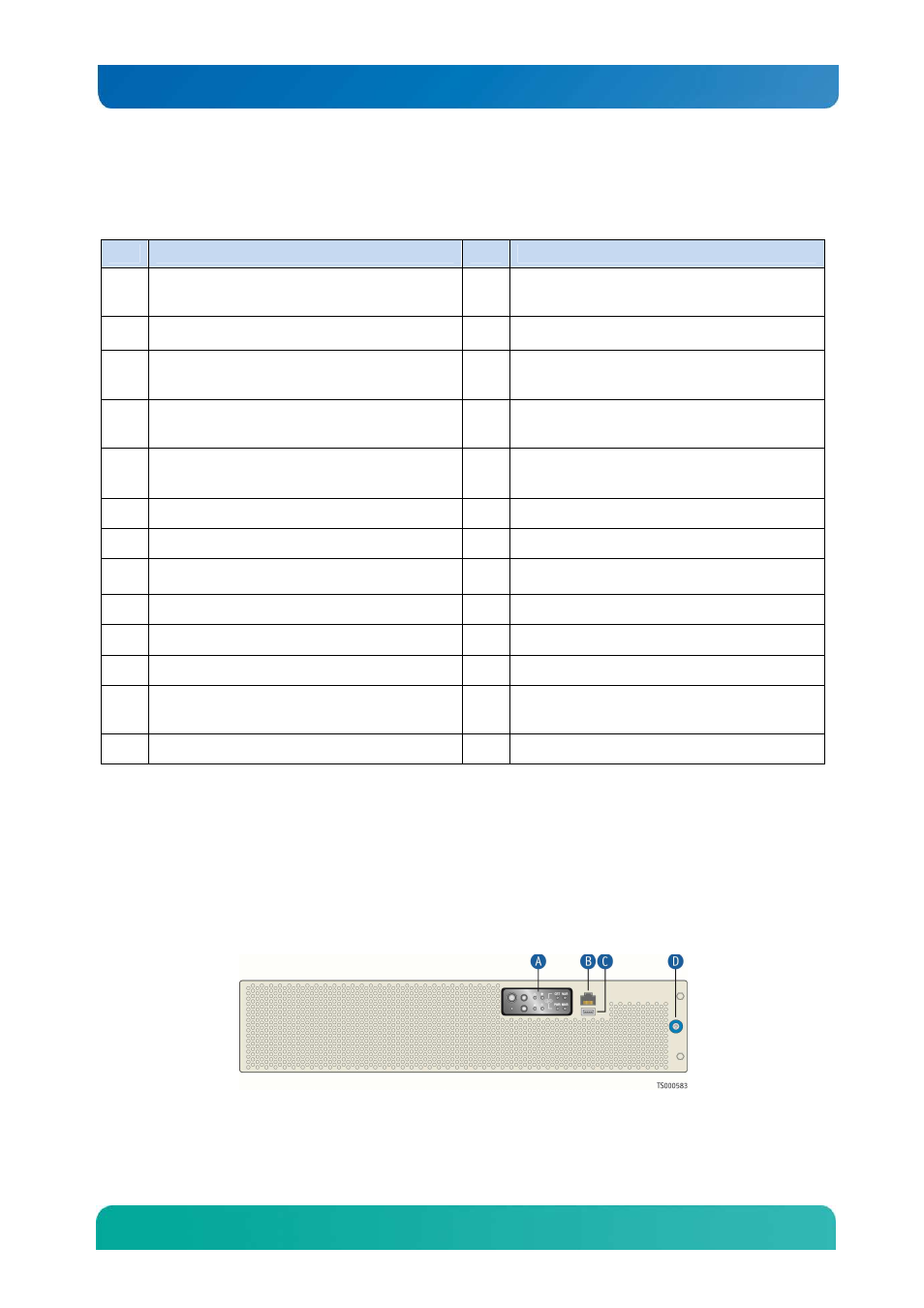

Figure 3. CG2200 Server Front View (Bezel Installed)
