30
Kontron CG2200 Carrier Grade Server Installation and Maintenance Guide

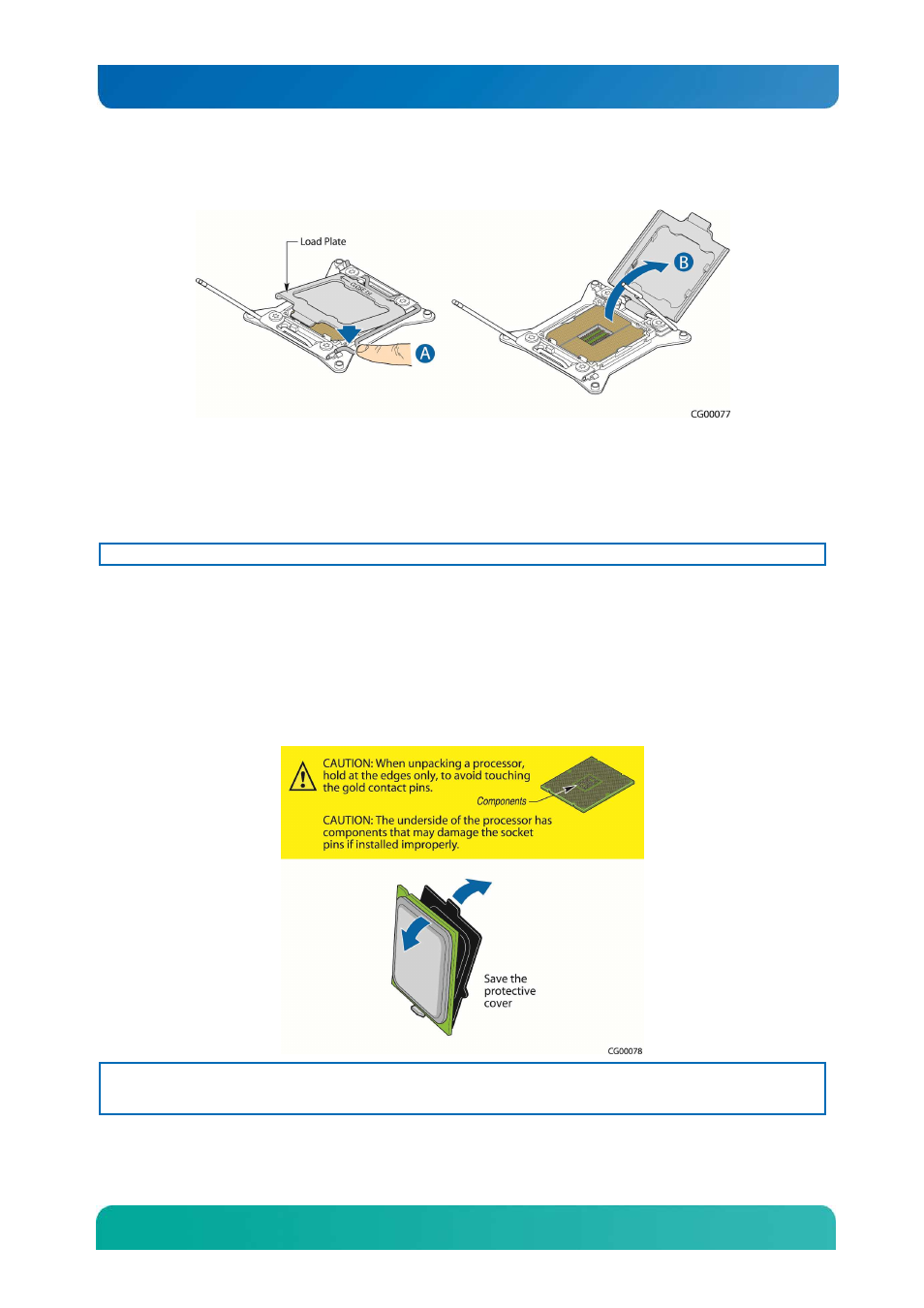

Figure 17.Opening the Load Plate
6. Remove the processor.
Installing a New Processor
NOTE : Follow the ESD precautions covered in “ESD and Processor Handling Precautions ” .
To install a processor, follow these instructions:
1. Take the processor out of its packaging and remove the protective shipping cover by grasping the
cover tab and pulling it away from the load plate. Store the protective cover for future use. (
2. Figure 18)
Figure 18. Removing the Shipping Cover
CAUTION: The underside of the processor has components that may damage the socket pins if installed
improperly. The processor must align correctly with the socket opening before installation. Gently place
the processor onto the socket surface. Do not drop the processor into the socket!
