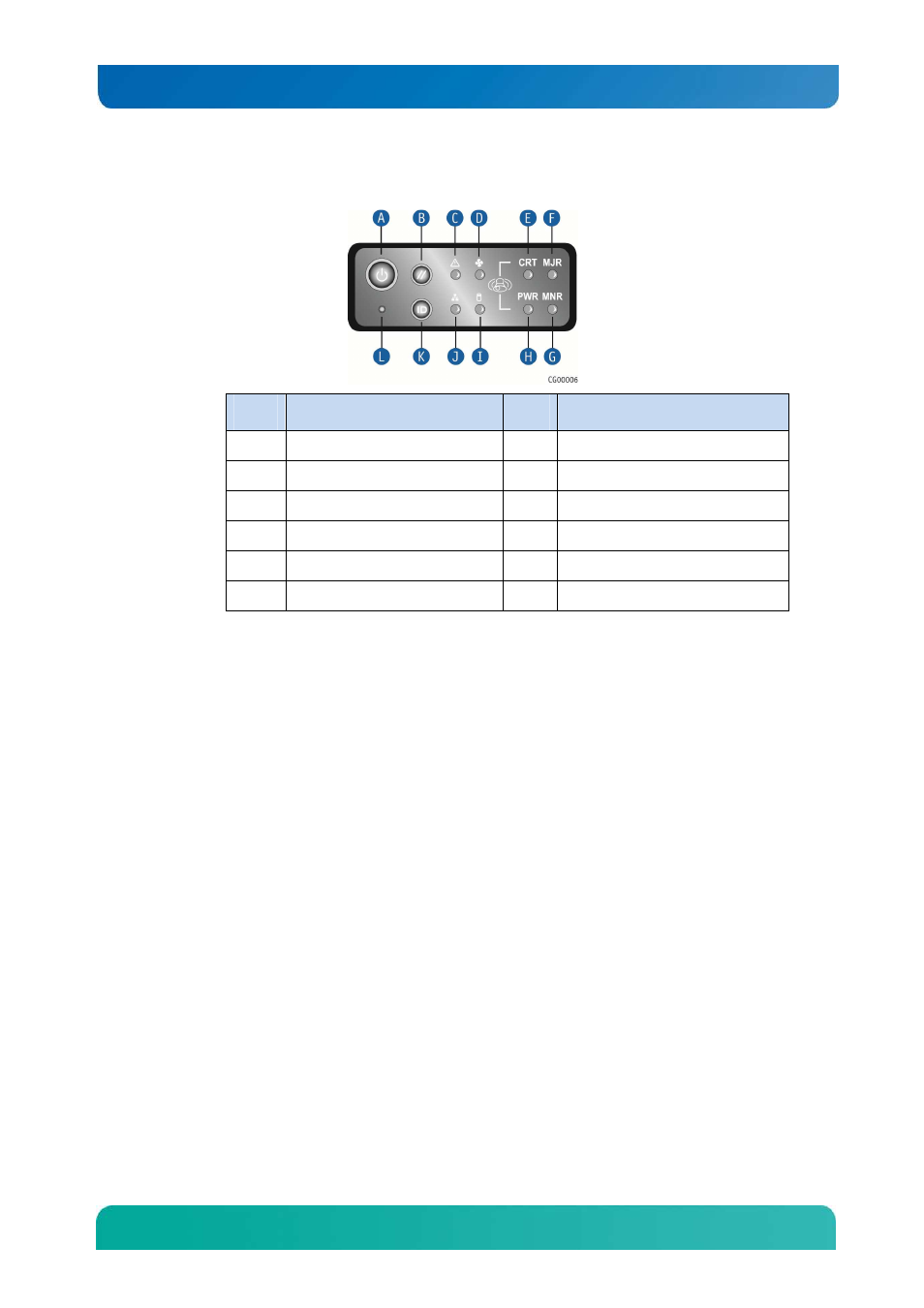

Figure 5. CG2200 Server Control Panel
Item Description Item Description
A Power button G Minor alarm (amber)
B System reset button H Power alarm (amber)
C Chassis information LED I HDD activity LED
D Fan status LED J NIC1/NIC2 activity LED
E Critical alarm (amber or red†) K Chassis ID button
F Major alarm (amber or red†) L NMI button
† Critical and Major alarm indicators are bi-color LEDs that can be configured to be yellow or
red by means of an SDR TAM setting. Yellow is the default color.
2.3 CG2200 Server Back Panel
Figure 6 shows the back panel of the CG2200 server.
