Document #98219101 1 - 3

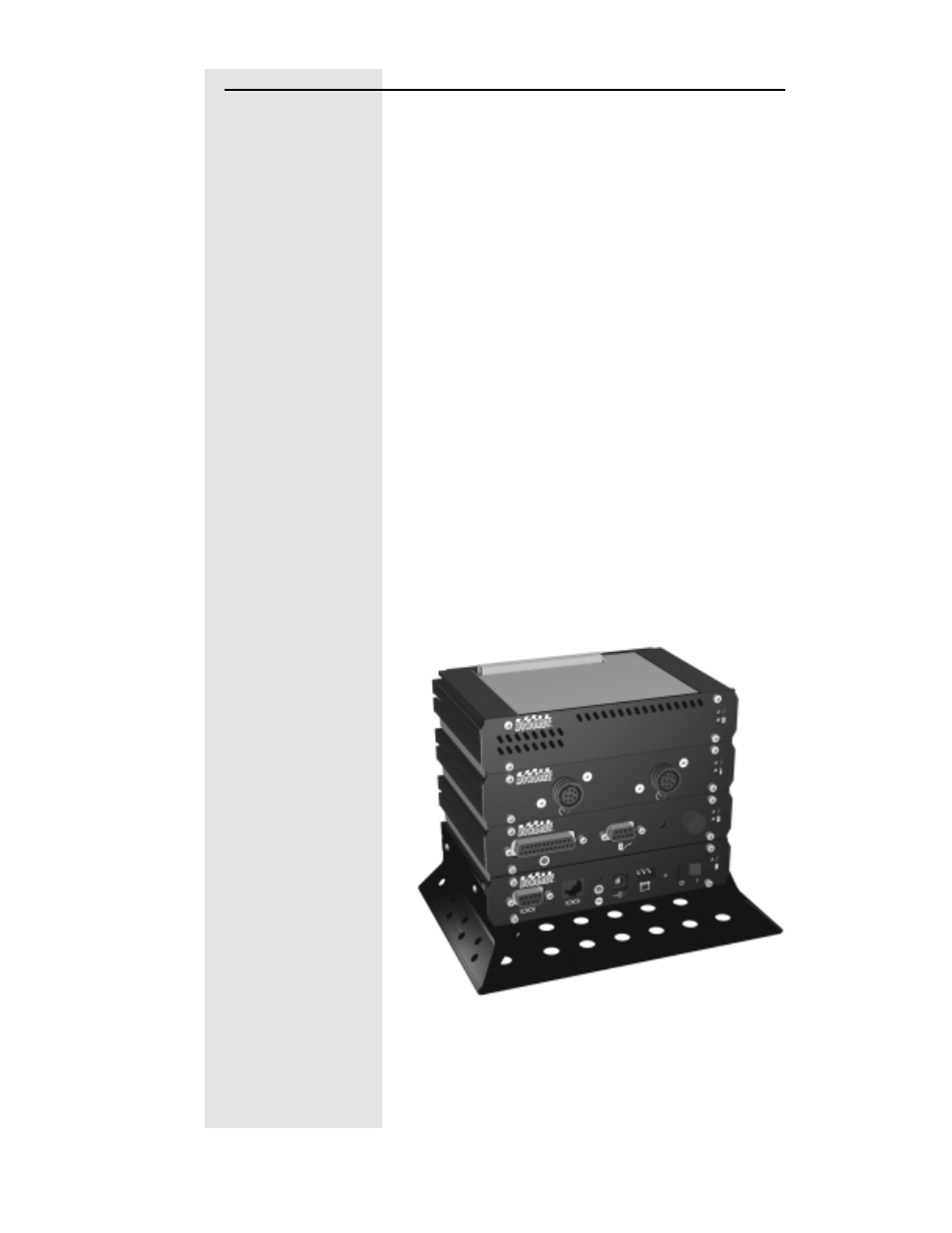

DynoWare EX+ Placement

The DynoWare EX+ system is comprised of

four modules:

the CPU module, the

Dynamometer Input/Output module, the

RPM module and the Atmospheric module.

The Dynamometer Input/Output module

connects to the dynamometer.

(A 20 foot

(6.1 meter) long cable is provided.) The CPU

module connects to a personal computer. (A

12 foot (3.7 meter) long cable is provided.)

RPM Pickups and a Hand Held Pendant also

connect to the modules.

These modules

need to be located where they will be visible

during a dyno run. It is recommended that

they be mounted on a shelf on the wall or on

a cart along side the PC. An optional

extended Hand Held Pendant cable is

available if needed.
