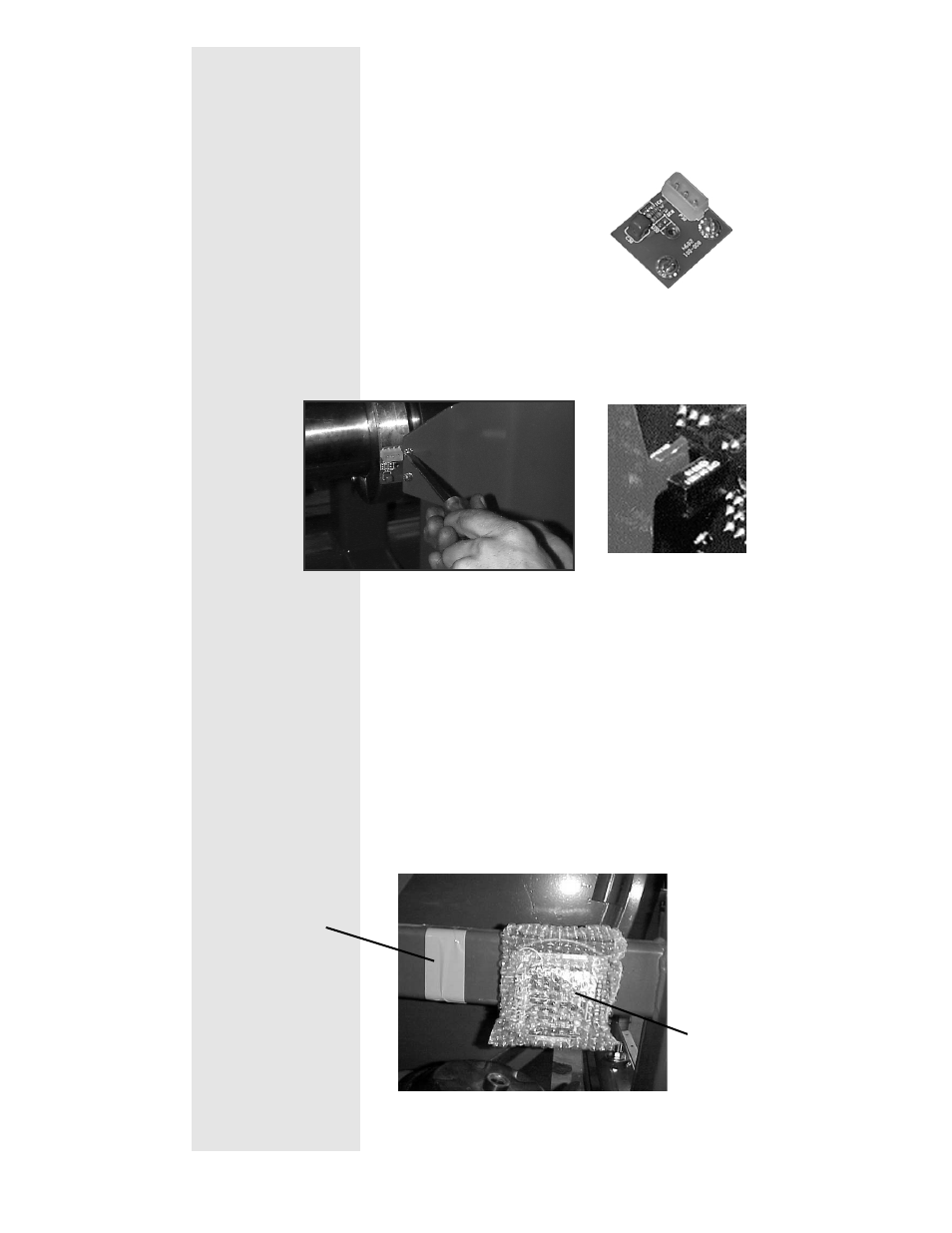

Step 1
Install the pickup card.
- Remove the pickup card and the 2 screws
from the bubble bag.
- Attach to the pickup bracket on the dyno so
the optical pickup is facing the axle and the
3 pronged plug is facing away.
- Turn the drum carefully and check to see
that both pickup tabs on the dyno axle go
through the center of the optical pickup on
the pickup card.
Step 2
Prepare the Breakout Board
- Remove the Bubble Bag from the Breakout
Board and bracket.
This tape secures
the Pick Up Card to
the
dyno during
shipping.
Break Out Board
