Document #98219101 4 - 7

Connecting the Secondary Inductive
Pickup

The secondary inductive pickup cannot be in contact with, or it’s
connecting wire be crossing, other engine electrical wires or stray
RF interference may result.

1. Clip the secondary inductive pickup around one spark plug

wire.

2. Route the inductive pickup cable clear of devices that produce

electronic noise (spark plug wires, coil wire, coil etc.) to the
dyno electronics RPM module.

Note: Inductive pickup placement is important. Position the
inductive pickup so that it is not making contact with any
other spark plug wires. Separate the spark plug wire from the
spark plug wire bundle for proper operation.

Note: You must ground the vehicle to the dyno for the
electronics to function properly.

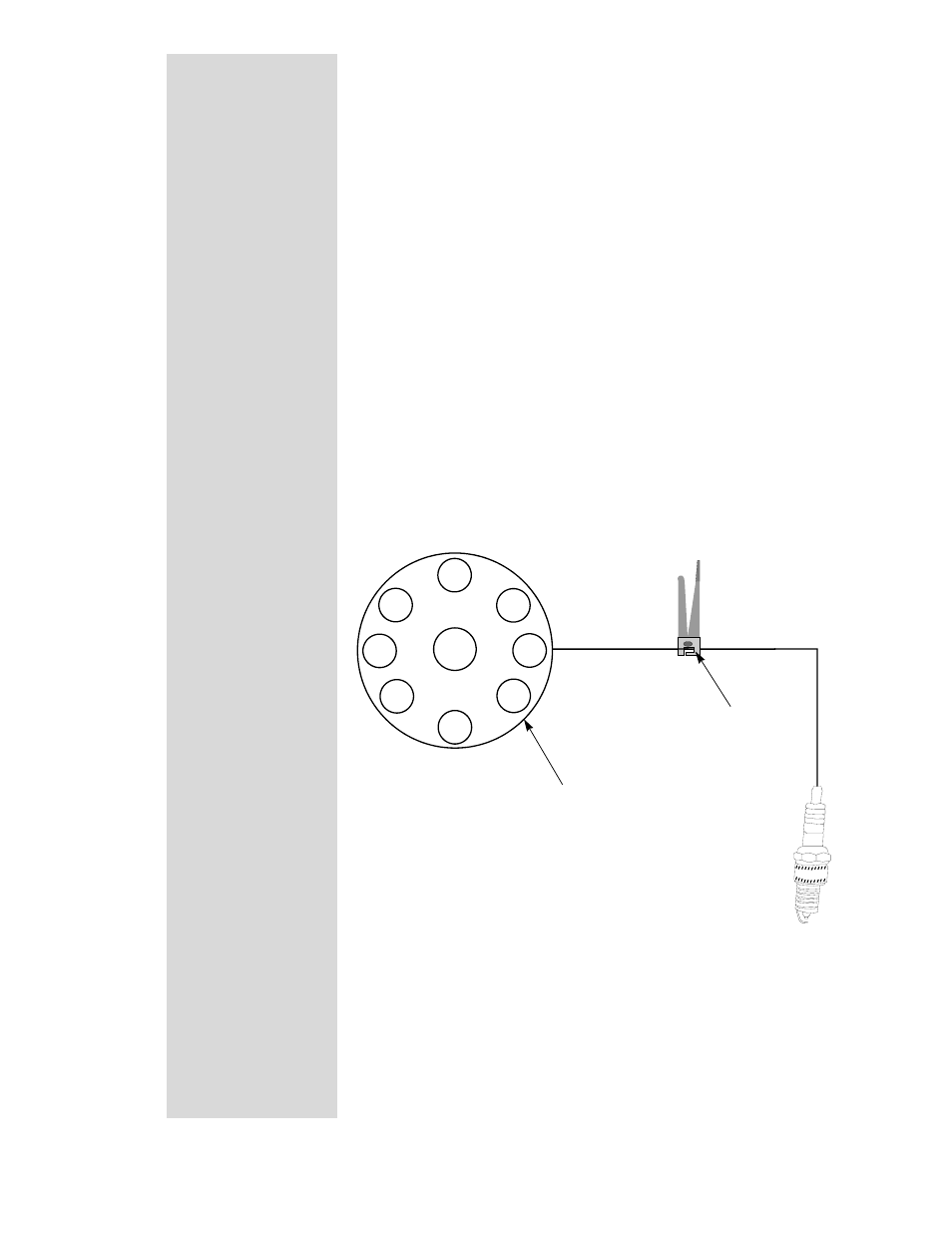

connect secondary

inductive pickup on a

single spark plug wire

automobile

distributor
