Step 9
Tighten the roller part of the interface to the
lift’s cross beam. Make sure that it runs
smoothly in the receiver part of the kit.
Installing the Brakes
Use the following steps to install the brakes
on your Dynojet Dyno:
Step 1
Locate the brake hardware. You should have
six 5/8" bolts, six lock washers, six flat
washers, six nuts (mounted on the dyno) and
two brakes.
Step 2
The brakes mount on the inside of the dyno
frame with the air canister on the top. Identify

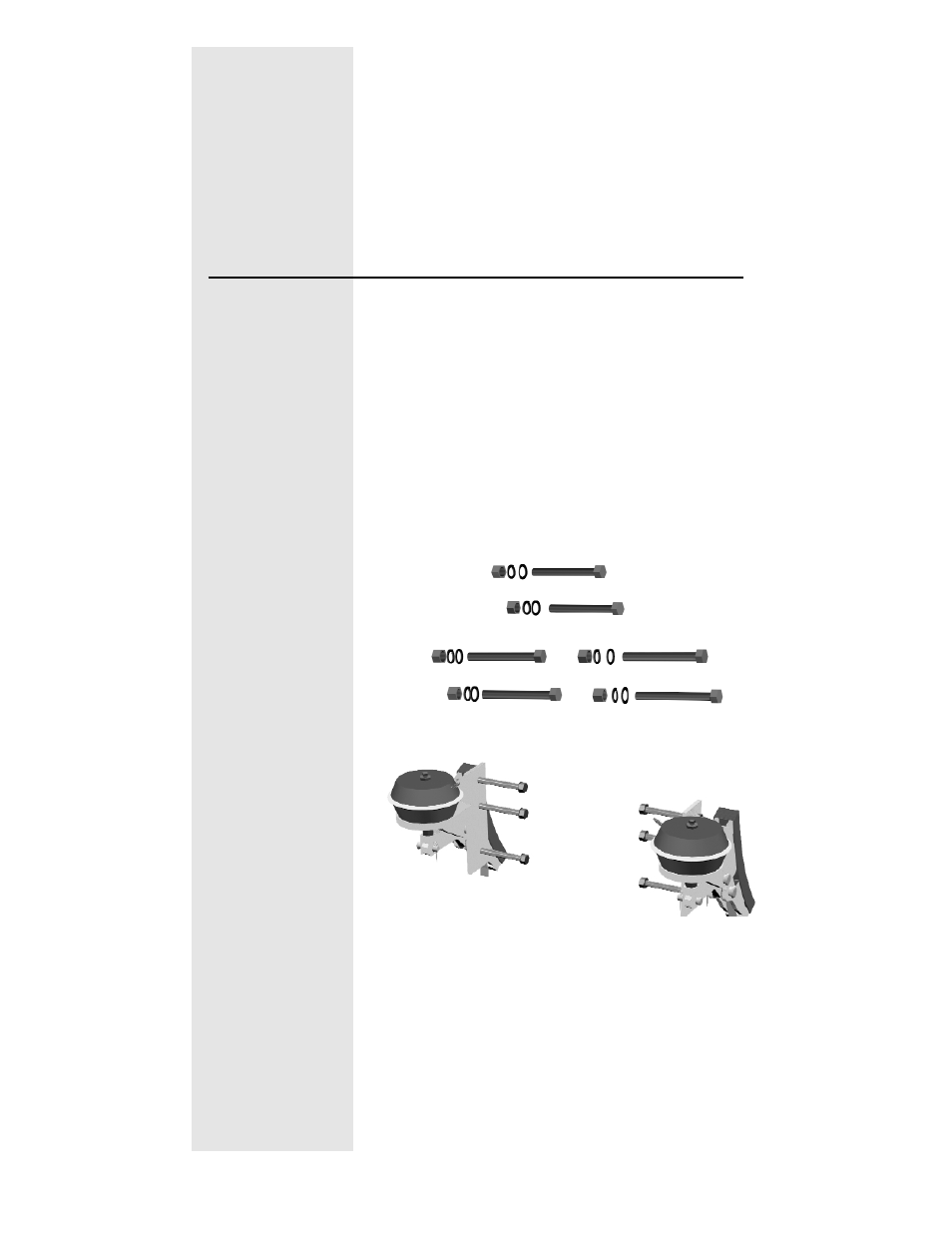

the left and right brakes. As shown in the
figure above, the brakes can only be
mounted one way.
Step 3
Left
Right
