Loading the vehicle – Dynojet 248x: Installation Guide User Manual
Page 46

4 - 2 Document #98219101
Loading the Vehicle
Use the following steps to load a vehicle on the dyno.
1. Verify your computer is running. Set the dyno brake on by
pressing the red button on the hand held pendant.
2. For four or all-wheel drive vehicles, measure the wheel base
on the vehicle and adjust the 224-4WD dyno to that
dimension before driving the vehicle on the dyno.
CAUTION: Do not make any adjustments with the vehicle on
the dyno.
3. Drive the vehicle onto the dyno and align the vehicle straight
with the dyno.
4. Stop the vehicle when the drive axle is centered on the drum.

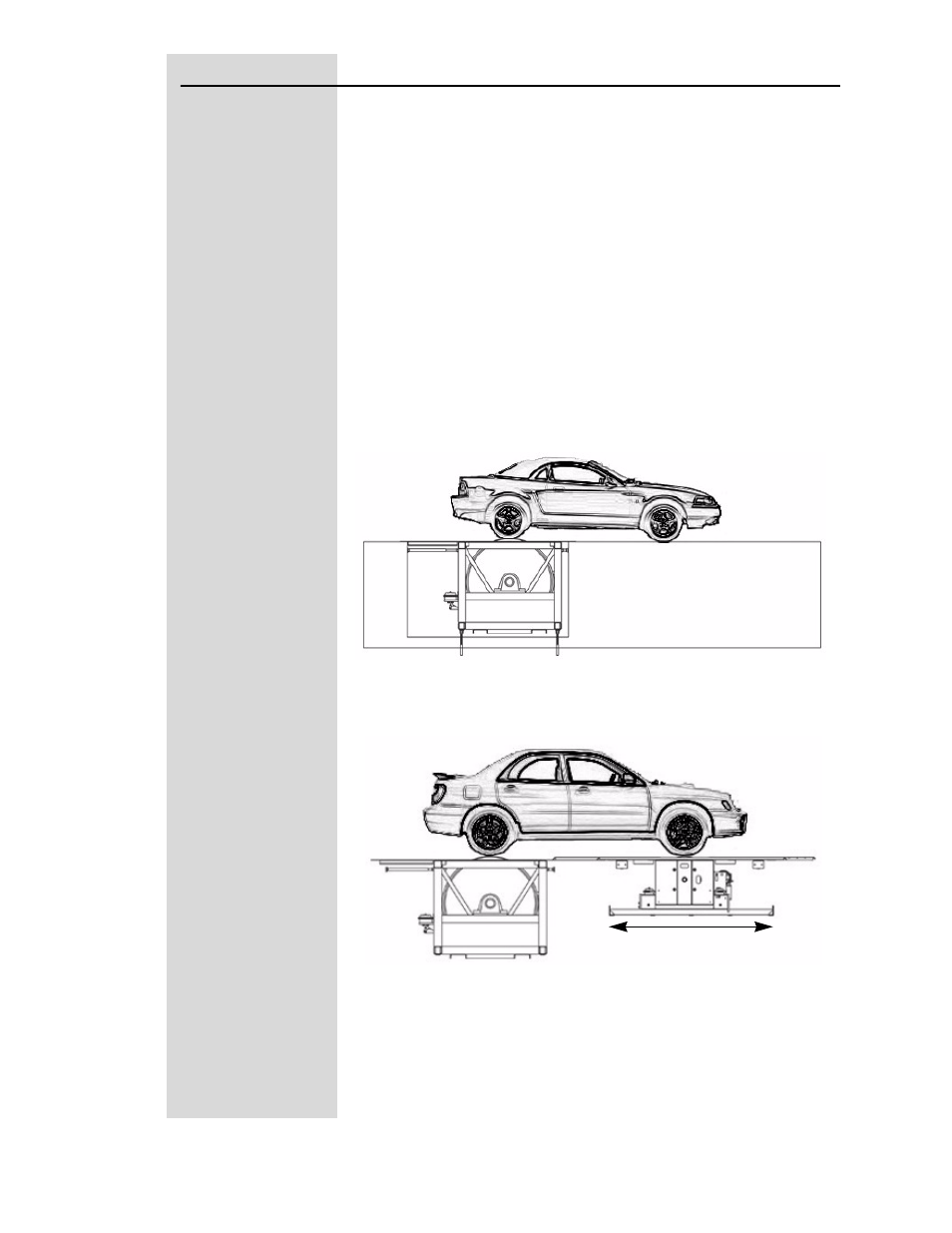

center drive axle on dyno drum
center drive axle on dyno drum
adjust wheel base of
224-4WD dyno
