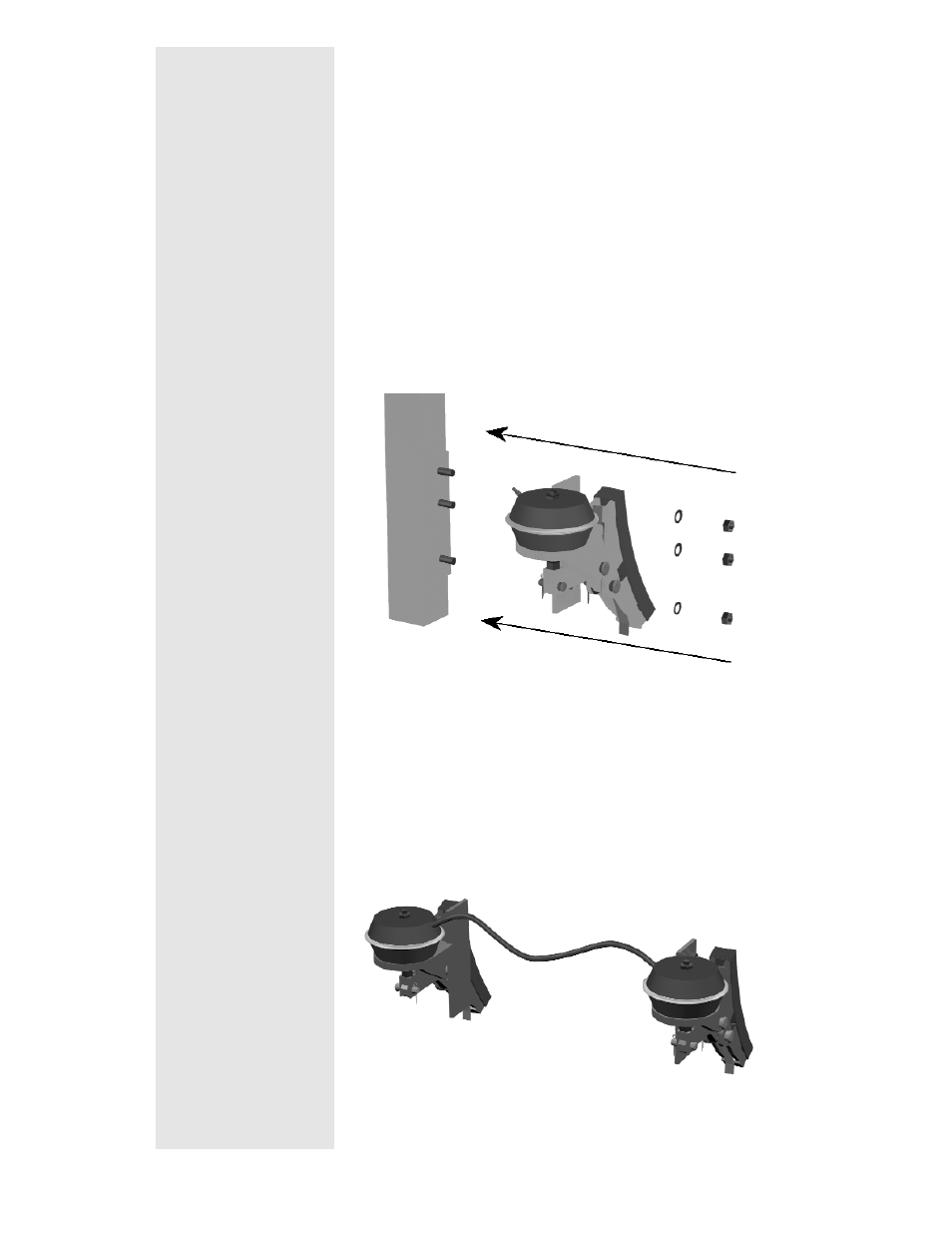

Mount the brakes on the dyno frame. Use

three bolts, three nuts, and three lock

washers on each brake weldment.

- Remove the nuts and lock washers from

the dyno frame leaving the bolts in place.

- Place the brake weldments over the bolts

on the frame.

- Finish

the

installation

of

the

brake

weldments with the nuts and lock washers.

Step 4

Install the air hose between the brakes, using

the ports on the sides of the air canisters.
