Motorcycle Dynamometer Installation Guide

C H A P T E R 3
Monitor Arm

3-36

I

NSTALLING

THE

A

RMS

AND

T

RAY

1

Place a bushing on the pin of the first arm and insert the arm into the upright.
Both arms are identical and interchangeable.

2

Place a bushing on the pin of the second arm and insert the arm into the first arm.

3

Place a bushing on the pin of the tray and insert the tray into the second arm.

4

Insert a plastic cap in both ends of each arm.

5

Check for clearance between the monitor arm and motorcycle, walls, ceiling, etc.
Note: Dynojet does not recommend placing the computer CPU on the
monitor/keyboard tray since vibration can cause damage to the computer.

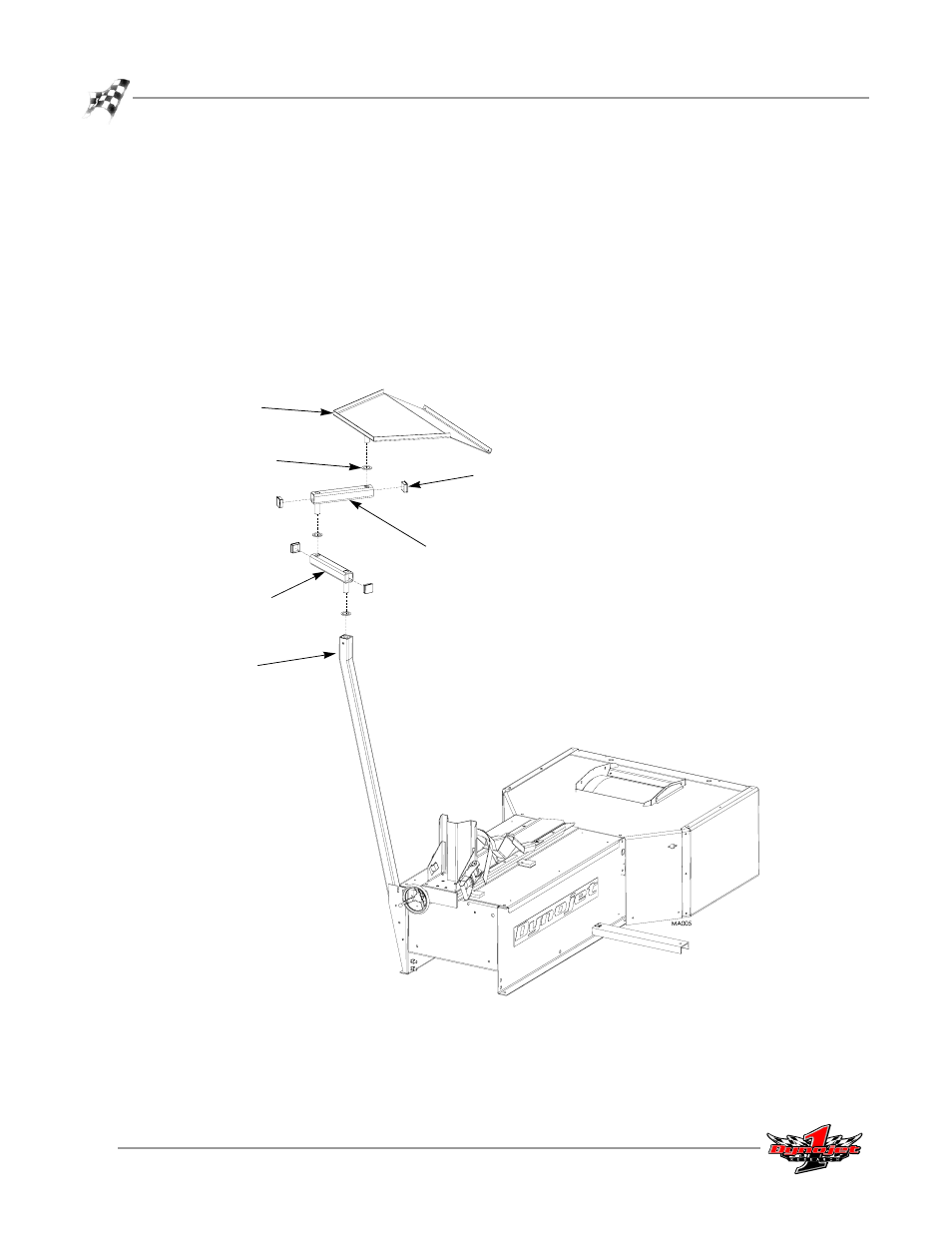

Figure 3-45: Install the Arms and Tray

tray

second arm

bushing

first arm

upright

plastic cap
