O P T I O N A L A C C E S S O R I E S
Dual Fan
Version 3 Motorcycle Dynamometer Installation Guide
3-23
4 Flip arm A over, place the poly washer on the stud, and insert into the main
bracket from the top.
5 Flip arm B over, place the poly washer on the stud, and insert into arm A from the
bottom. Secure Arm B using the bolts, washers, and spacers removed earlier.
Note: Arm B is the only arm with a threaded stud.
6 Replace the four hand knobs removed earlier.
7 Continue with “Installing the Extension Arm Assembly” on page 3-19, “Installing
the Fan Assemblies” on page 3-20, and “Installing the Outlet Box” on page 3-21 to
complete the fan installation.

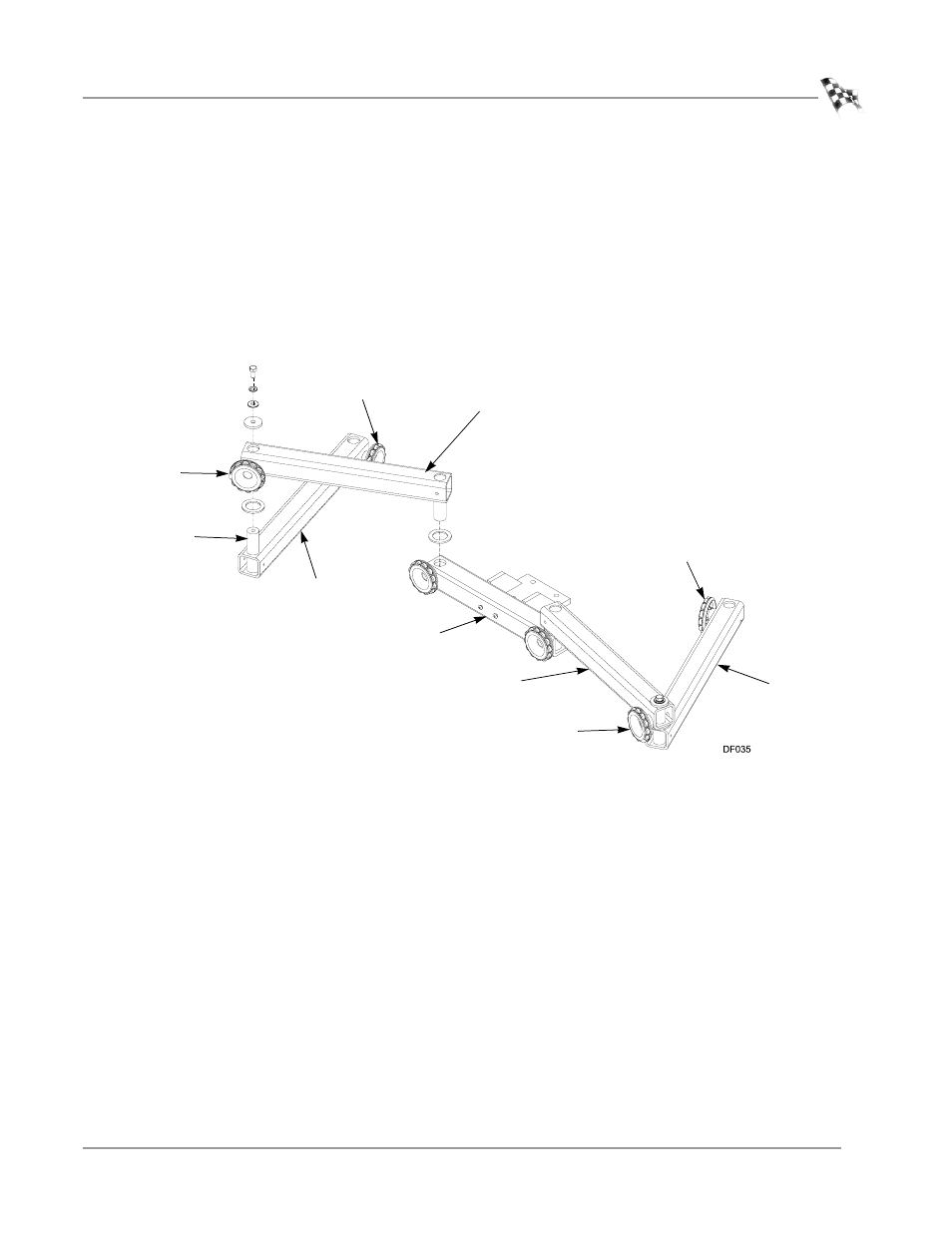

Figure 3-30: Modify the Extension Arm Assembly—New Arm Configuration
arm B
arm A
arm A arm B
hand knob
hand knob
hand knob
hand knob
threaded stud
main bracket
