O P T I O N A L A C C E S S O R I E S
Extended Carriage
Version 3 Motorcycle Dynamometer Installation Guide
3-25
R EMOVING THE T IRE C ARRIAGE
1 Using a 5/32-inch allen wrench, remove the two button-head screws securing the
carriage screw support bracket and remove the bracket.

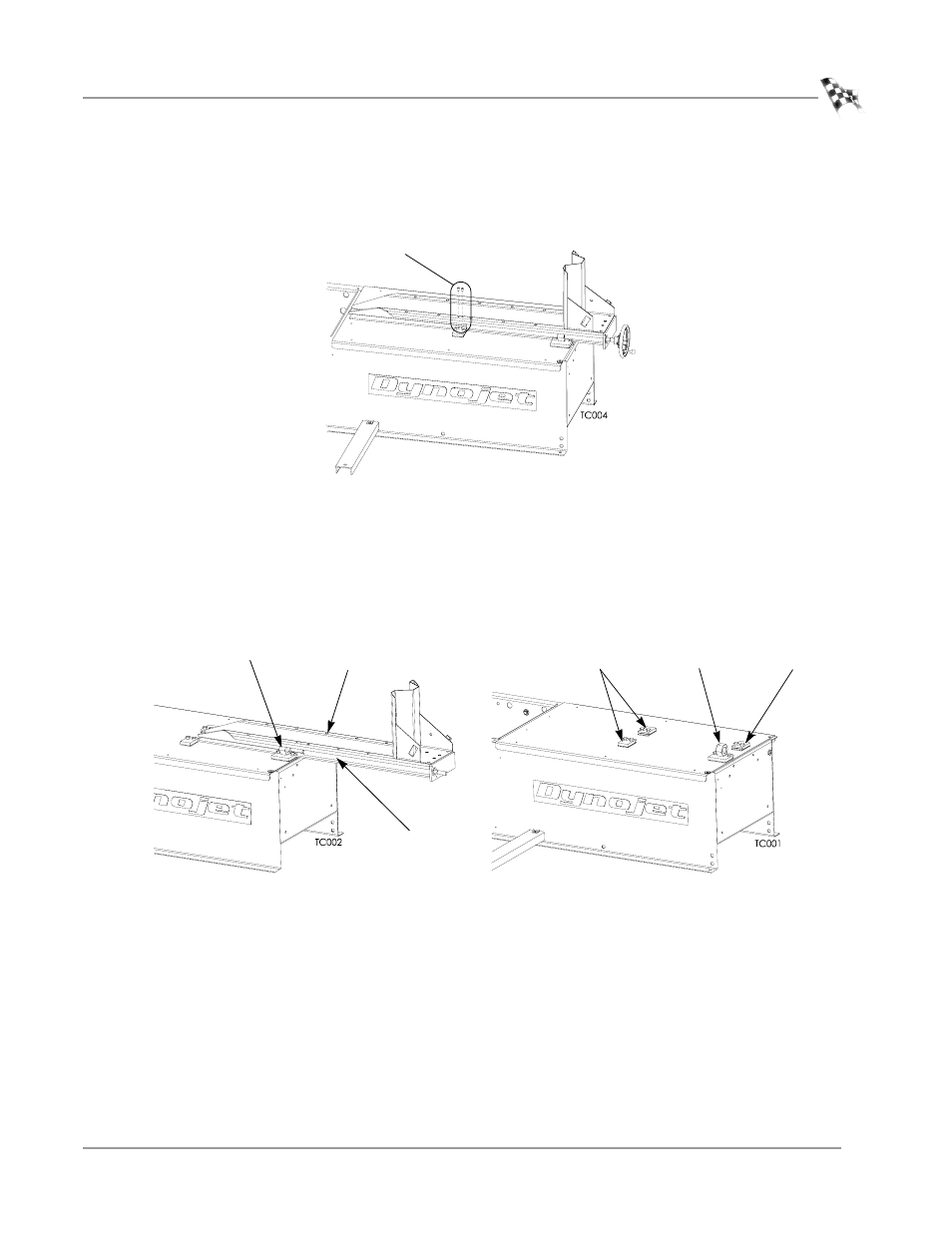

Figure 3-31: Remove the Carriage Screw Support Bracket
2 Unscrew the carriage until it is free from the nut block. Slide the carriage off the
dyno.
3 Using a 1/2-inch wrench, remove the bolts (discard bolts) and washers securing
the nut block and front clamp to the dyno cover and set aside.
4 Using a 1/2-inch wrench, remove the bolts and washers securing the two rear
clamps to the dyno cover and set aside.
Figure 3-32: Remove the Tire Carriage, Nut Block, and Clamps
carriage screw support bracket
nut block front clamp
nut block
slide carriage
off dyno
carriage screw
rear clamps
