Motorcycle Dynamometer Installation Guide
C H A P T E R 1
Uncrate the Dyno
1-8
7 Lift the dyno off the crate and move into position in your dyno room.
8 Remove the metal outrigger attached to the bottom of the crate.

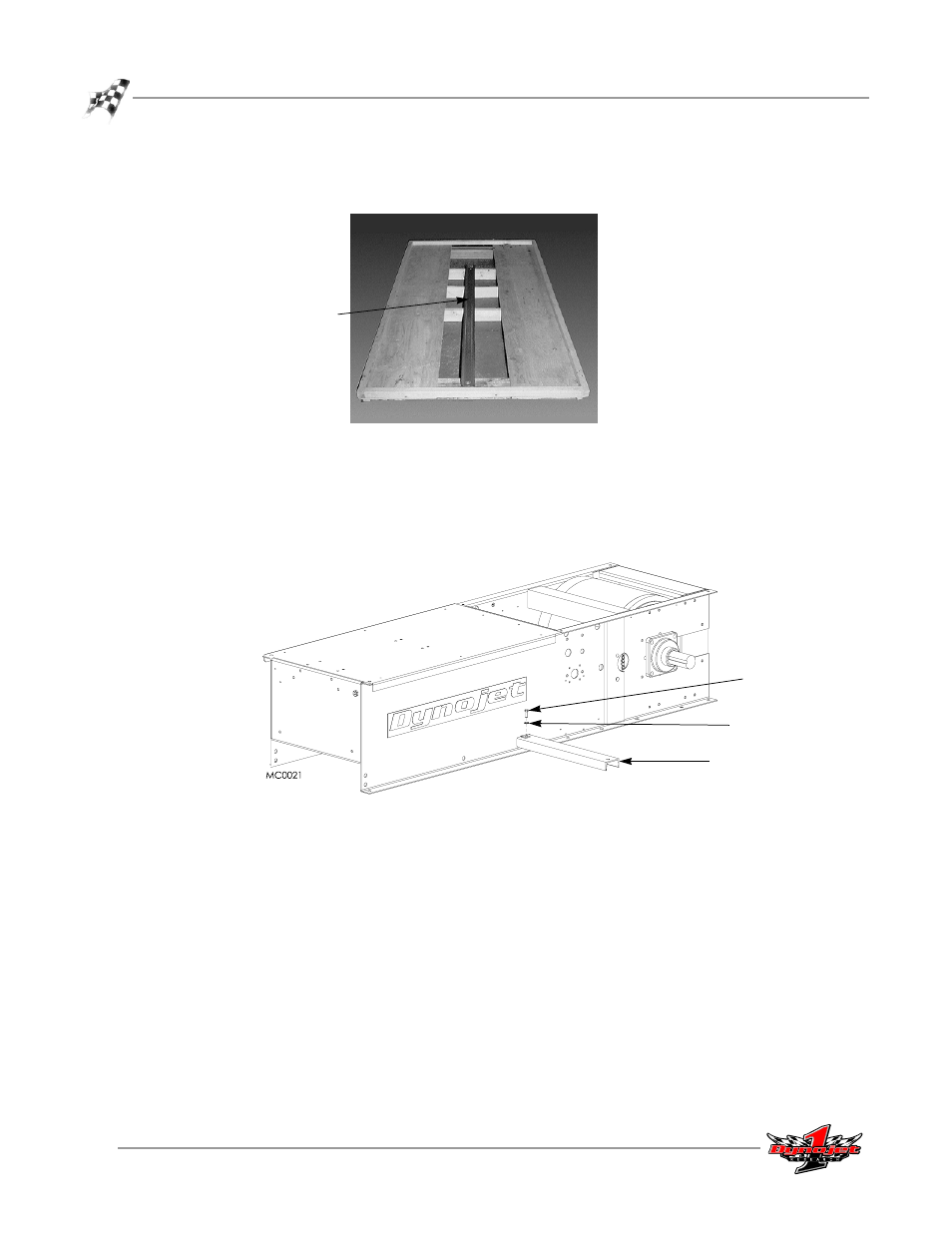

Figure 1-8: Remove the Metal Outrigger from the Crate
9 Attach the metal outrigger to the dyno. The outrigger is used when strapping the
bike to the dyno.
9a
Slide the outrigger through the rectangular hold in the dyno frame.
9b Secure the outrigger to the dyno using two 3/8-inch bolts and lockwashers.
Figure 1-9: Secure the Metal Outrigger to the Dyno
metal outrigger
bolt
lock washer
metal outrigger
