O P T I O N A L A C C E S S O R I E S
Dual Fan
Version 3 Motorcycle Dynamometer Installation Guide
3-21
I NSTALLING THE O UTLET B OX
The outlet box mounts to the main bracket on the extension arm assembly. Install the
outlet box the same way for dynos with or without a power carriage installed.
1
Remove the two button-head screws from the front of the main bracket.
2 Secure the outlet box bracket to the main bracket using the two button-head
screws you just removed.
Note: Extra button-head screws are included in the hardware bag if needed.
3 Plug the power cord into a 120 volt (North America) or 240 volt (Europe and
Australia) power source.
Note: When using the dual fan assembly in conjunction with an eddy current
brake (retarder), make sure the dual fan assembly is plugged into a separate
circuit than the retarder.
The current draw at 120 volts is 17 amps and at 240 volts is 8 1/2 amps.
4 Activate the fans by flipping the toggle switch on the motors. The fans are
independent of one another; each fan can be turned on and off individually.
Note: Be sure the fans are free and clear of any obstruction. The fans can run at
any time once the cord is plugged into a power source.

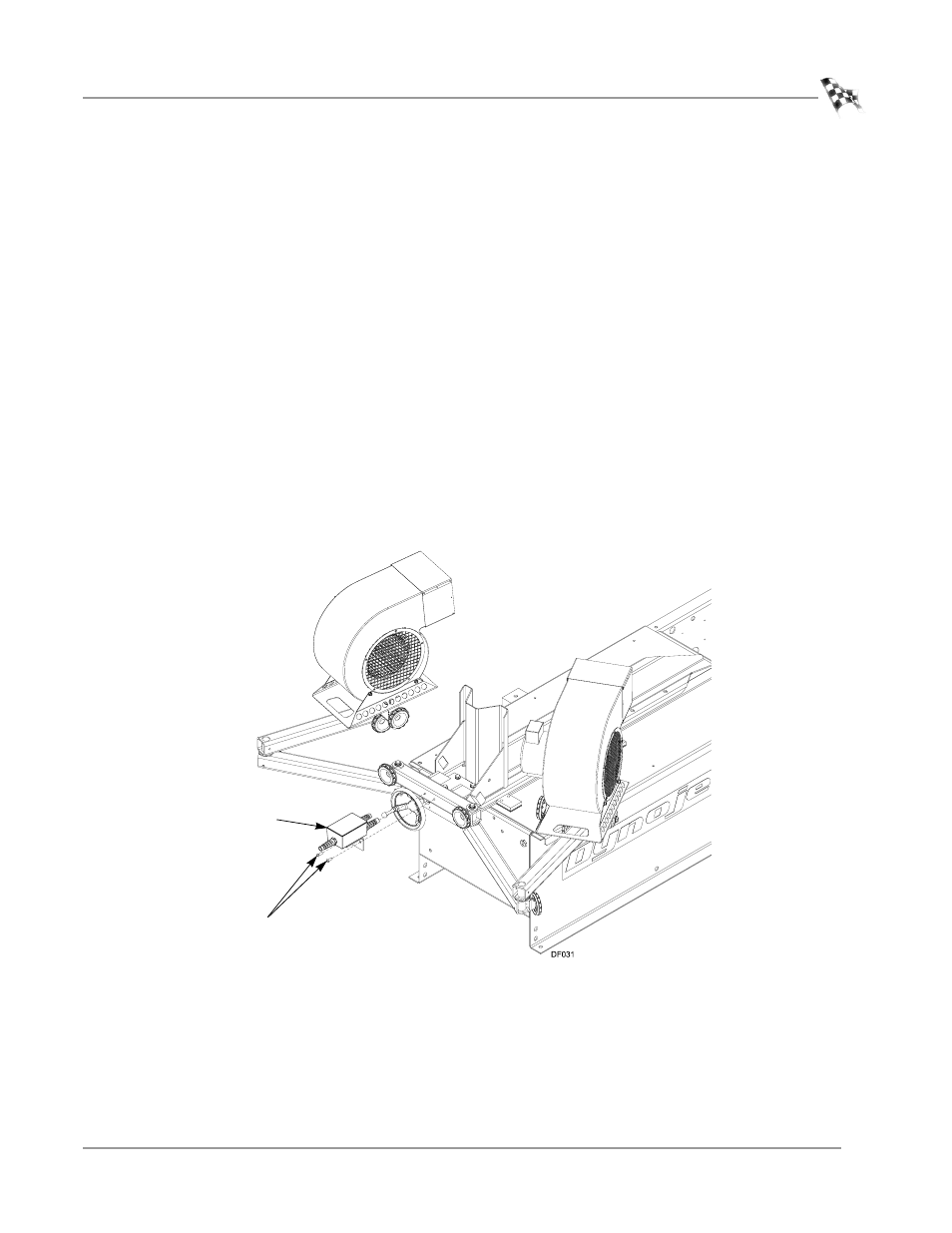

Figure 3-28: Install the Outlet Box
outlet box and
bracket
screw
