Motorcycle Dynamometer Installation Guide
C H A P T E R 1
Ramp Assembly
1-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RAMP ASSEMBLY
The ramp is assembled by bolting the ramp face, the ramp supports, and the ramp
bracket together.
Note: You will need to supply additional wood screws or nails to secure the ramp
supports to the ramp face.
1 Using the ramp bracket as a template, mark and drill six holes in the ramp face
using a 3/8-inch bit.
2 Secure the ramp face, supports, and bracket using six six-inch carriage bolts, six
flat washers, six lock washers, and six nuts.
3 Make sure the supports are aligned properly with the ramp face and secure the
supports to the ramp face using wood screws or nails.

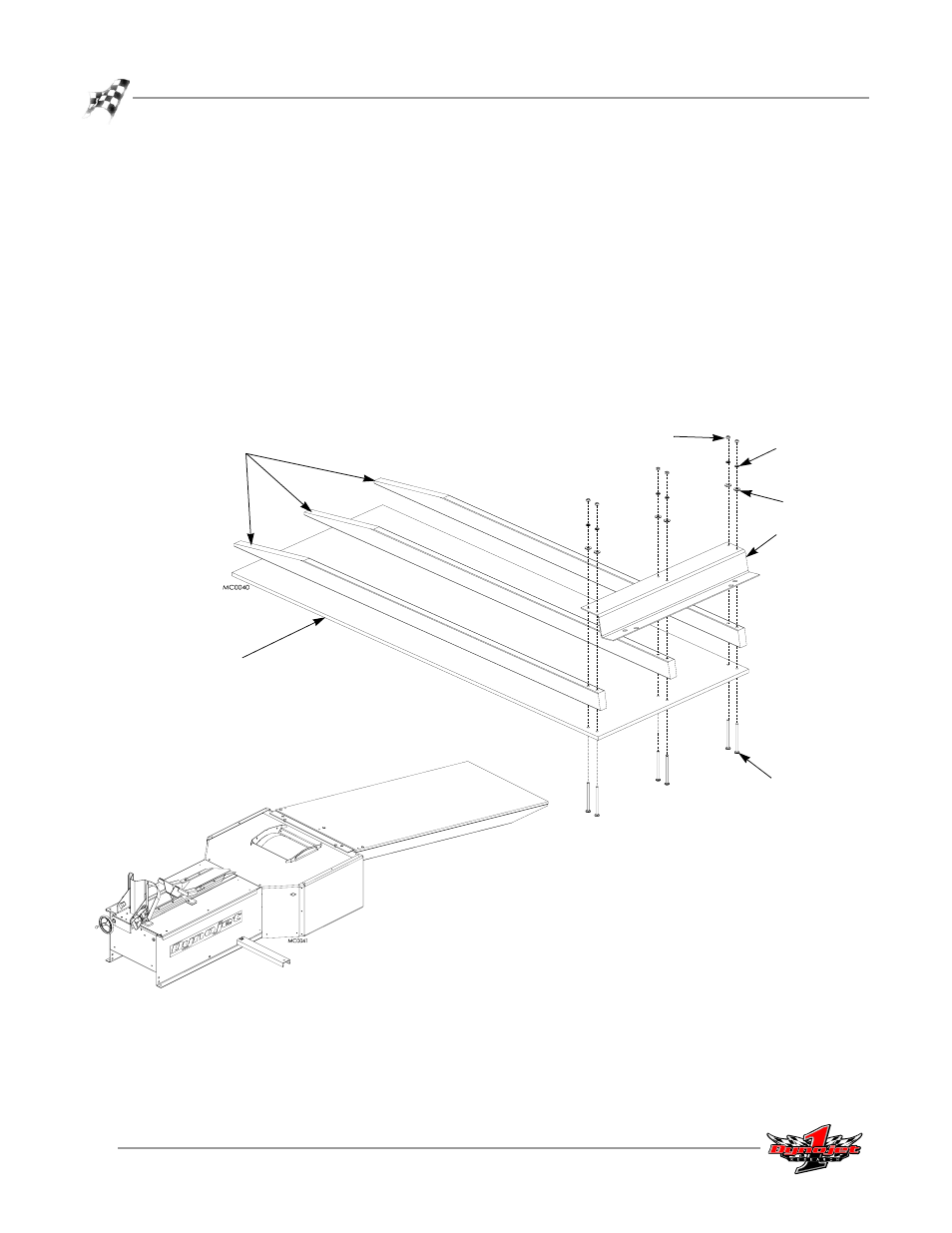

Figure 1-17: Ramp Assembly
ramp face
ramp support
ramp bracket
carriage bolt
nut
lock washer
flat washer
