O P T I O N A L A C C E S S O R I E S
Monitor Arm
Version 3 Motorcycle Dynamometer Installation Guide
3-35
I NSTALLING THE M ONITOR A RM B RACKET
1 Drill a 1/2-inch hole through the aluminum deck plate as shown in Figure 3-44.
Use the existing hole under the deck plate as a guide.
2 Fasten the top of the monitor arm bracket to the dyno using a 3/8-inch bolt,
3/8-inch lock washer, and 3/8-inch flat washer.
Note: Do not tighten.
3 Secure the bottom of the bracket to the dyno using two 1/2-inch bolts,
four 1/2-inch washers, two 1/2-inch lock washers, and two 1/2-inch nuts.
4 Fully tighten all three bracket bolts.

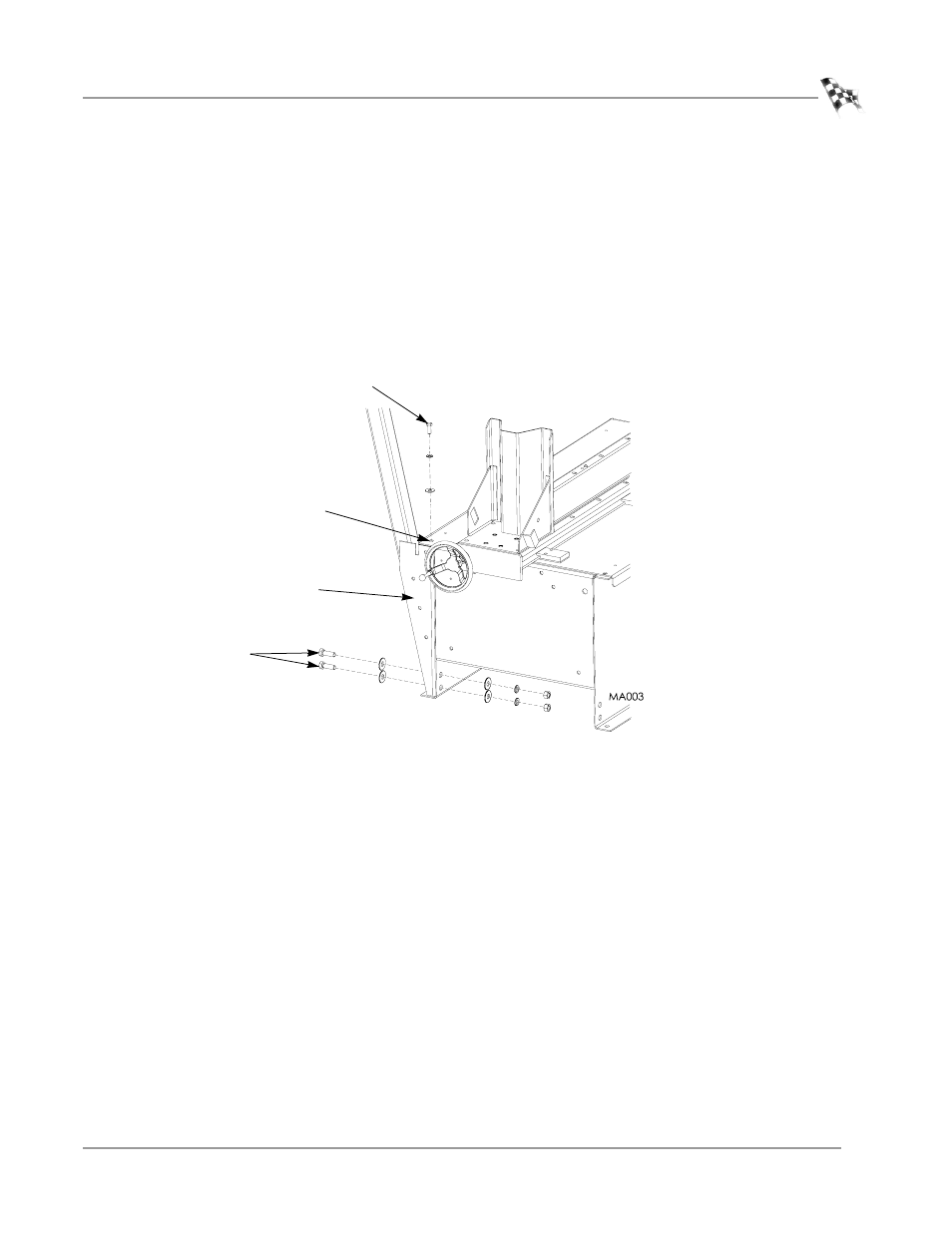

Figure 3-44: Install the Monitor Arm Bracket
monitor arm bracket
drill hole
3/8-inch bolt
1/2-inch bolt
