O P T I O N A L A C C E S S O R I E S

Air Brake

Version 3

Motorcycle Dynamometer Installation Guide

3-7

I

NSTALLING

THE

C

ALIPER

A

SSEMBLY

1

Tighten the two bolts shown in Figure 3-39.

2

Remove the four bolts and washers in the top and bottom right corners (as shown
in Figure 3-10) and set aside. These bolts will be used to mount the caliper
assembly in step 3.

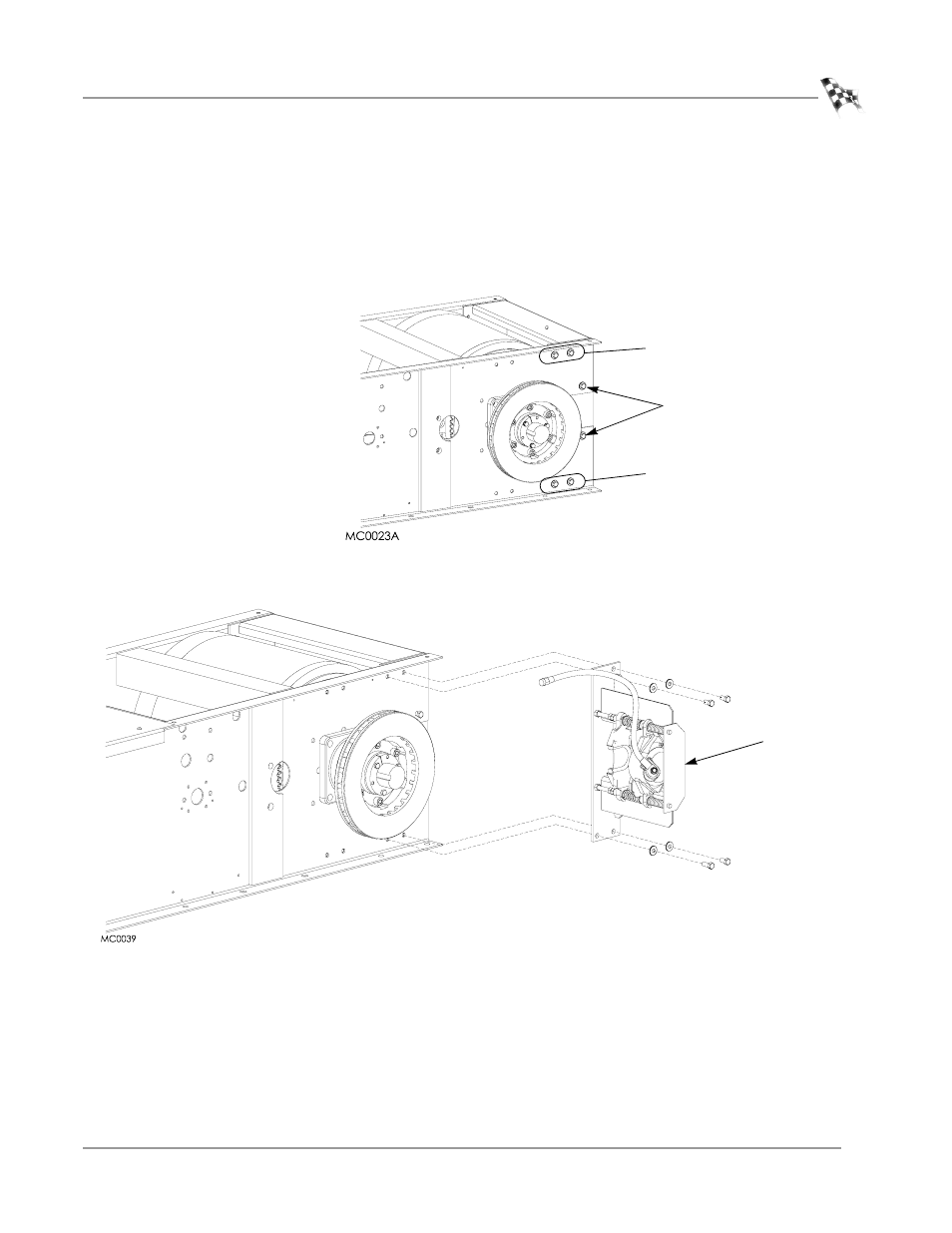

Figure 3-10: Caliper Assembly Mounting Bolts

3

Secure the caliper assembly with the four bolts and washers removed in step 2.

Figure 3-11: Secure the Caliper Assembly

tighten

remove bolts and use to

mount caliper assembly

remove bolts and use to

mount caliper assembly

caliper assembly
