D Y N O I N S T A L L A T I O N A N D S E T U P
Uncrate the Dyno
Version 3 Motorcycle Dynamometer Installation Guide
1-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UNCRATE THE DYNO
Use the following steps to uncrate your dyno. You will need to provide equipment
capable of lifting a minimum of 1600 lb. (725 kg.) to move the crated dyno into
position in your dyno room.
1
Move the crated dyno to a clear area near your dyno room.
2 Remove the three ramp supports and the ramp face. If you ordered your dyno
without a ramp, skip to step 3.
Refer to “Ramp Assembly” on page 1-14 for ramp assembly instructions,

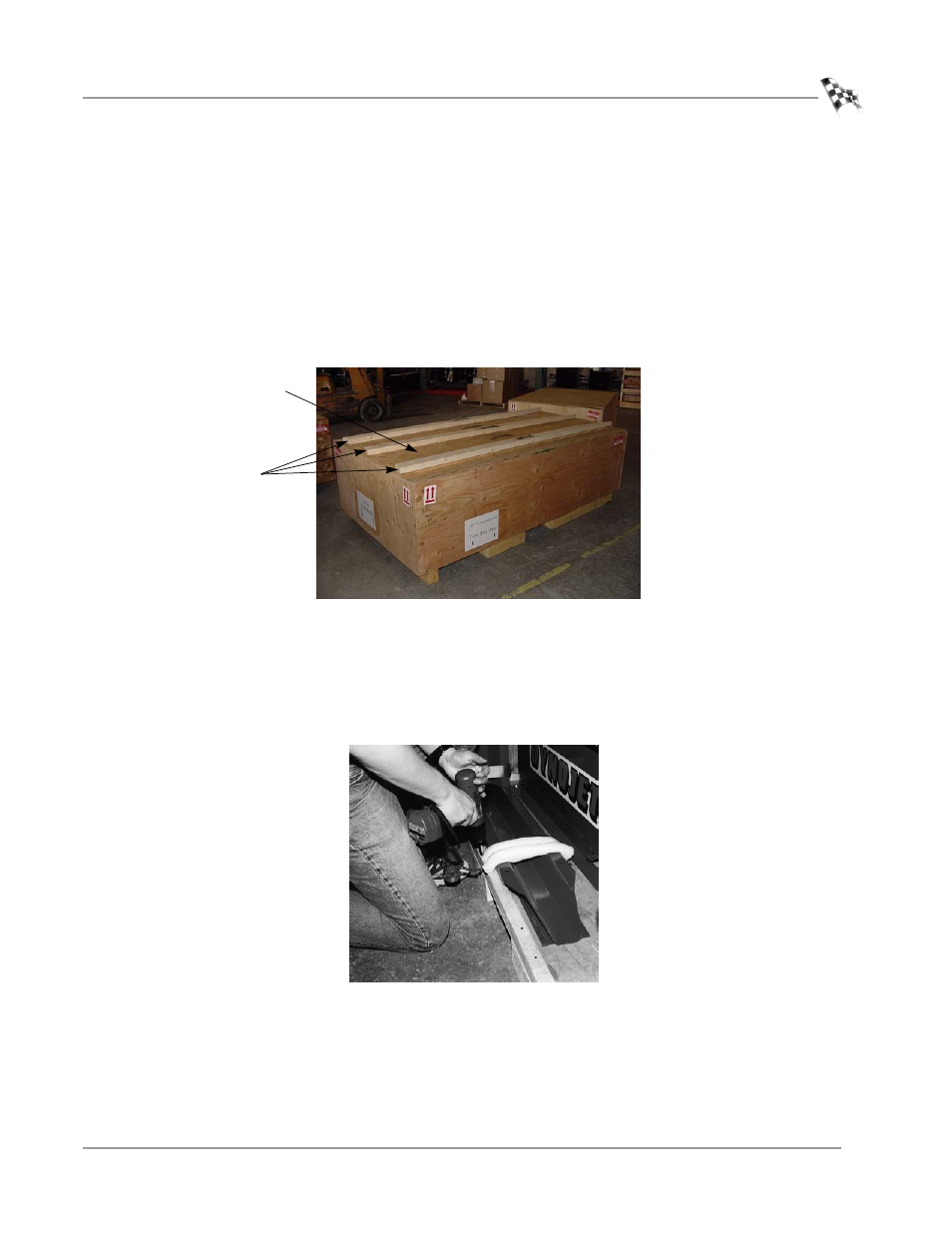

Figure 1-2: Remove the Ramp Supports and Face
3 Remove the top and sides of the crate.
3a
Use a pry bar, or large flat screwdriver, and a hammer to loosen and remove
the top of the crate.
3b Remove the crate braces and sides.
4 Remove the tire carriage. The tire carriage is fastened to the bottom of the crate.
Figure 1-3: Remove the Tire Carriage from the Crate
ramp supports
ramp face
