O P T I O N A L A C C E S S O R I E S
Dual Fan
Version 3 Motorcycle Dynamometer Installation Guide
3-19
I NSTALLING THE E XTENSION A RM A SSEMBLY
The fan extension arm assembly comes ready to mount to the tire stop on the dyno.
Note: If you have a power carriage installed on your dyno, you will need to make
adjustments to the extension arm assembly before mounting the assembly to the
dyno. Refer to “Modifying the Extension Arm Assembly (For Power Carriage
Only)” on page 3-22.
1 Remove the two screws securing the extension arm assembly to the crate and
remove the assembly.

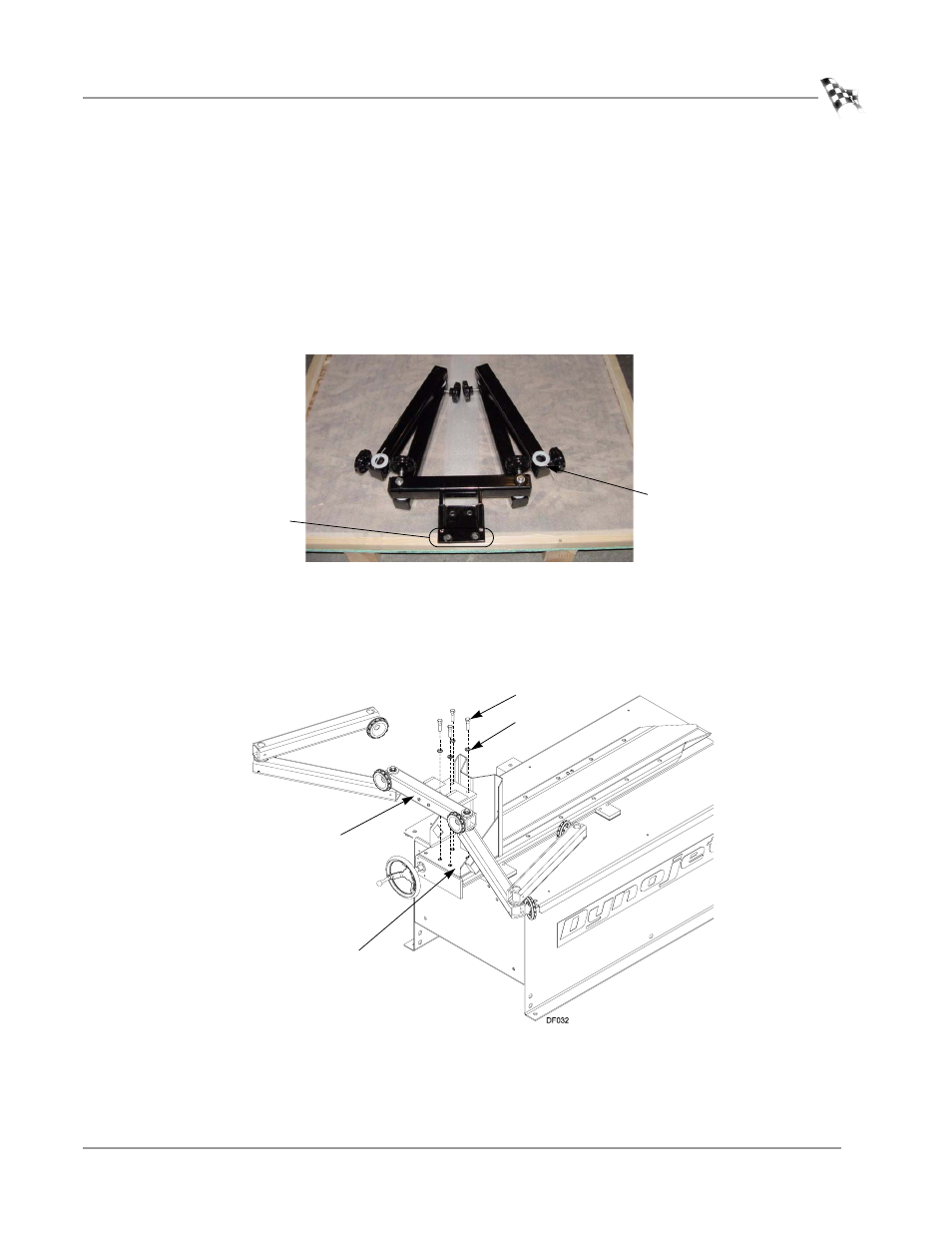

Figure 3-25: Remove the Extension Arm Assembly from the Crate
2 Secure the main bracket on the extension arm assembly to the tire stop using four
3/8-16 x 1-1/2-inch bolts and four 3/8-inch washers.
Note: If you modified the tire stop, you will also need to use four 3/8-inch nylock
nuts.
Figure 3-26: Secure the Extension Arm Assembly to the Tire Stop
remove screws
clip zip tie securing poly
washer before installing fan
bolt
washer
main bracket
tire stop
