Motorcycle Dynamometer Installation Guide
C H A P T E R 3
Extended Carriage
3-26
I NSTALLING THE E XTENDED C ARRIAGE S UPPORT B RACKET
1 Remove the eight screws securing the top cover to the dyno and set aside.
Remove the cover and set aside.
Removing the cover will make installing the extended carriage support bracket
less difficult.

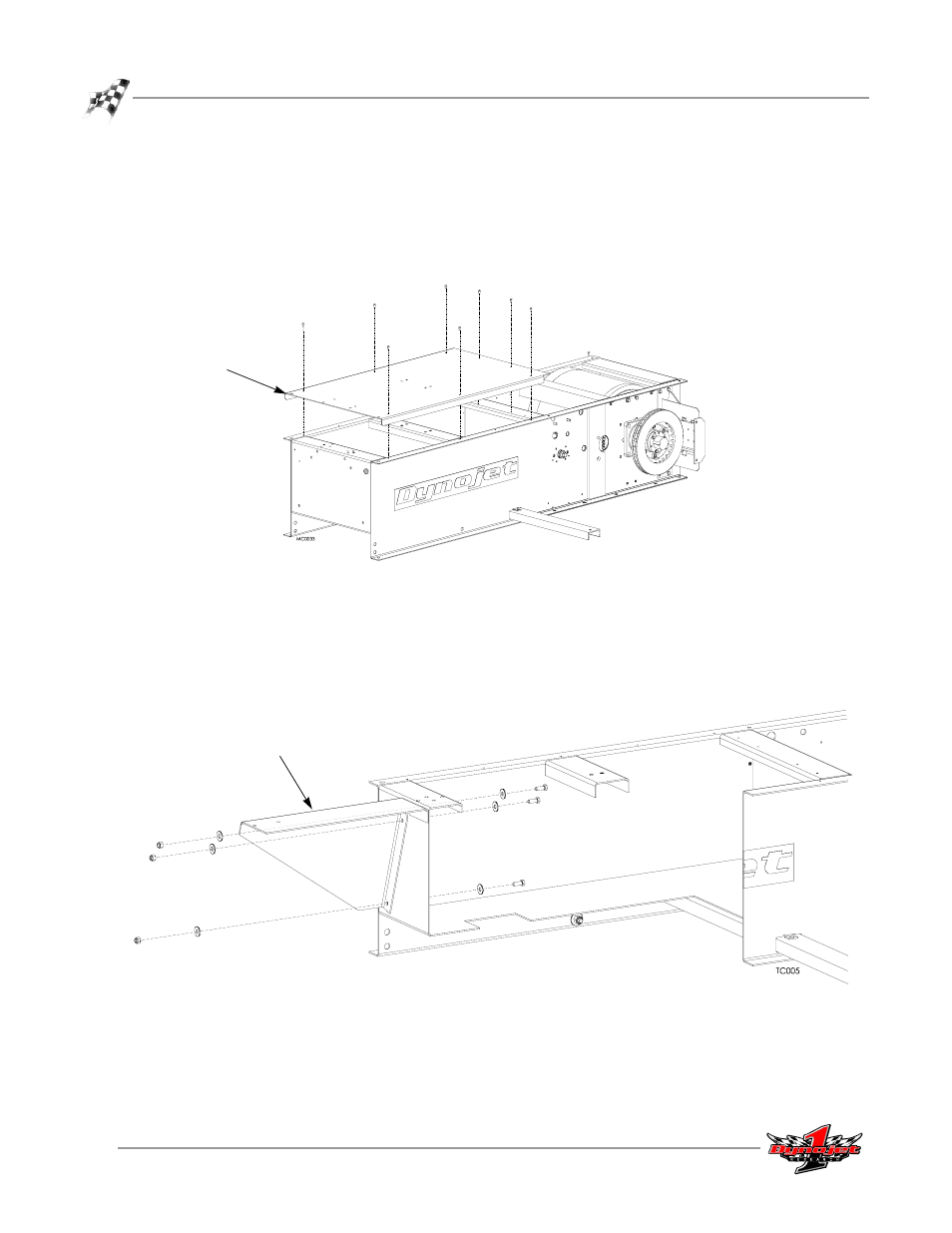

Figure 3-33: Remove the Top Cover
2 Loosely attach the extended carriage support bracket to the front of the dyno
using six 3/8 x 1-inch bolts, twelve 3/8-inch flat washers, and six 3/8-inch nylock
nuts. Be sure the bolts are installed from the inside of the dyno.
Figure 4 shows a cut away view of the extended carriage support bracket, dyno
frame, and three of the six mounting bolts.
Figure 3-34: Install the Extended Carriage Support Bracket
cover
extended carriage
support bracket
