Motorcycle Dynamometer Installation Guide

C H A P T E R 3
Air Brake

3-8

4

Adjust the space between the brake pad and the rotor making sure the rotor is
able to spin free of contact.
Loosen the jam nut and use the adjuster nut to move the brake pads in or out.

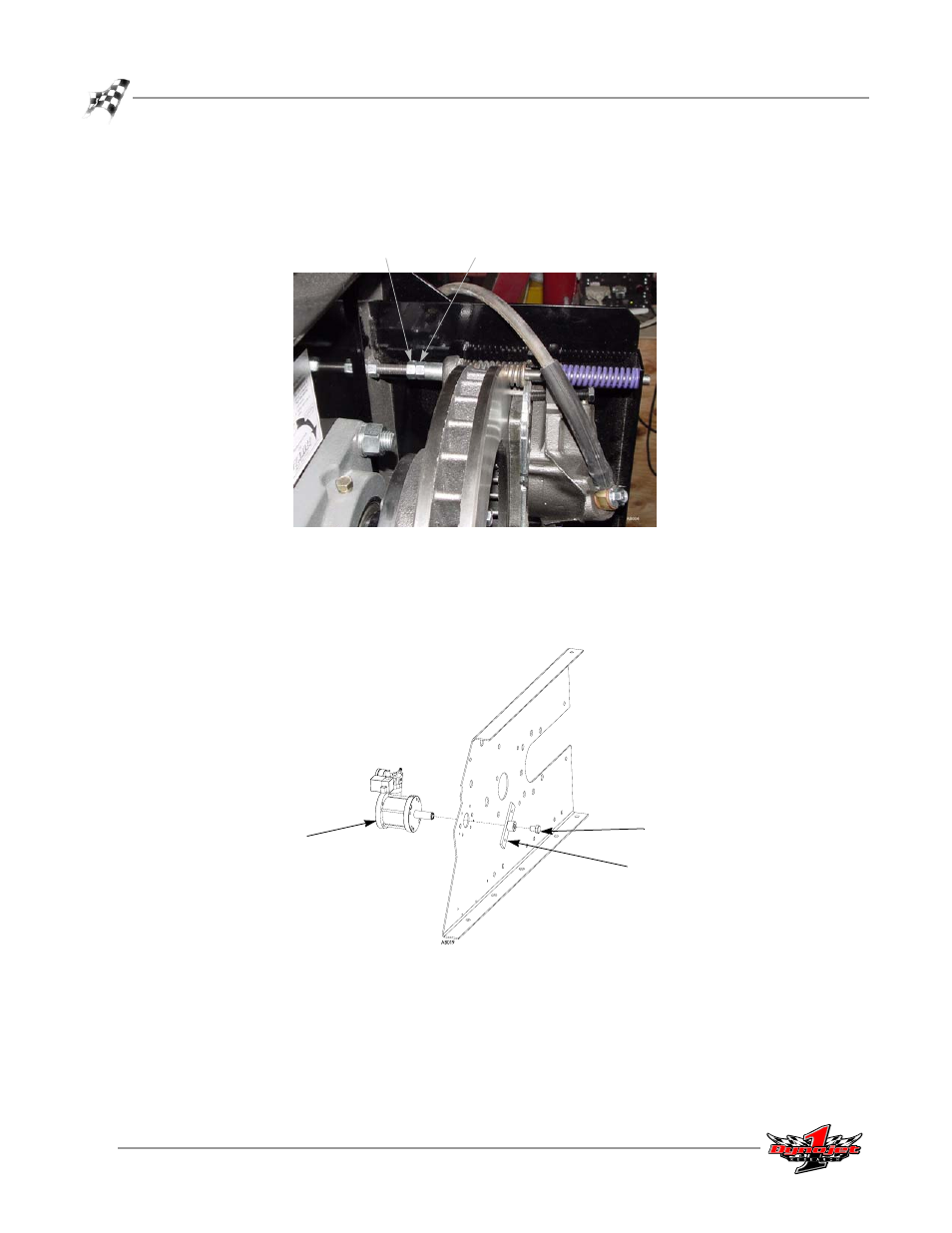

Figure 3-12: Adjust the Brake Pad Space

I

NSTALLING

THE

A

IR

C

YLINDER

AND

M

ASTER

C

YLINDER

A

SSEMBLY

1

With the air cylinder on the inside of the dyno frame and the mounting plate on
the outside, secure the air cylinder with the 1/2-20 x 3/4-inch bolt.

Figure 3-13: Install the Air Cylinder

jam nut

adjuster nut

bolt

air cylinder

mounting plate

cut away view of

dyno side panel
