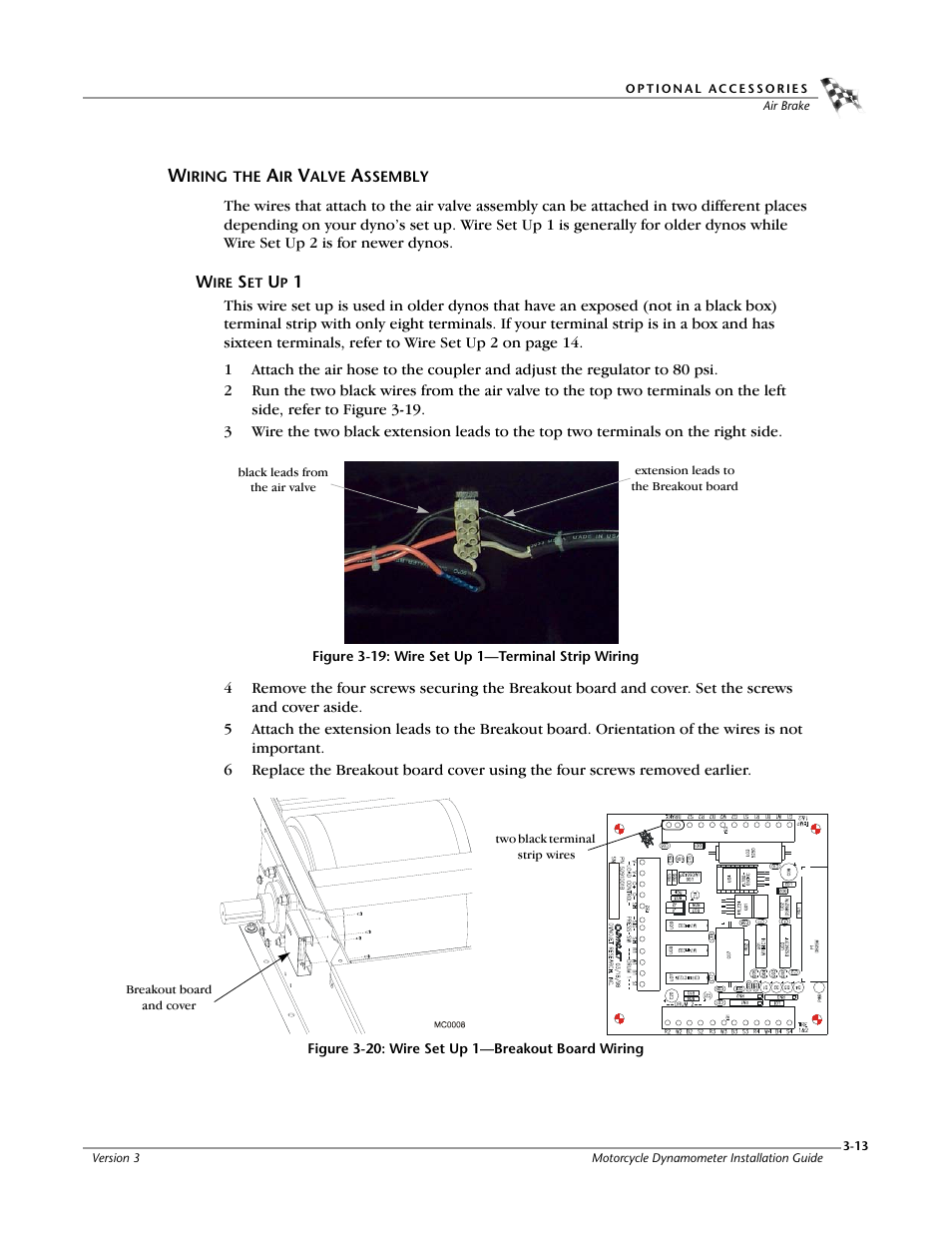

Wiring the air valve assembly, Figure 3-19: wire set up 1—terminal strip wiring, Figure 3-20: wire set up 1—breakout board wiring – Dynojet 200: Installation Guide User Manual

Page 43

Wiring the air valve assembly, Figure 3-19: wire set up 1—terminal strip wiring, Figure 3-20: wire set up 1—breakout board wiring | Dynojet 200: Installation Guide User Manual | Page 43 / 73 Wiring the air valve assembly, Figure 3-19: wire set up 1—terminal strip wiring, Figure 3-20: wire set up 1—breakout board wiring | Dynojet 200: Installation Guide User Manual | Page 43 / 73
