28 UG034, July 1, 2014
Figure 11 below shows all of these different interfaces on the development board.

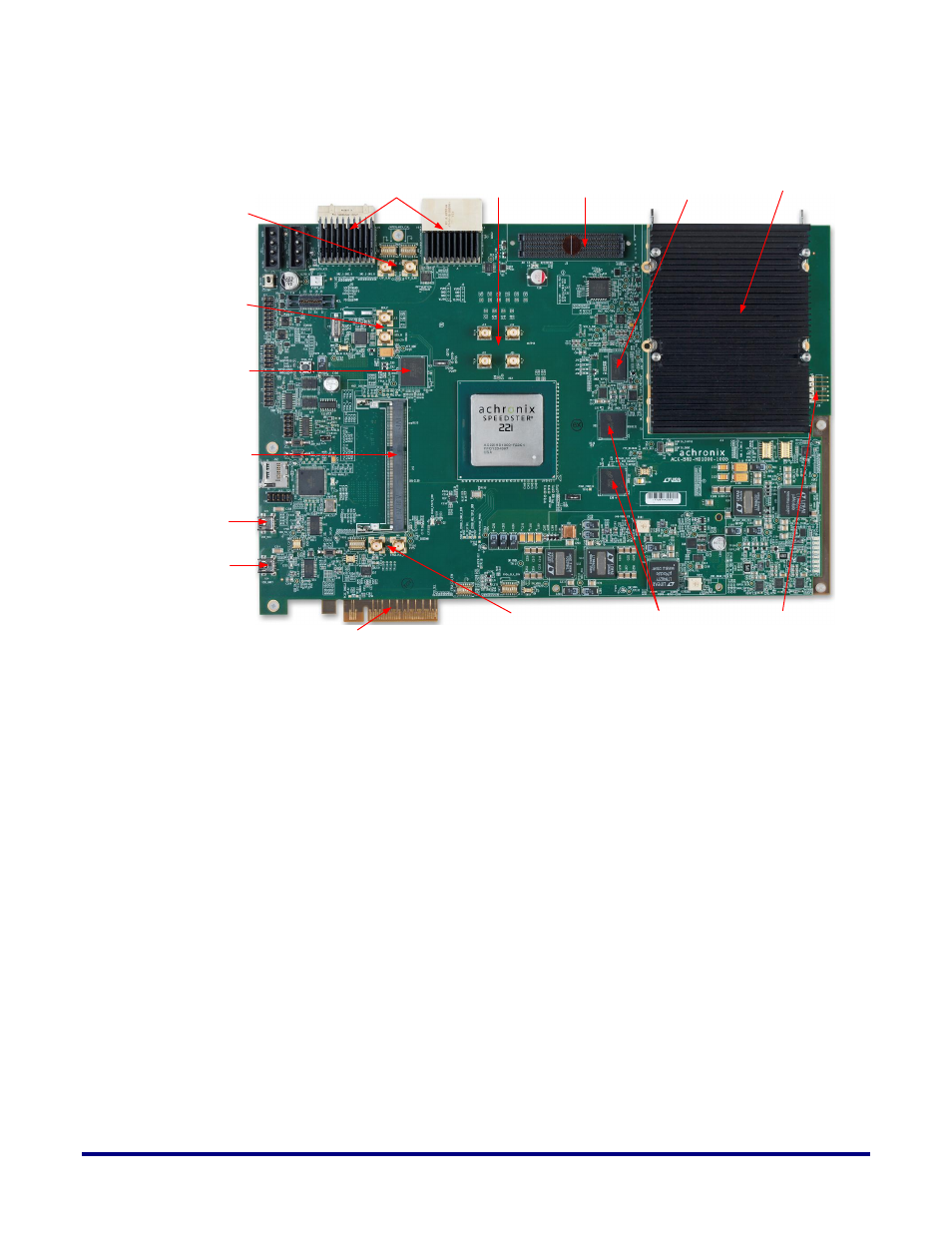

Figure 11: ACX-BRD-HD1000-100G Development Board Interface Locations
Networking and Communications Interfaces
You can develop your networking and communications applications using the following
interfaces:

CFP cage for 100GE line interface

Interlaken interface (AirMax connector pair)

FMC expansion port (HPC)
CFP Cage for 100GE Line Interface
The CFP interface provides you with the primary high-speed data interface for the board.
You can use this to evaluate the 10G/40G/100G capabilities of the HD1000. For the data path,
you have a total of 200 Gb/s bandwidth (100 Gb/s Tx and 100 Gb/s Rx). You can use the
following Ethernet modules for insertion:
1. 1 x 100 G
2. 2 x 40 G
3. 10 x 10 G
CFP Cage
Interlaken AirMax
Connector Pair
400-Pin FMC
Expansion Port
PCI Express Connector
USB Connector for
Microcontroller Interface
USB Connector for
FPGA Interface
72Mb QDRII+
Module
204-Pin DDR3
SO-DIMM
2 RLDRAM3 modules
(16Mbx36 each)
2Gb DDR3
Module
QTE
SMAs
FPGA Clk
Bank SMAs
SerDes Clk
SMAs
SerDes Tx/Rx
SMAs
Digilent
Connector
