The number “"x/x"” to the upper rig ht corner of the screen indicates total
number of recorded frames and sequence of frame being displayed.
Negative frames indicate data recorded prior to trigger event;
and positive frames indicate data recorded after trigger event.
4) Use
LEFT/RIGHT button to view PIDs of next or previous frames.
Playback … 6/16…
===================-=-4
Diagnostic Menu…
===================4/11
View Freeze Frame…
=======================

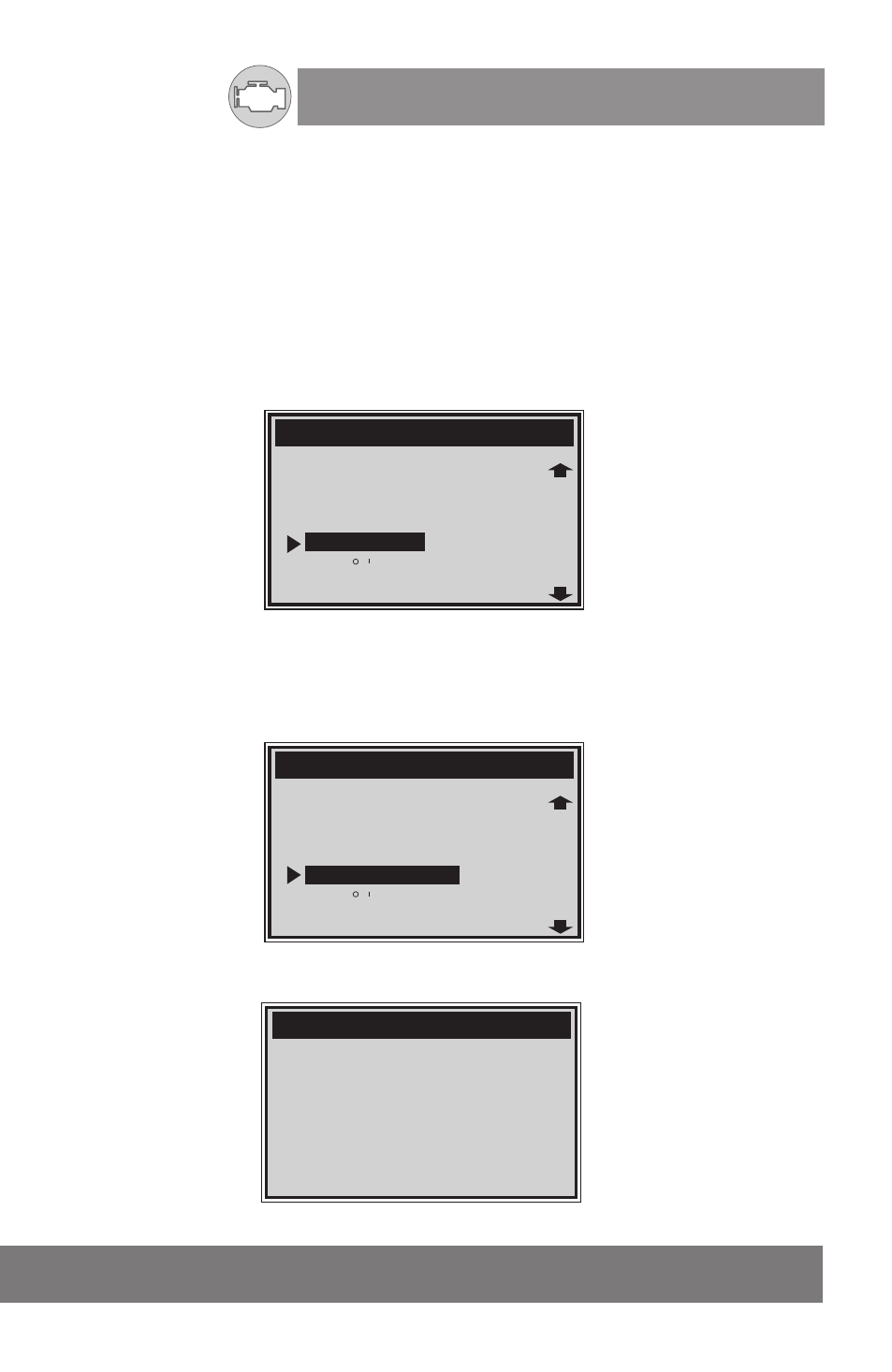

11.4 Viewing Freeze Frame Data
1) To view freeze frame data, use UP/DOWN scroll button to
select
View Freeze Frame from Diagnostic Menu and press ENTER
button.
2) Wait a few seconds while the scan tool validates the PID MAP.
Reading PID.01
- Please Wait -
DTC_CNT 6
FUELSYS1 OL
FUELSYS2 N/A
LOAD_PCT(%) 0.0
ETC( C ) -40
SHRTFT1(%) 0.0
Read Codes
Erase Codes
Live Data
View Freeze Frame
I/M Readiness
O2 Monitor Test
