About Your System | 23

AC Power LED

Condition

Solid green

Power supply is on (AC OK/DC OK) or in standby mode (90
VAC-264 VAC for 470W/750W/1100W, 180 VAC-264 VAC for
1400W)

Solid yellow

Power supply is at fault condition
(UVP/OVP/OCP/SCP/OTP/Fan Fault)

Off

Power supply is off or AC input voltage is out of normal
operating range (90 VAC-264 VAC for 470W/750W/1100W,
180 VAC-264 VAC for 1400W)

BMC Heart Beat LED

The system board provides BMC heart beat LED (D5) for BMC debugs.
When the system AC power is on, the BMC heart beat LED lights green.
When the BMC firmware is ready, the BMC heart beat LED blinks.

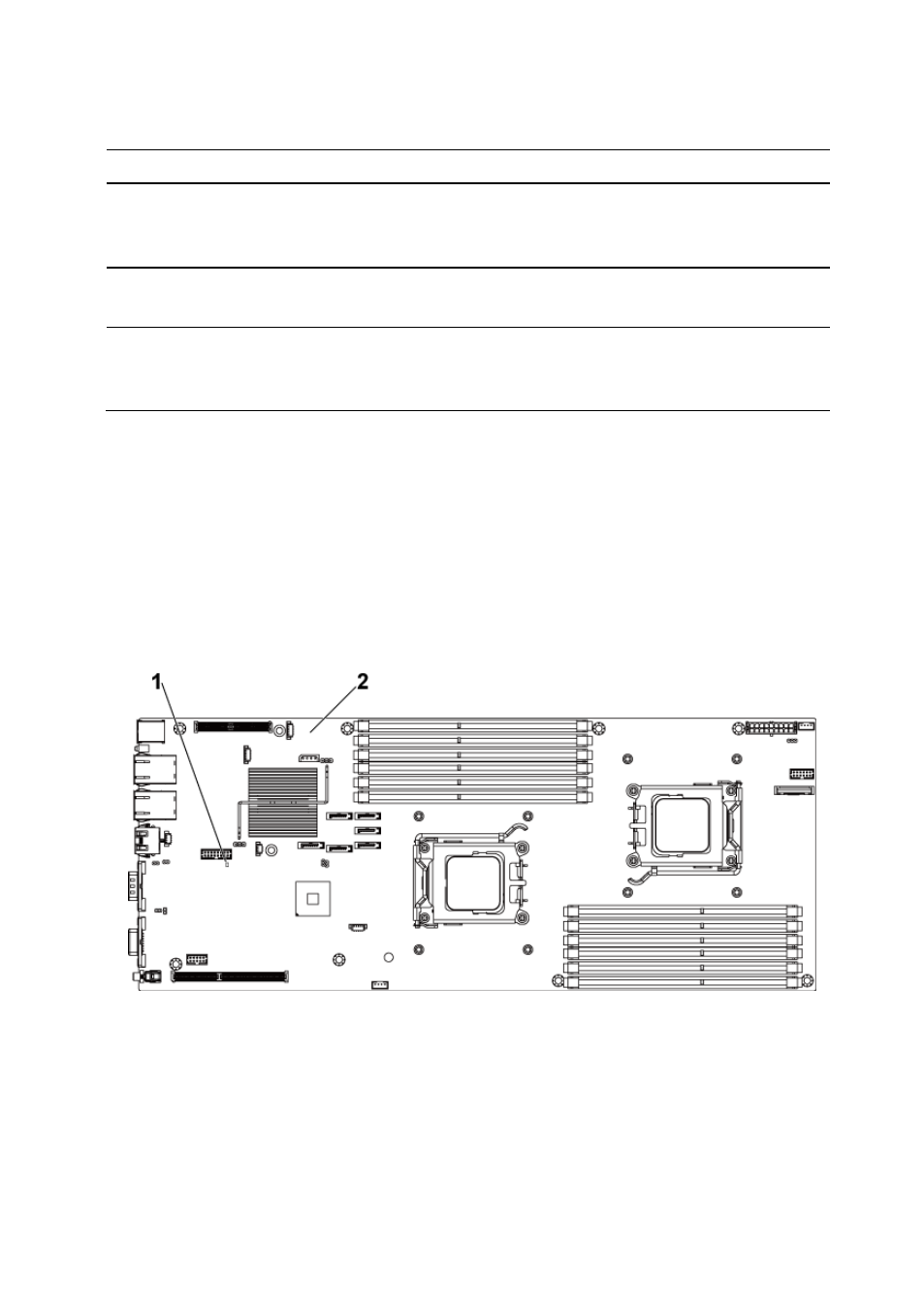

Figure 1-12. BMC Heart Beat LED

BMC heart beat LED

system board
