146 | Installing System Components

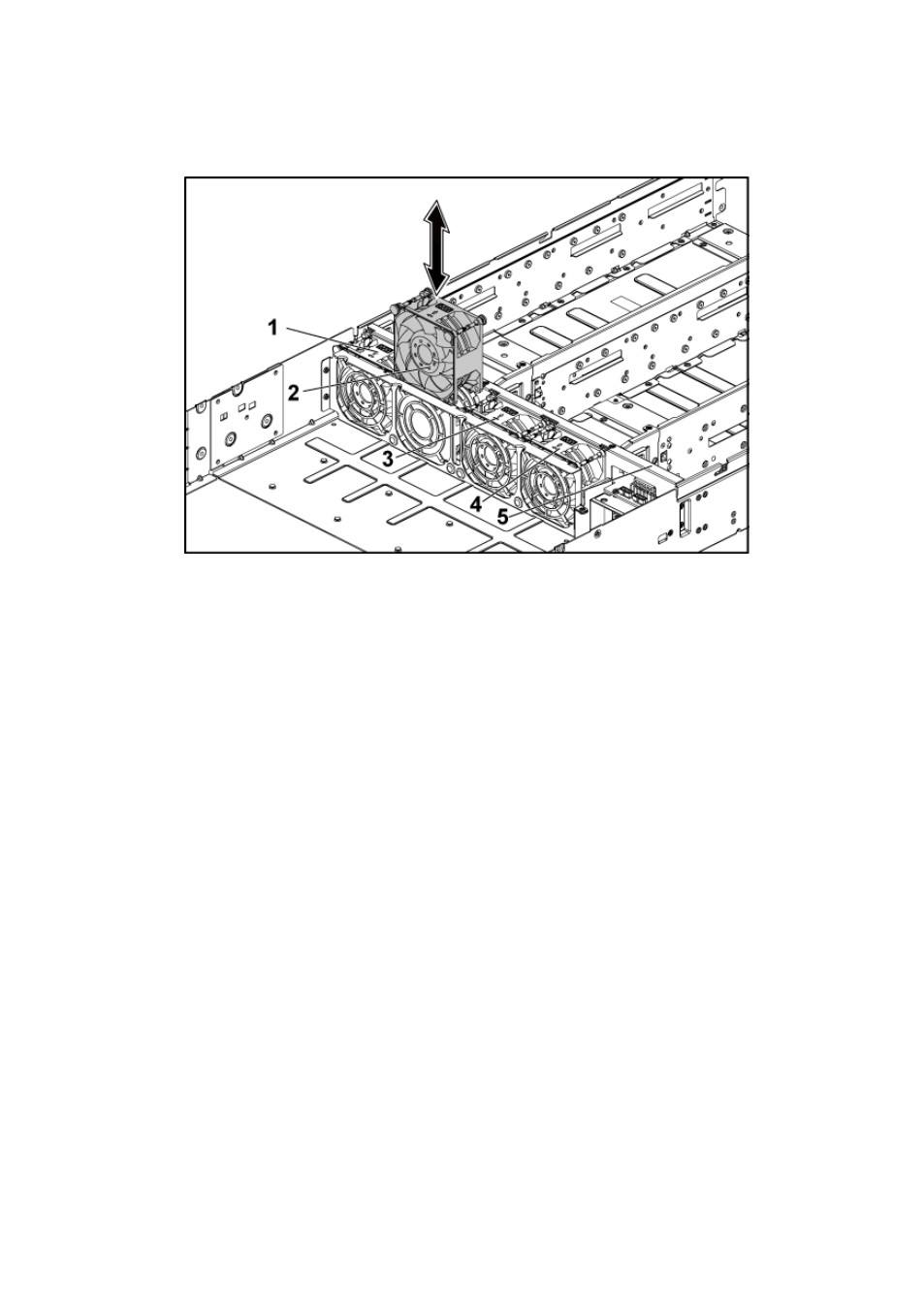

Figure 3-36. Removing and Installing a Cooling Fan 2, 3 or 4
1 cooling fan 1 2 cooling fan 2
3 cooling fan 3 4 cooling fan 4
5 cooling-fan cage
5 To completely remove the cooling fan 1, please follow step 6 to 8.
6 First lift the cooling fan 1 out of the cooling fan brackets. See Figure 3-
37.
7 Remove the screws that secure the short cooling-fan bracket to the
chassis, and then lift the short cooling-fan bracket out of the chassis.
See Figure 3-37.
Note the cooling fan 1 cable which is routed under the short cooling-
fan bracket.
8 Lift the cooling fan 1 with the cable out of the chassis.
